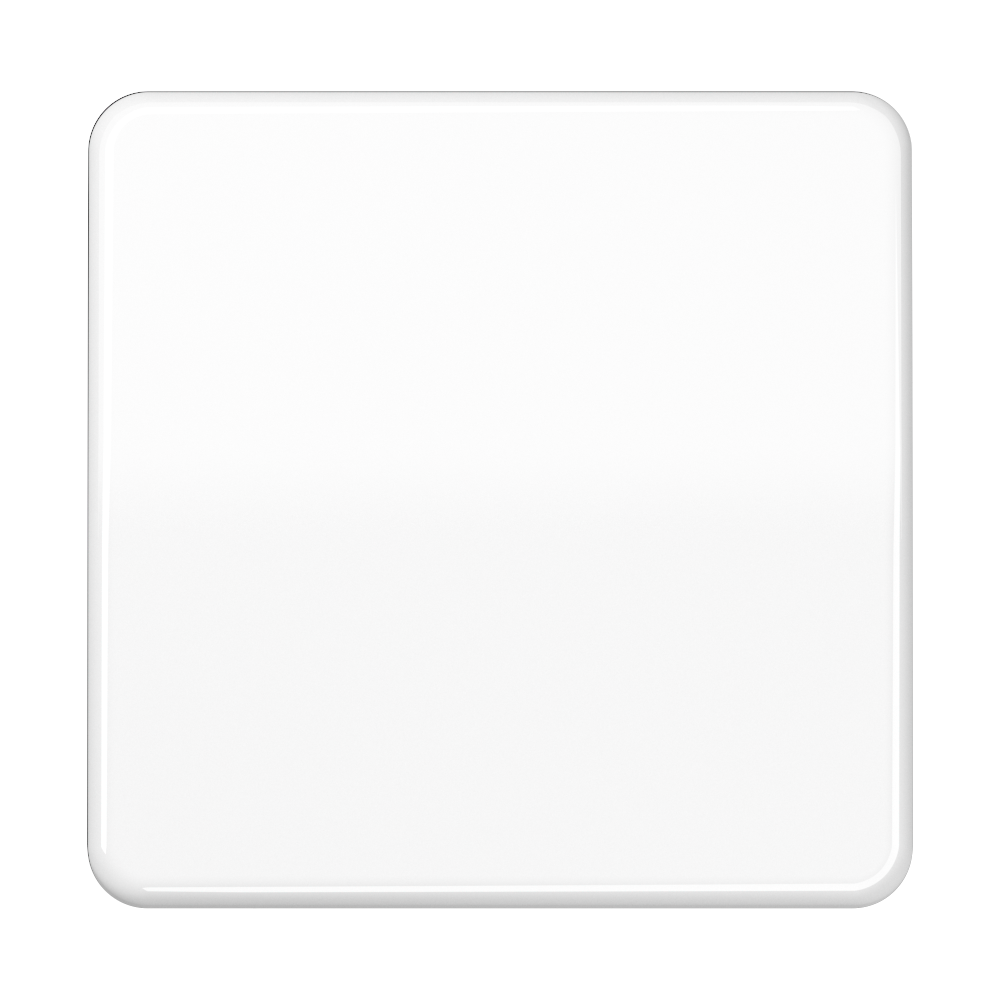

Rocker 1-gang, thermoplastic, CD range, white

CD 590 BF WW

Rocker, Thermoplastic, white

CD 590 BF WW

for switch ref.-no.: 501 U, 502 U, 503 U, 506 U, 507 U, 501-20 U, 506-20 U, 507-20 U
for push-button ref.-no.: 531 U, 532 U, 533 U, 533-2 U
for multi push-button ref.-no.: 531-41 U
in combination with multi push-button no IP44 possible

Thermoplastic (breakproof) high-gloss

Spare part:
Spare part:
holder plate ref.-no.: CD 90 HP

For illuminated inserts use rocker with lens ref.-no.: ..KO...

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual colour printing possible

Individual laser engraving possible

More articles

Information

Article number:	CD 590 BF WW
EAN/GTIN:	4011377549302
Colour:	white
Material:	thermoplastic
Width:	67 mm
Height:	67 mm

Read less... Read more...

Parsisiunčiama medžiaga

Rodyti visus parsisiuntimus

Aprašas konkursams	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
Produkto aprašymas	LT Select language Select language DE EN AE GB SG US ES EE FR IT KR LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.035 KG
Length	66 MM
Height	28 MM
Width	66 MM
Carton
Packaging unit	10 pc.
Weight	0.35 KG
Length	210 MM
Height	94 MM
Width	96 MM

Read less... Read more...

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), intermediate, 20 AX 250 V ~

1-gang switch (insert), intermediate, 20 AX 250 V ~

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), intermediate, 20 AX 250 V ~

1-gang switch (insert), intermediate, 20 AX 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX 400 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX 400 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A 250 V ~

1-gang multi push-button (insert), 1-pole, 2-way push-button with 2 x 2 NO contacts, rocker in neutral position, 10 A 250 V ~

1-gang multi push-button (insert), 1-pole, 2-way push-button with 2 x 2 NO contacts, rocker in neutral position, 10 A 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX 250 V ~

1-gang push-button, 1-pole, 1-way NO contact with separate contacts for indicator light, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact with separate contacts for indicator light, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX 250 V ~

Frames

Frame 1-gang, white

Frame 1-gang, white

Frame for cable duct installation 1-gang, white

Frame for cable duct installation 1-gang, white
