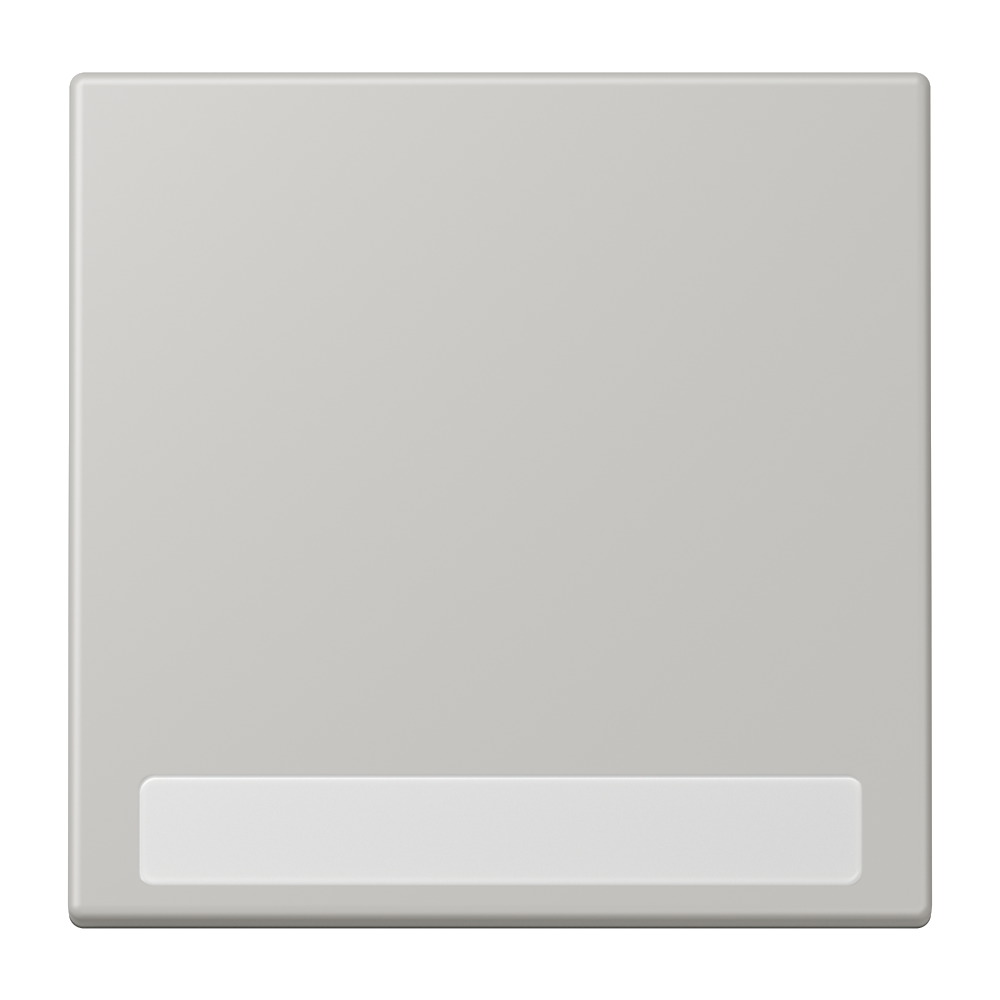

Rocker 1-gang, with inscription field, duroplastic lacquered, LS range, gris clair 31 (32013)

LC 990 NA 205

Rocker, gris clair 31 (32013)

LC 990 NA 205

for switch ref.-no.: 501 U, 502 U, 503 U, 506 U, 507 U, 501-20 U, 506-20 U, 507-20 U
for push-button ref.-no.: 531 U, 532 U, 533 U, 533-2 U
for multi push-button ref.-no.: 531-41 U
in combination with multi push-button no IP44 possible

Spare part:
Transparent cover with paper inlay ref.-no.: CD 90 NA

matt lacquered

Spare part:
Spare part:
holder plate ref.-no.: CD 90 HP

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

For illuminated inserts use rocker with lens ref.-no.: ..KO...

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

More articles

Information

Article number:	LC 990 NA 205
EAN/GTIN:	4011377290587
Colour:	gris clair 31
Material:	duroplastic lacquered
Width:	70 mm
Height:	70 mm

Read less... Read more...

Parsisiunčiama medžiaga

Rodyti visus parsisiuntimus

Aprašas konkursams	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
Produkto aprašymas	LT Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.049 KG
Length	82 MM
Height	45 MM
Width	82 MM
Carton
Packaging unit	10 pc.
Weight	0.617 KG
Length	235 MM
Height	92 MM
Width	175 MM

Read less... Read more...

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), intermediate, 20 AX 250 V ~

1-gang switch (insert), intermediate, 20 AX 250 V ~

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), intermediate, 20 AX 250 V ~

1-gang switch (insert), intermediate, 20 AX 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX 400 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX 400 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A 250 V ~

1-gang multi push-button (insert), 1-pole, 2-way push-button with 2 x 2 NO contacts, rocker in neutral position, 10 A 250 V ~

1-gang multi push-button (insert), 1-pole, 2-way push-button with 2 x 2 NO contacts, rocker in neutral position, 10 A 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), intermediate, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX 250 V ~

1-gang push-button, 1-pole, 1-way NO contact with separate contacts for indicator light, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact with separate contacts for indicator light, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX 250 V ~

Frames

Frame 1-gang, gris clair 31 (32013)

Frame 1-gang, gris clair 31 (32013)

Frame 1-gang, gris clair 31 (32013)

Frame 1-gang, gris clair 31 (32013)

Surface cap 1-gang, gris clair 31 (32013)

Surface cap 1-gang, gris clair 31 (32013)

Additional items

Spare parts

Transparent cover with white paper inlay

Transparent cover with white paper inlay
