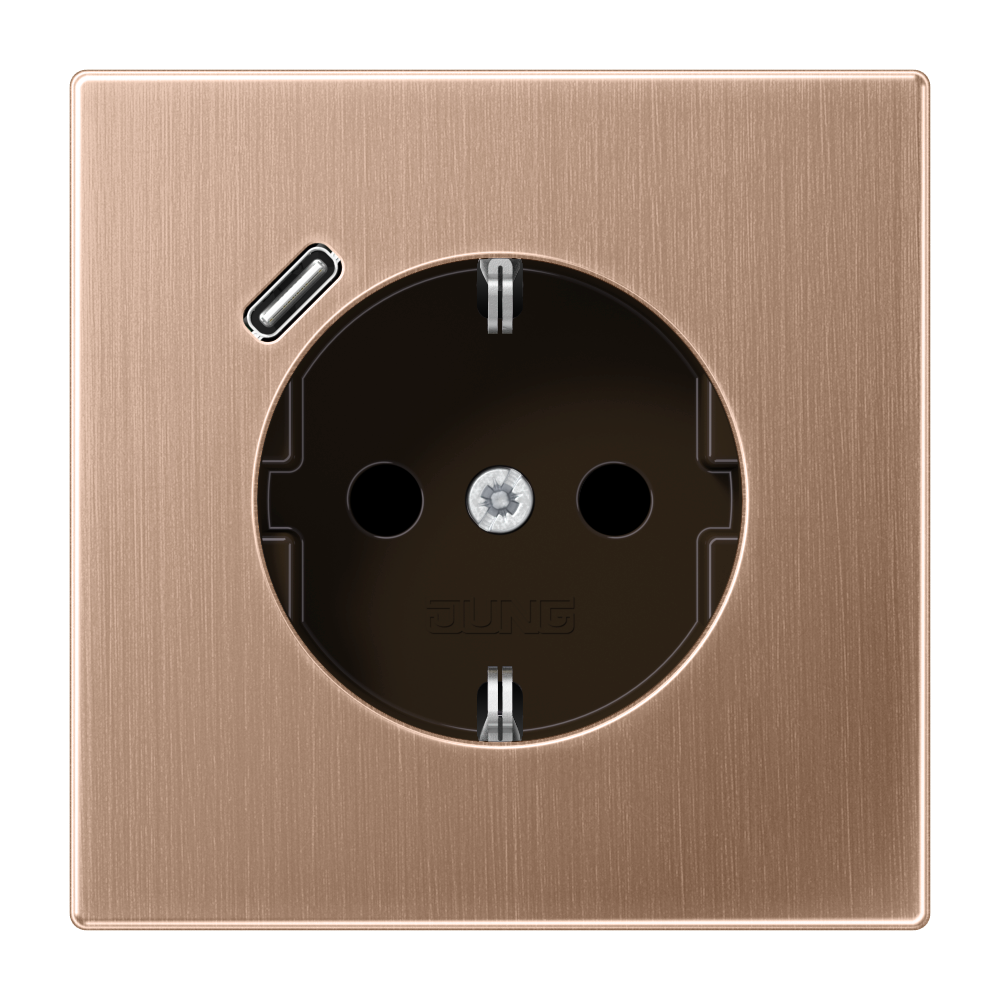

SCHUKO® socket, 16 A, with USB charger (JUNG Quick Charge®), 1 x type C, Safety Plus, LS range, brushed bronze

BRG 1520-18 C

SCHUKO® socket with USB charger (JUNG Quick Charge®), Safety Plus, brushed bronze

BRG 1520-18 C

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type C
with quick charge function (JUNG Quick Charge^®)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Metal versions

Accessories:
Frame 28 mm structure height ref.-no.: LS 98.. HBF ..
Available July 2026

Read less... Read more...

new

Individual colour printing possible

Article number:	BRG 1520-18 C
EAN/GTIN:	4011377373242
Colour:	brushed bronze
Material:	stainless steel 1.4303 X4 CrNi 18-12, PVD-coated
Type:	1 x type C
Width:	70 mm
Height:	70 mm

Read less... Read more...

Technical data

Nominalioji įtampa:	AC 220 ... 250 V ~
Tinklo dažnis:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 9 V / DC 5 V
Output current USB:	2 A / 3 A
Budėjimo režimo galia:	≤ 25 mW
Aplinkos temperatūra:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
single wire:	1.5 ... 2.5 mm²
stranded without ferrule:	1.5 ... 2.5 mm²
