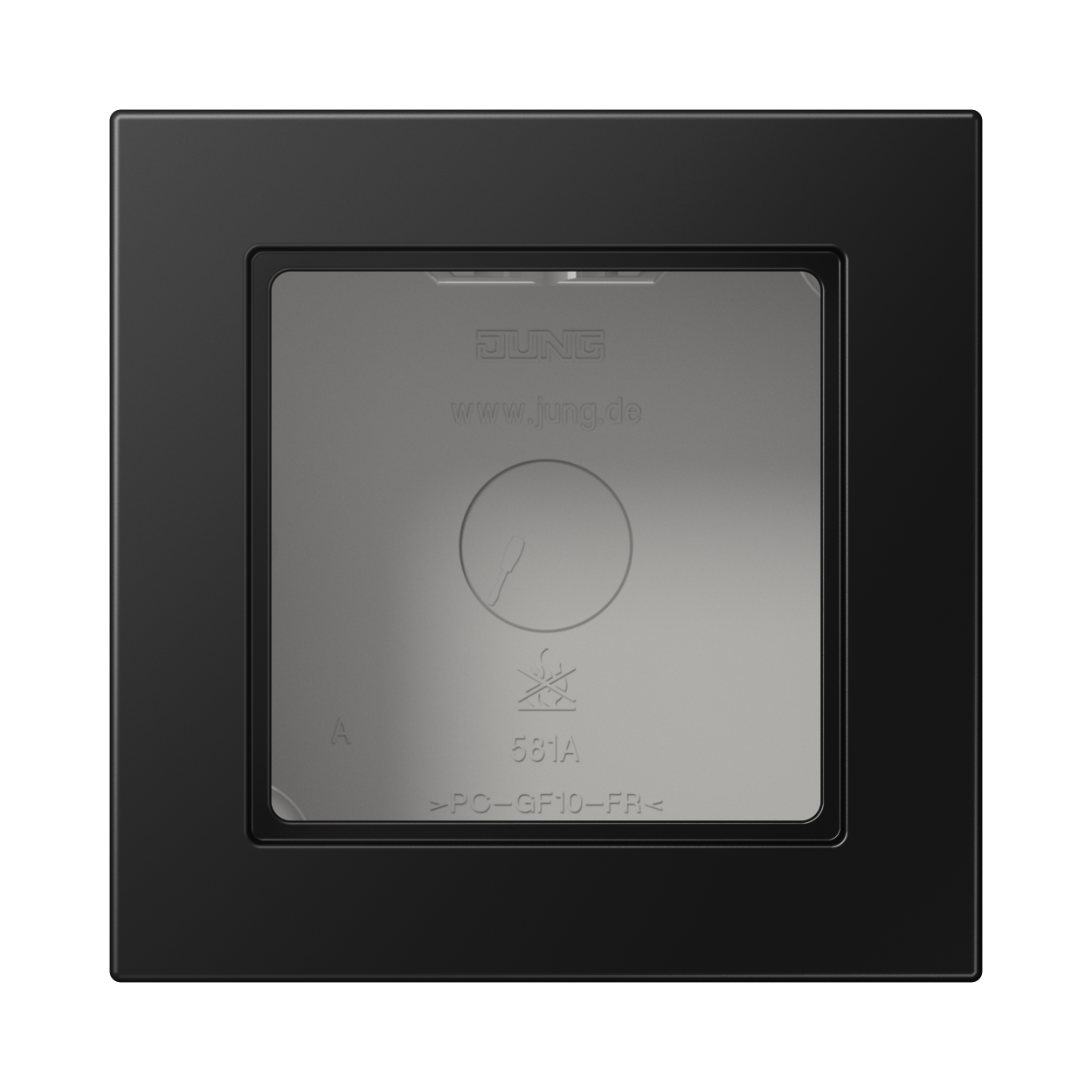

Surface cap 1-gang, A CUBE, thermoplastic lacquered, matt graphite black , vertical and horizontal installation

A 5581 BF A SWM

A 5581 BF A SWM

with integrated frame and non-flammable ground plate
for inserts with covers of the A range (except key switches ref.-no. ..15, 3-level-switch and socket for Switzerland type 13)
85 x 85 x 47 mm
Installation depth max. 34 mm

matt lacquered

Spare part:
Spare part:
mounting box ref.-no.: 581 A

Read less... Read more...

Individual colour printing possible

Article number:	A 5581 BF A SWM
EAN/GTIN:	4011377212015
Colour:	matt graphite black
Material:	thermoplastic lacquered
Version:	1-gang

Read less... Read more...

Parsisiunčiama medžiaga

Rodyti visus parsisiuntimus

Aprašas konkursams	LT Select language Select language EN DE AT AE GB SG ES EE FR IT LV NL PL PT RU UA ZH
Produkto aprašymas	LT Select language Select language DE EN AE GB SG US ES EE FR IT KR LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.085 KG
Length	84 MM
Height	48 MM
Width	84 MM
Carton
Packaging unit	1 pc.
Weight	0.126 KG
Length	116 MM
Height	94 MM
Width	94 MM
Outer carton
Packaging unit	10 pc.
Weight	1.42 KG
Length	460 MM
Height	128 MM
Width	188 MM
Palette
Packaging unit	1120 pc.
Weight	181.04 KG
Length	1200 MM
Height	1620 MM
Width	800 MM
