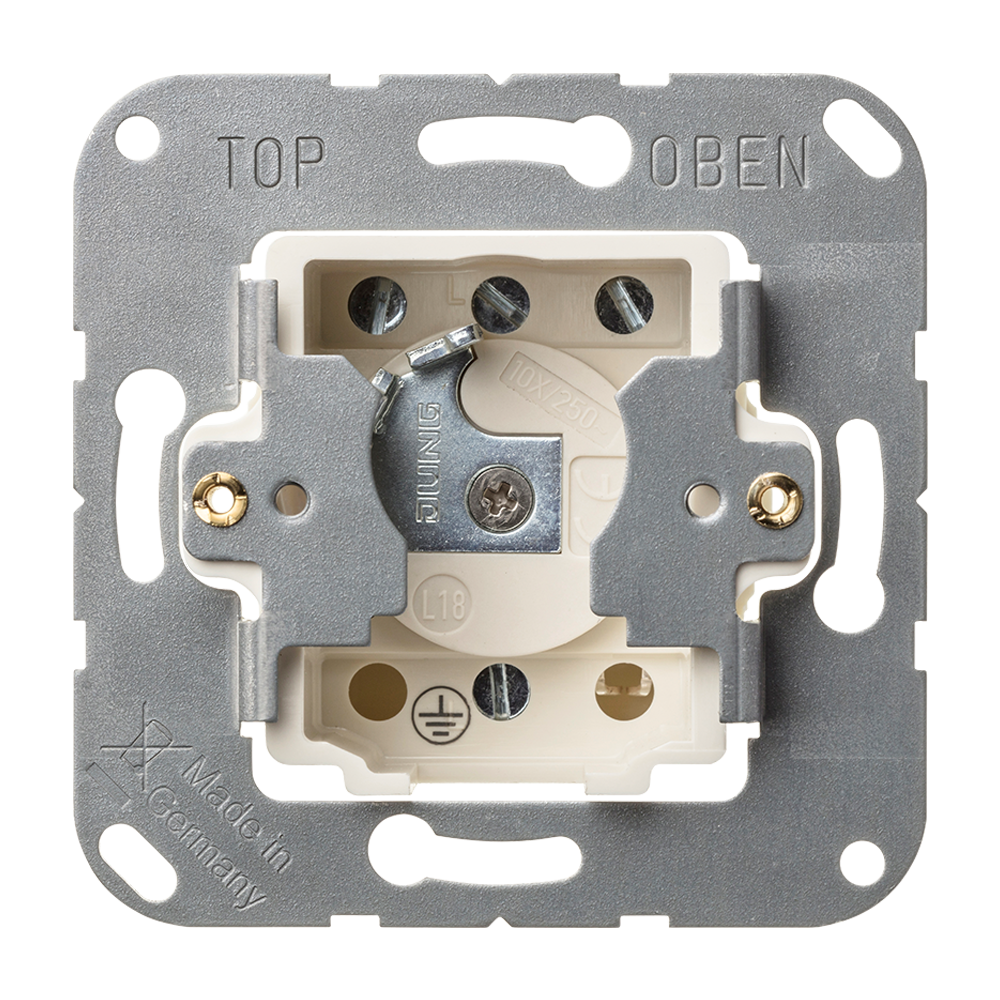

Blind key switch (insert) with protection against dismounting, 1-pole (1 motor), 10 A 250 V ~, without claws, flush-mounted

CD 104.18 WU

Blind key switch (insert) with protection against dismounting, suitable for IP44, 1-pole (1 motor), A, 250 V ~

CD 104.18 WU

10 AX 250 V~
with screw terminals for rigid and flexible wires up to 2.5 mm²

screw fixing only, without claws
for profile half cylinder with total length of approx. 40 mm, e.g. ref.-no.: 28, 28 G1
When using locking cylinder from other manufacturer, please consider, that the cylinder has key access on only one side. (Otherwise water can get through the cylinder into the switch housing. IP44 is thus not guaranteed.)

Centre plate for key switch can only be dismounted when the lock is in unlocked position.
A pre-travel prevents a quick change of direction.

Profile half cylinder (acc. to DIN 18252) for key switches
with 3 keys
different locks: ref.-no. 28
equal locks: ref.-no. 28 G1

Spare key
for 28 G1: ref.-no. 28 G1 SL

Article number:	CD 104.18 WU
EAN/GTIN:	4011377730403
Version:	1-pole (1 motor)

Operating instructions	Select language Select language DE EN NL
Operating instructions	Select language Select language DE EN ES FR
Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH
Datenblatt	Select language Select language DE EN NL

Single item
Packaging unit	1 pc.
Weight	0.078 KG
Length	70 MM
Height	40 MM
Width	70 MM
Carton
Packaging unit	1 pc.
Weight	0.108 KG
Length	84 MM
Height	70 MM
Width	84 MM
Outer carton
Packaging unit	10 pc.
Weight	1.208 KG
Length	358 MM
Height	88 MM
Width	174 MM

Blind key switch (insert) with protection against dismounting, 1-pole (1 motor), 10 A 250 V ~, without claws, flush-mounted

CD 104.18 WU
