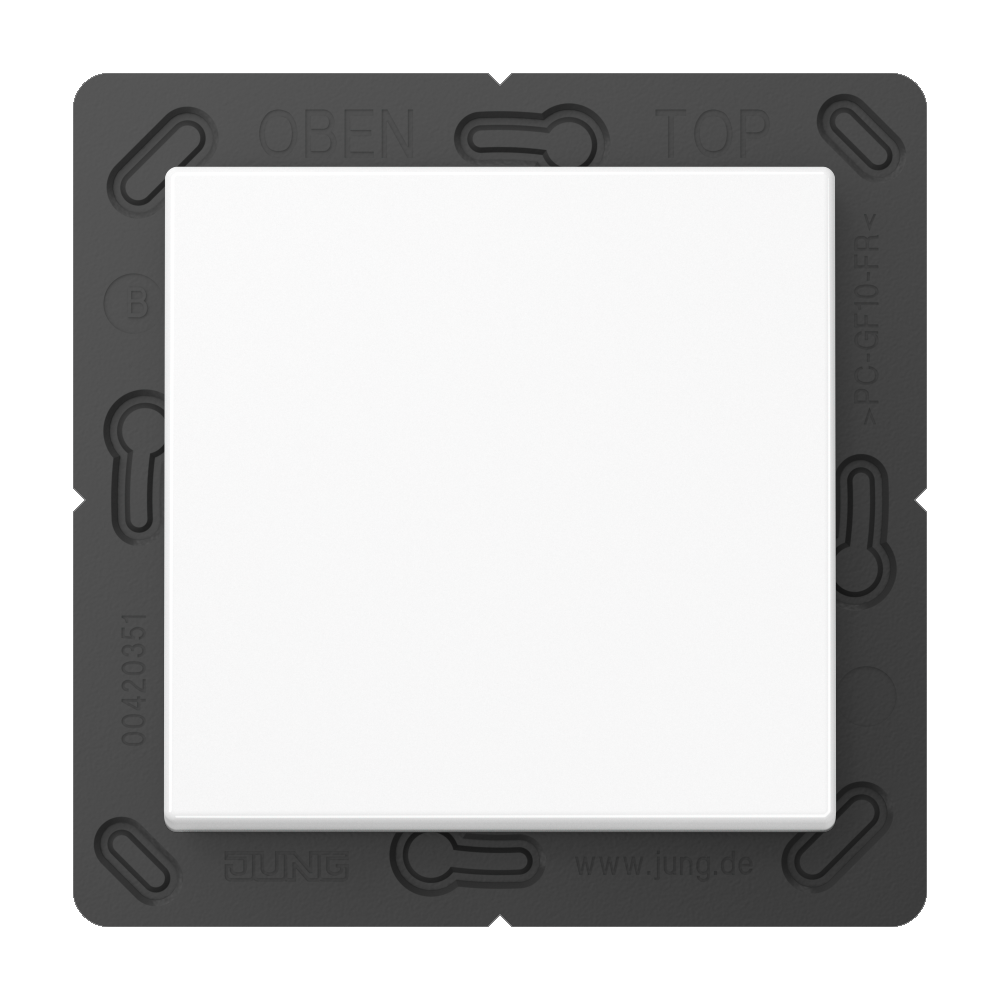

Bluetooth® Low Energy radio transmitter, 2-channel, thermoplastic, AS/A range, white

BLE A 590 WW

BLE A 590 WW

2-channel
including mounting plate, adhesive film and retaining screw

Smart switch for wireless device control using wireless standard Bluetooth^® Low Energy (BLE)
For switching, dimming and controlling individual light scenes
Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
Battery-free device without external power supply
Transmitting energy is generated from mechanical energy of actuation (energy harvesting)
Encrypted transmission with AES-128 (CBC mode) and sequence counter
Compatible with these wireless Bluetooth^® systems: Casambi, XICATO Controls, Häfele Connect, WiSilica, Wirepas, Blu2Light (Vossloh Schwabe), Aruba, Fulham, Helvar
Configuration interface: NFC Forum Type 2 Tag (ISO/IEC 14443 Part 2 + 3)
Automatic range extension (depending on the system) via BT Mesh devices connected to the mains

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Read less... Read more...

Radio frekvence:	2,402 ... 2,480 GHz
Pārraides diapazons
in free field:	up to 75 m
Pārraides diapazons ēkās:	approx. 15 m
Pārraides jauda:	4 dBm / 2.5 mW
Apkārtējās vides temperatūra:	−5 ... +45 °C
Storage/transport temperature:	−25 ... +65 °C
Atmospheric humidity:	0 ... 95 % (bez kondensāta veidošanās)

Read less... Read more...

Lejupielādes

Operating instructions	Select language Select language DE EN ES FI FR NL
Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH
