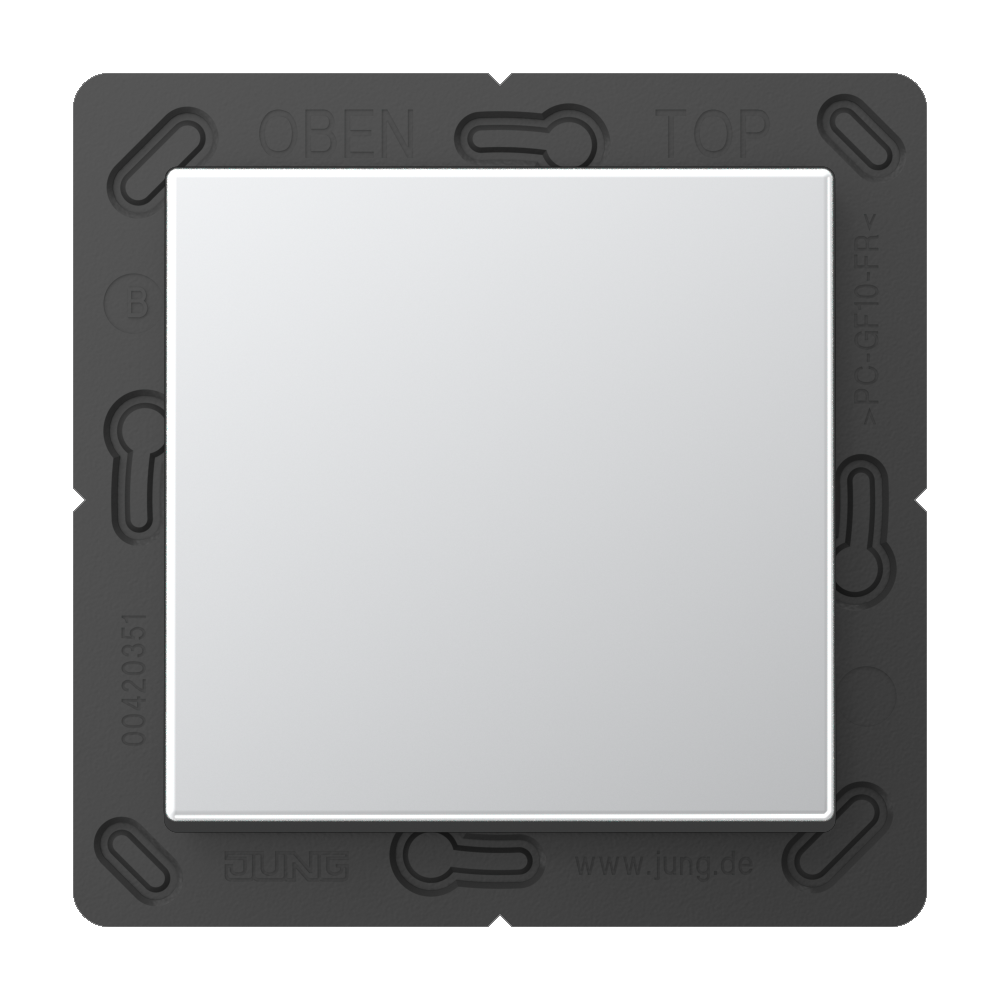

EnOcean radio transmitter, 2-channel, thermoplastic lacquered, A range, aluminium

ENO A 590 AL

ENO A 590 AL

2-channel
including mounting plate, adhesive film and retaining screw

Paredzētais pielietojums

Radio transmitter for the transmission of switching, dimming or shutter commands to radio receivers of the EnOcean radio system
Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)

Produkta īpašības

Battery-free device without external power supply
Transmitting energy is generated from mechanical energy of actuation (energy harvesting)
Configuration interface: NFC Forum Type 2 Tag (ISO/IEC 14443 Part 2 + 3)
Optional: Encrypted transmission with AES-128 and sequence counter

Thermoplastic (breakproof) lacquered

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Read less... Read more...

Carrier frequency:	868 MHz (ASK)
Pārraides diapazons
in free field:	up to 300 m
Pārraides diapazons ēkās:	aptuveni 30 m
Pārraides jauda:	−1.9 dBm / 0.7 mW
Apkārtējās vides temperatūra:	−5 ... +45 °C
Storage/transport temperature:	−25 ... +65 °C
Atmospheric humidity:	0 ... 95 % (bez kondensāta veidošanās)

Read less... Read more...
