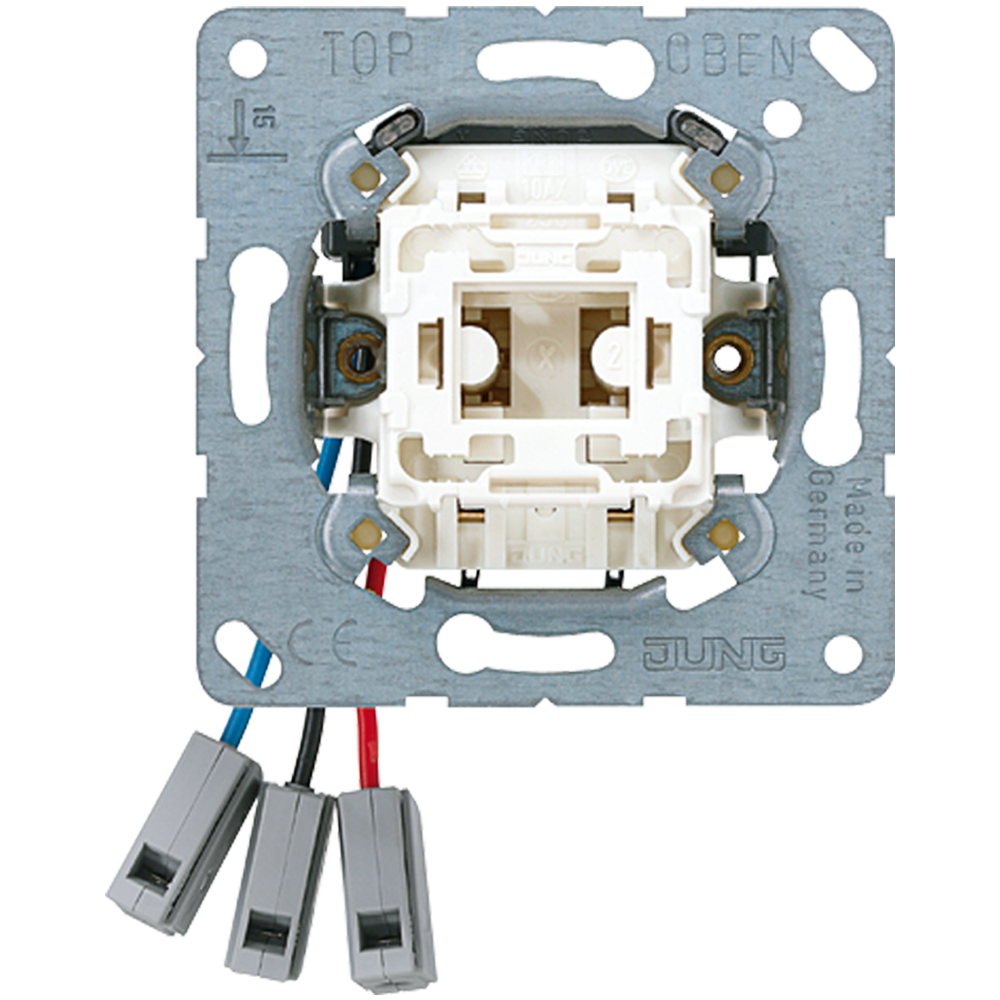

Hotel push-button 24 V (insert), corridor unit, with red and green LED lamp, 1-pole, 1-way NO contact, without claws, flush-mounted

531 KO5 EU M 24

for hotel rocker corridor unit ref.-no.: .. CU KO5 M ..
with red and green LED lamp
with screwless terminals for rigid wires up to 2.5 mm²

screw fixing only, without claws
The corridor unit indicates the switch position of the room unit.
The push-button is used to activate the bell

Article number:	531 KO5 EU M 24
EAN/GTIN:	4011377162136
Version:	1-pole, 1-way NO contact

Operating instructions	Select language Select language DE EN
Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Single item
Packaging unit	1 pc.
Weight	0.066 KG
Length	80 MM
Height	44 MM
Width	80 MM
Carton
Packaging unit	1 pc.
Weight	0.092 KG
Length	84 MM
Height	70 MM
Width	82 MM
Outer carton
Packaging unit	10 pc.
Weight	1.036 KG
Length	360 MM
Height	90 MM
Width	180 MM
Palette
Packaging unit	1440 pc.
Weight	225.28 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
