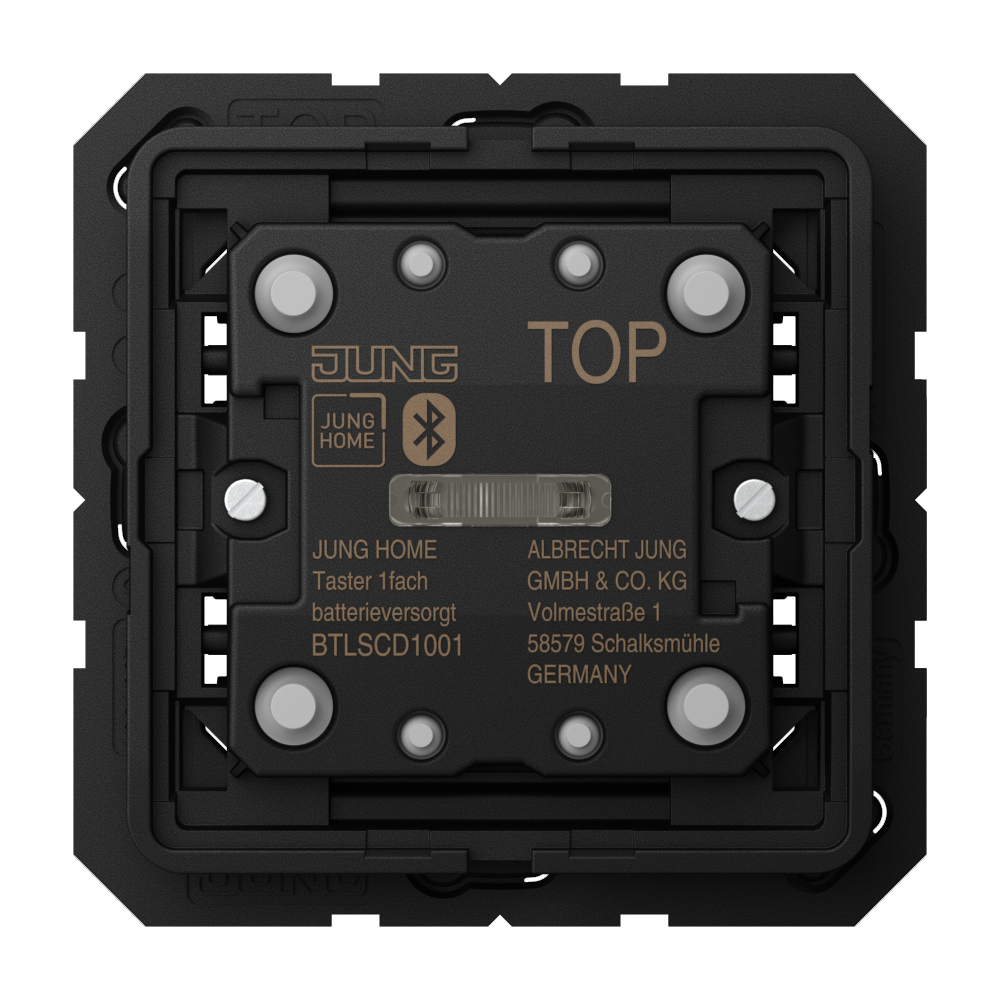

JUNG HOME push-button, battery-powered, 1-gang, CD/LS range

BT LS CD 1001

JUNG HOME push-button, battery-powered 1-gang
BT LS CD 1001
arrow-left-slim
arrow-right-slim
  • JUNG HOME push-button, battery-powered 1-gang
including mounting plate, adhesive film and fastening screw
for rockers ref.-no. .. 101 KO5 .. of the CD and LS ranges

Intended use
  • Operation of e.g. Venetian blinds, shutters, awnings, lighting or fans
  • Wireless linking with JUNG HOME system devices
  • Mounting on wall box with dimensions according to DIN 49073
  • Screw fixing on walls or adhesive fixing on smooth surfaces

Product characteristics
  • Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
  • Multi-coloured status indicator
  • Central functions: all ON/all OFF, call up scenes
  • Disabling of local operation
  • Fully encrypted wireless communication
  • Compatible with Bluetooth® Mesh Standard
  • Can be updated using JUNG HOME app
  • Battery operation with one included lithium button cell
Read less... Read more...

Information

Article number: BT LS CD 1001
EAN/GTIN: 4011377201408
Read less... Read more...

Technical data

Rated voltage:DC 3 V
Ambient temperature:−5 ... +45 °C
Storage/transport temperature:−25 ... +70 °C
Battery type:1 x lithium CR 2450 Duracell (recommended) or CR 2450N
Radio frequency:2402,0 ... 2480,0 MHz
Transmitting power:max. 10 mW, class 1.5
Transmission range
in buildings:approx. 30 m
Read less... Read more...
Operating instructions
Workbook
Tehniskā specifikācija
ES Atbilstības deklarācija
Artikeldatenblatt
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.047 KG
Length 81 MM
Height 45 MM
Width 81 MM
Carton
Packaging unit 10 pc.
Weight 0.562 KG
Length 235 MM
Height 92 MM
Width 175 MM
Read less... Read more...
