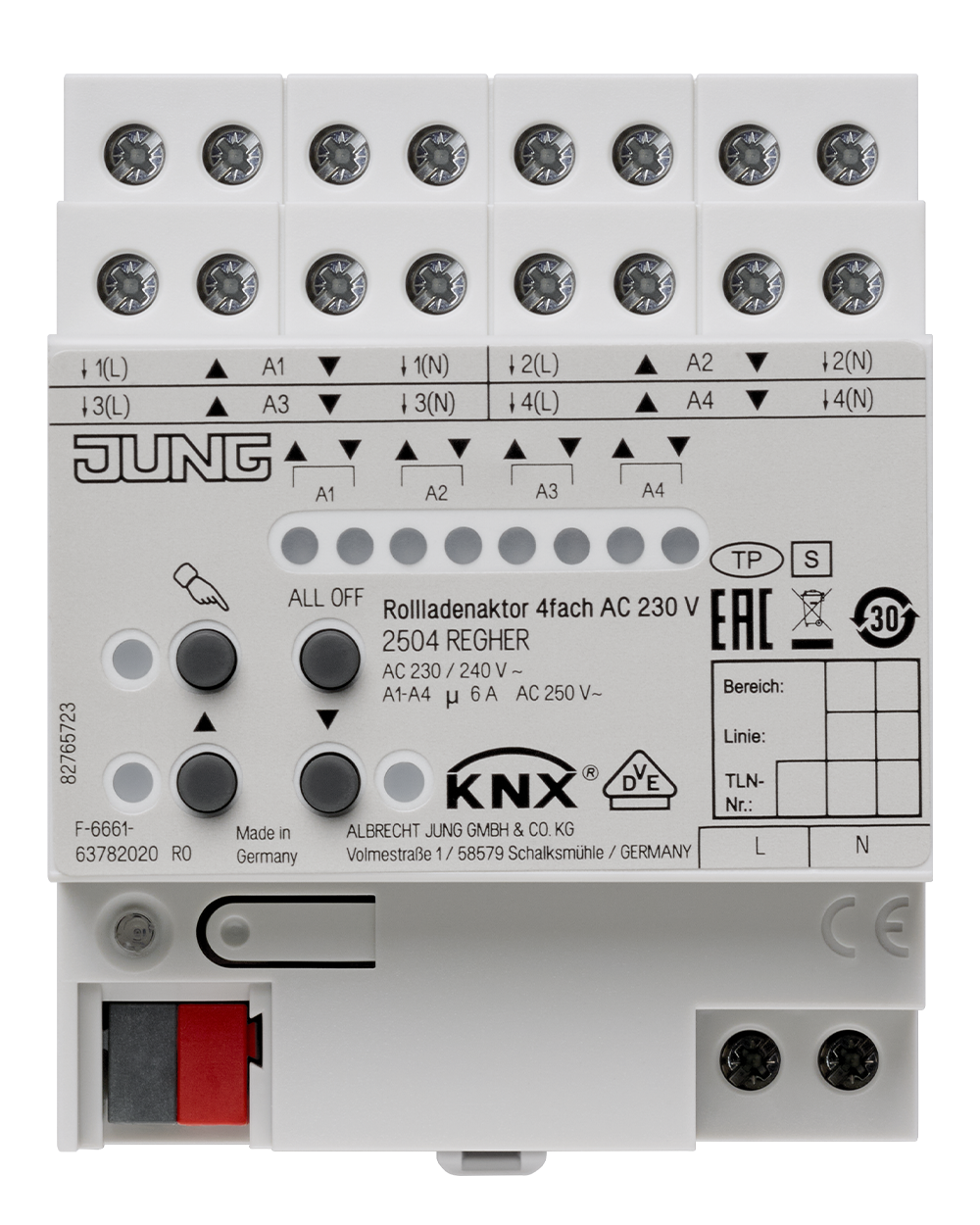

KNX shutter actuator 4-gang AC 110-230 V, rail mounting device, 4 rail units
2504 REGHER
rail mounting device, 4 rail units
with manual electronic operation and LED status indication
ETS product family: Shutter
Product type: Shutter
Produkta īpašības
with manual electronic operation and LED status indication
ETS product family: Shutter
Product type: Shutter
Produkta īpašības
- Outputs can be operated manually, construction site mode
- Blind/shutter position directly controllable
- Acknowledgement of the blind/shutter position in bus and manual operation
- Safety function: rain alarm, frost alarm, 3 independent wind alarms
- Integration into the temperature management of the building
- Disabling of individual outputs manually or via bus
- No central function
- No end position detection
- No feedback for drive movement
- No sun protection
- No scene function
- No forced position
- No fabric-stretching
Read less...
Read more...
Information
| Article number: | 2504 REGHER |
|---|---|
| EAN/GTIN: | 4011377075719 |
Read less...
Read more...
Technical data
| KNX medium: | TP 256 |
| Nominālais spriegums: | AC 110 V (−10 %) ... 240 V (+10 %) |
| Tīkla frekvence: | 50/60 Hz |
| Switching voltage: | AC 250 V ~ |
| Switching current AC 250 V: | 6 A |
| Switching current DC 12/24 V: | 6 A |
| Switching current DC 48 V: | 3 A |
| Connection, power supply and load | |
| Connection mode: | screw terminals |
| vienā vadā: | 1 x 0,5 ... 4 mm² |
| Daudzdzīslu vadītājs bez gala uzmavas: | 1 x 0,5 ... 4 mm² |
| Daudzdzīslu vadītājs ar gala uzmavu: | 1 x 0,5 ... 2,5 mm² |
| Max. blind/shutter running time: | 20 min |
| Mounting width: | 72 mm (4 rail units) |
| Apkārtējās vides temperatūra: | −5 ... +45 °C |
| Storage/transport temperature: | −25 ... +70 °C |
| Enerģijas zudums: | max. 4,5 W |
| Rated voltage KNX: | DC 21 ... 32 V SELV |
| Power consumption KNX: | typical 150 mW |
| Connection, KNX: | connection terminal |
| Approvals: | VDE |
Read less...
Read more...
Lejupielādes
| Operating instructions | |
|---|---|
| Product documentation | |
| ETS3 ab Version d + ETS4 + ETS5 | |
| CAD (dwg) | |
| CAD (stp) | |
| EPLAN Makro | |
| EPLAN Makro | |
| Tehniskā specifikācija | |
| ES Atbilstības deklarācija | |
| Artikeldatenblatt |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.385 KG |
| Length | 96 MM |
| Height | 92 MM |
| Width | 78 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.385 KG |
| Length | 96 MM |
| Height | 92 MM |
| Width | 78 MM |
