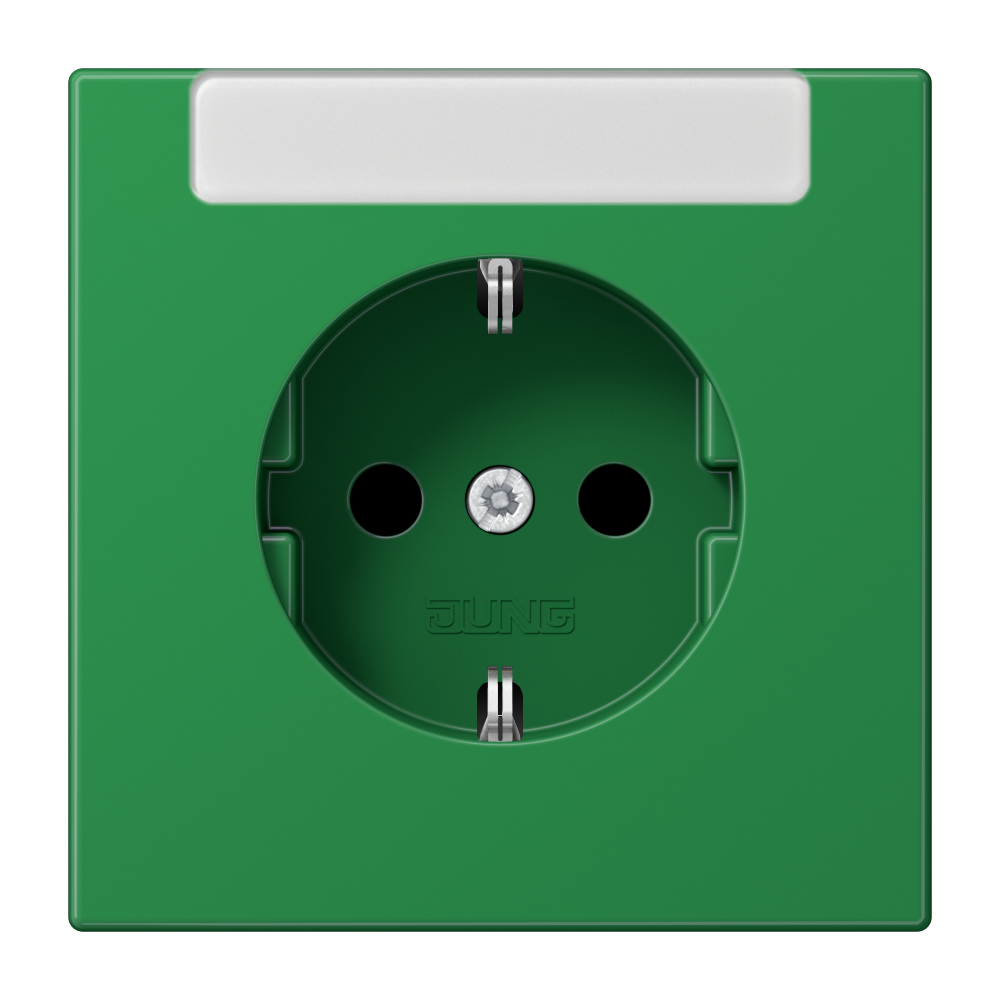

SCHUKO® socket, 16 A 250 V ~, with integrated inscription field (protected against spraying water), Safety Plus, thermoplastic, LS range, green

LS 1520 INA GN

SCHUKO® socket, Safety Plus, with integrated inscription field (protected against spraying water), thermoplastic, green

LS 1520 INA GN

with enhanced contact protection / shutter (Safety Plus)
with integrated inscription field (moisture-proof) 50 x 10 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

including inscription module ref.-no.: LS 61 INA BT
When the centre plate is removed, the inscription module remains latched onto the supporting frame.
Supporting frame, claws and claw screws are integrated into the earth protection.

Thermoplastic (breakproof) high-gloss

Spare part:
inscription module ref.-no.: LS 61 INA BT
Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	LS 1520 INA GN
EAN/GTIN:	4011377173460
Colour:	green
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm
