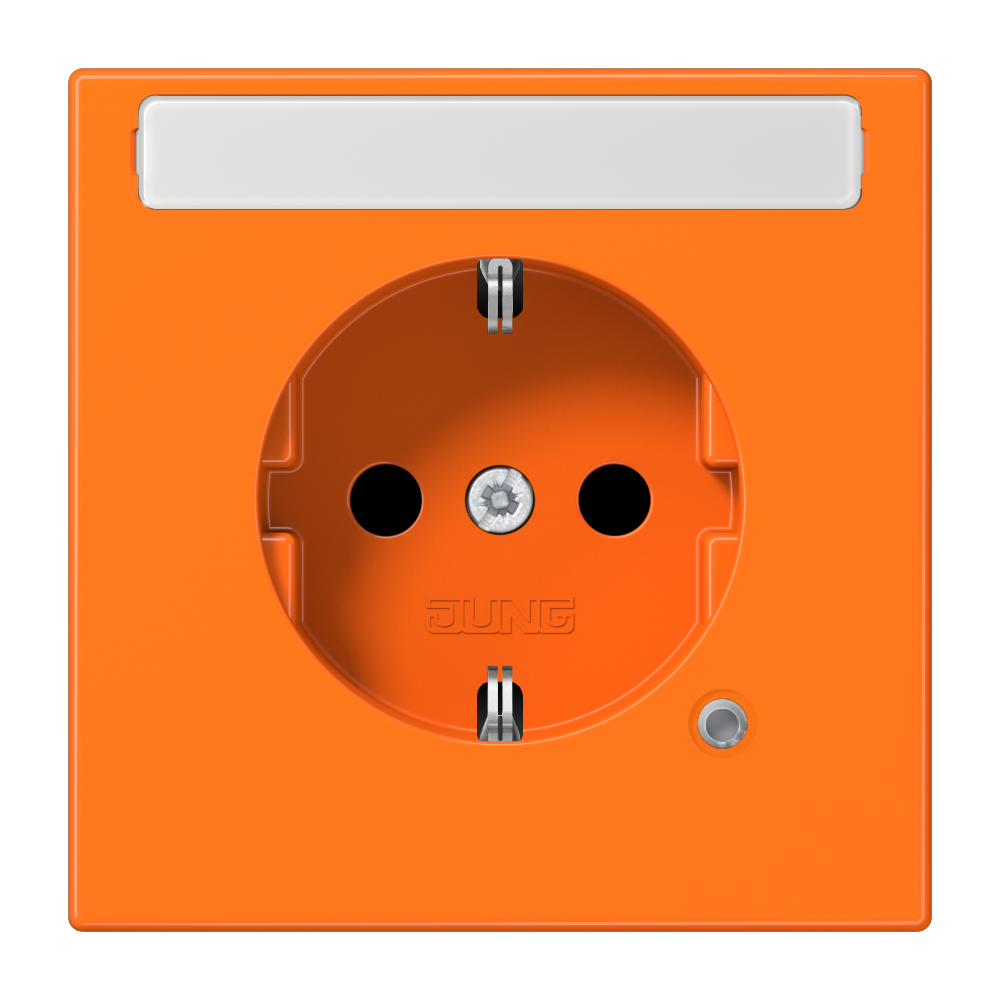

SCHUKO® socket, 16 A 250 V ~, with pilot light, with inscription field, Safety Plus, thermoplastic, LS range, orange

LS 1520 BFNAKO O

SCHUKO® socket, Safety Plus, with pilot light, with inscription field, thermoplastic, orange

LS 1520 BFNAKO O

with pilot light (green LED) ref.-no.: 193-LED GN
with enhanced contact protection / shutter (Safety Plus)
with inscription field 9 x 58 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare pilot light exchangeable from the front without disconnecting the mains
Spare part:
Transparent cover with paper inlay ref.-no.: CD 90 NA

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	LS 1520 BFNAKO O
EAN/GTIN:	4011377158634
Colour:	orange
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...
