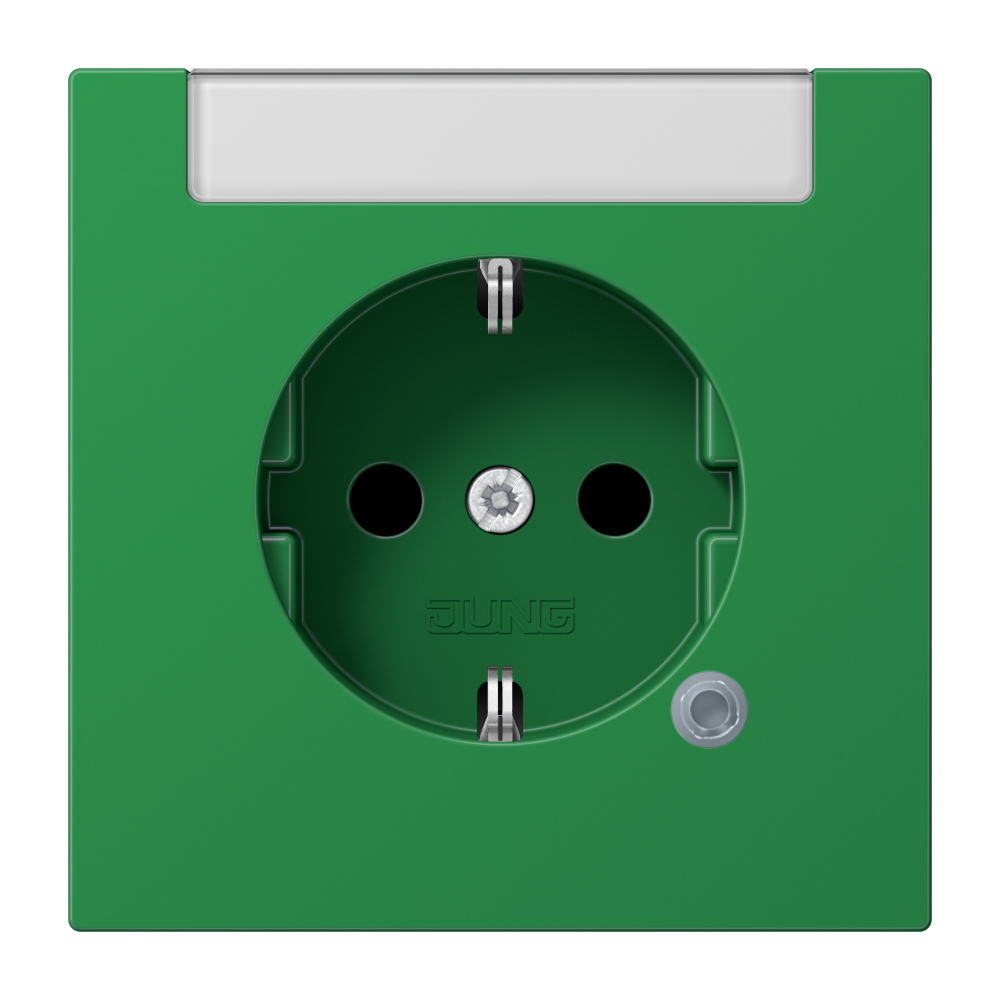

SCHUKO® socket, 16 A 250 V ~, with pilot light, with integrated inscription field (protected against spraying water), Safety Plus, thermoplastic, LS range, green

LS 1520 INA KO GN

SCHUKO® socket, Safety Plus, with pilot light, with integrated inscription field (protected against spraying water), thermoplastic, green

LS 1520 INA KO GN

with pilot light (green LED) ref.-no.: 193-LED GN
with enhanced contact protection / shutter (Safety Plus)
with integrated inscription field (moisture-proof) 50 x 10 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

including inscription module ref.-no.: LS 61 INA BT
When the centre plate is removed, the inscription module remains latched onto the supporting frame.
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare pilot light exchangeable from the front without disconnecting the mains

Thermoplastic (breakproof) high-gloss

Spare part:
inscription module ref.-no.: LS 61 INA BT
Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	LS 1520 INA KO GN
EAN/GTIN:	4011377164994
Colour:	green
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...
