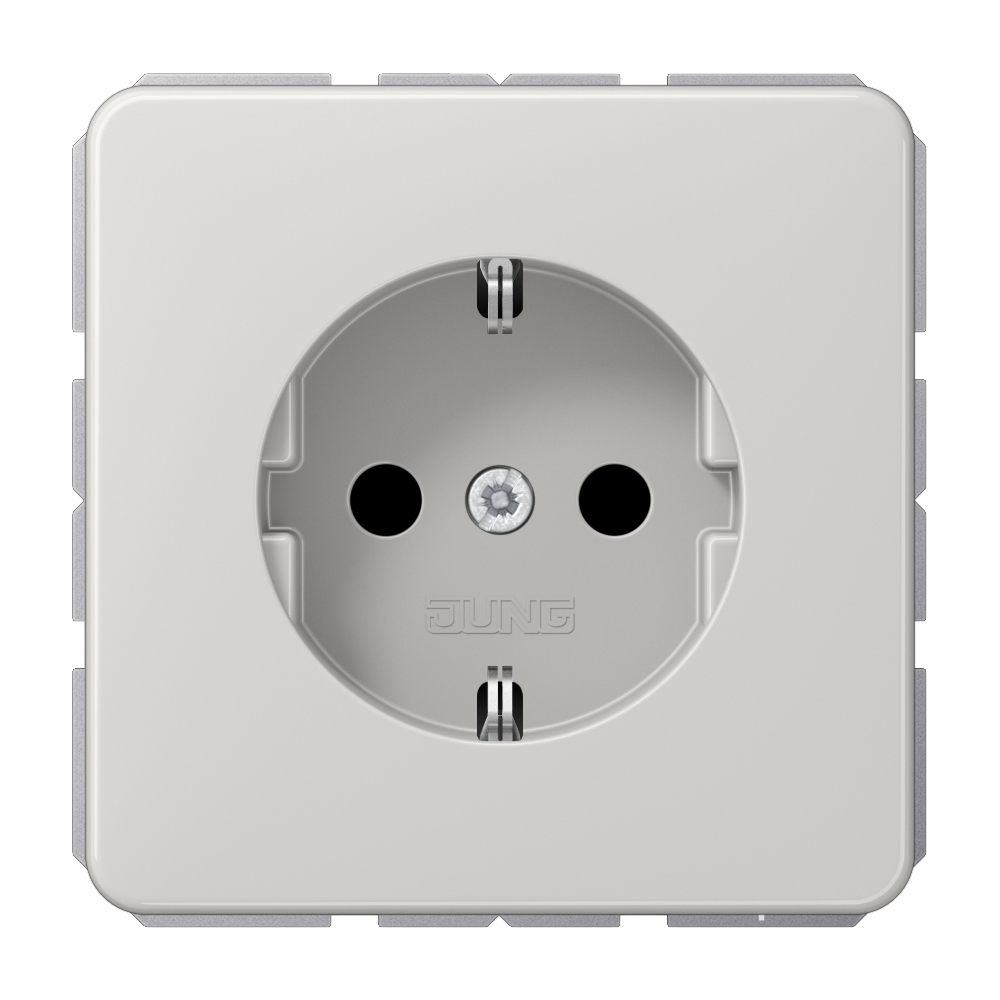

SCHUKO® socket, 16 A 250 V ~, duroplastic, CD range, light grey

CD 1520 LG

CD 1520 LG

with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Duroplastic (scratch-proof) glossy

Read less... Read more...

Individual colour printing possible

Article number:	CD 1520 LG
EAN/GTIN:	4011377059917
Colour:	light grey
Material:	duroplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	67 mm
Height:	67 mm

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.098 KG
Length	71 MM
Height	40 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	0.982 KG
Length	280 MM
Height	70 MM
Width	170 MM
Palette
Packaging unit	2240 pc.
Weight	294.768 KG
Length	1200 MM
Height	1476 MM
Width	800 MM

Read less... Read more...

Frames

CD 581 LG

Frame 1-gang, light grey

CDP 581 LG

Frame 1-gang, light grey
