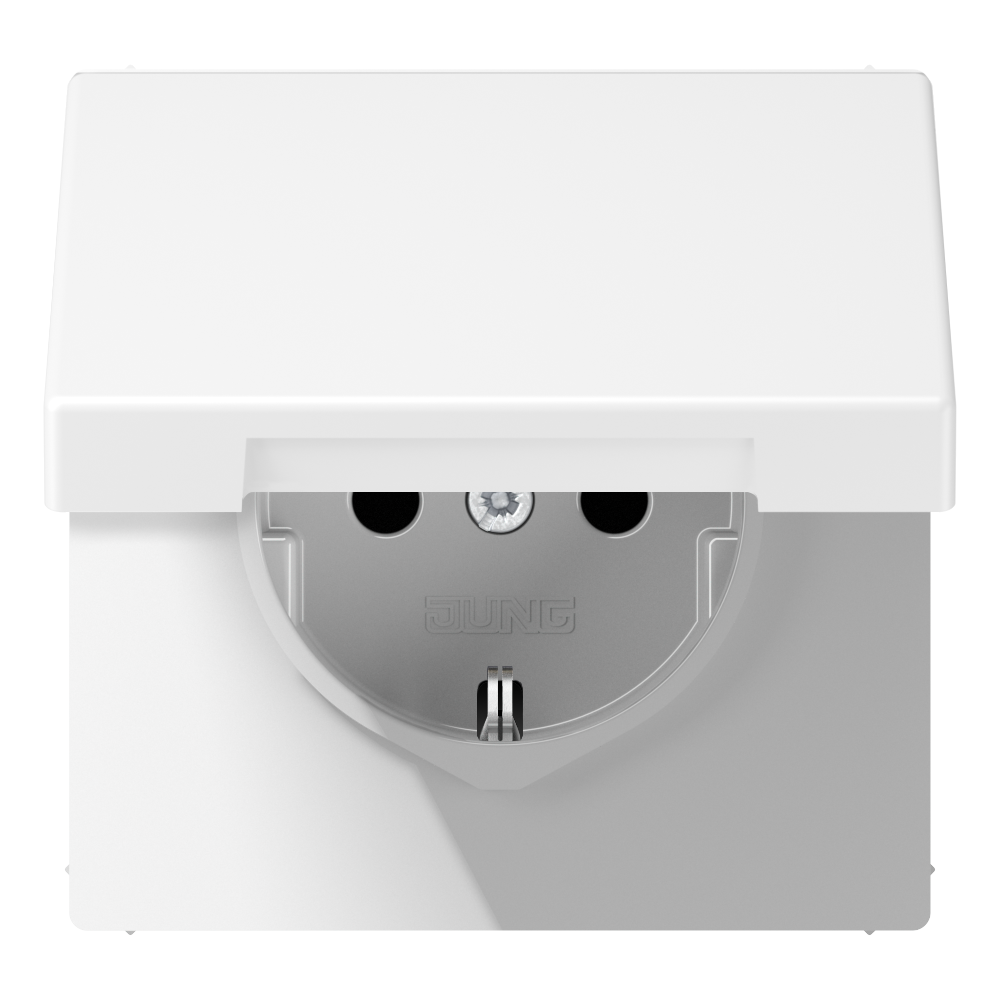

SCHUKO® socket, 16 A 250 V ~, screw terminals, Safety Plus, hinged lid, duroplastic lacquered, LS range, matt snow white

LS 1521 KIKL WWM

SCHUKO® socket, screw terminals, Safety Plus, duroplastic lacquered, matt snow white

LS 1521 KIKL WWM

with hinged lid (with spring)
with enhanced contact protection / shutter (Safety Plus)
with screw terminals for rigid and flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1521 N..

matt lacquered

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual colour printing possible

Article number:	LS 1521 KIKL WWM
EAN/GTIN:	4011377188297
Colour:	matt snow white
Material:	duroplastic lacquered
Connection:	Schraubklemmen VDE, 2,5 mm2
Width:	70 mm
Height:	70 mm

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH
Zertifikat	Select language Select language ES

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.102 KG
Length	70 MM
Height	46 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	1.142 KG
Length	288 MM
Height	78 MM
Width	176 MM
Outer carton
Packaging unit	100 pc.
Weight	12.336 KG
Length	575 MM
Height	190 MM
Width	395 MM
Palette
Packaging unit	3200 pc.
Weight	416.752 KG
Length	1200 MM
Height	1620 MM
Width	800 MM
