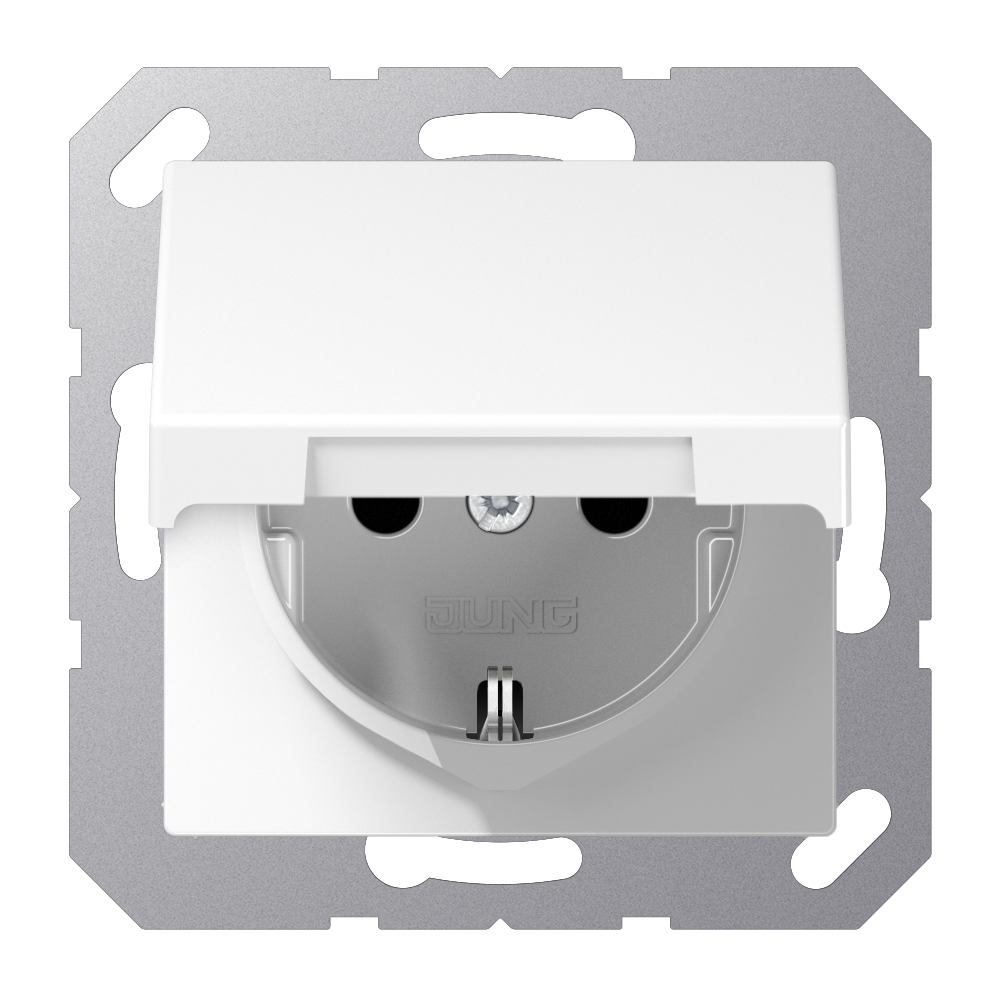

SCHUKO® socket, 16 A 250 V ~, screw terminals, Safety Plus, hinged lid, duroplastic, A range, white

A 1521 KIKL WW

SCHUKO® socket, screw terminals, Safety Plus, duroplastic, white

A 1521 KIKL WW

with hinged lid (with spring)
with enhanced contact protection / shutter (Safety Plus)
with screw terminals for rigid and flexible wires up to 2.5 mm²

Supporting frame, claws and claw screws are integrated into the earth protection.

Duroplastic (scratch-proof) glossy

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual colour printing possible

Article number:	A 1521 KIKL WW
EAN/GTIN:	4011377066878
Colour:	white
Material:	duroplastic
Connection:	Schraubklemmen VDE, 2,5 mm2
Width:	55 mm
Height:	55 mm

Read less... Read more...
