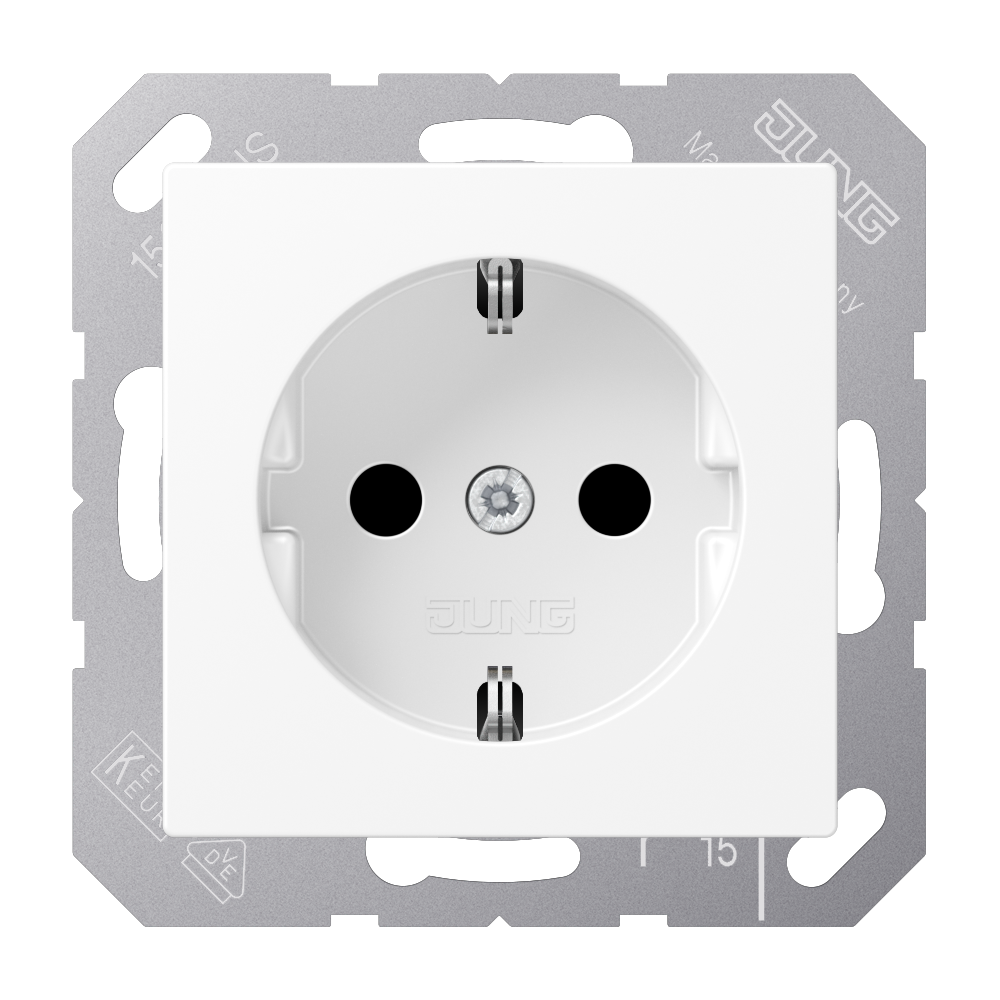

SCHUKO® socket, 16 A 250 V ~, thermoplastic lacquered, A range, matt snow white

A 1520 BF WWM

SCHUKO® socket, thermoplastic lacquered, matt snow white

A 1520 BF WWM

with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

matt lacquered

Read less... Read more...

Individual colour printing possible

Article number:	A 1520 BF WWM
EAN/GTIN:	4011377185937
Colour:	matt snow white
Material:	thermoplastic lacquered
Connection:	screwless terminals for rigid and flexible wires
Width:	55 mm
Height:	55 mm

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.077 KG
Length	71 MM
Height	41 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	0.871 KG
Length	290 MM
Height	80 MM
Width	180 MM
Outer carton
Packaging unit	200 pc.
Weight	18.135 KG
Length	575 MM
Height	360 MM
Width	395 MM
Palette
Packaging unit	3200 pc.
Weight	312.16 KG
Length	1200 MM
Height	1920 MM
Width	800 MM
