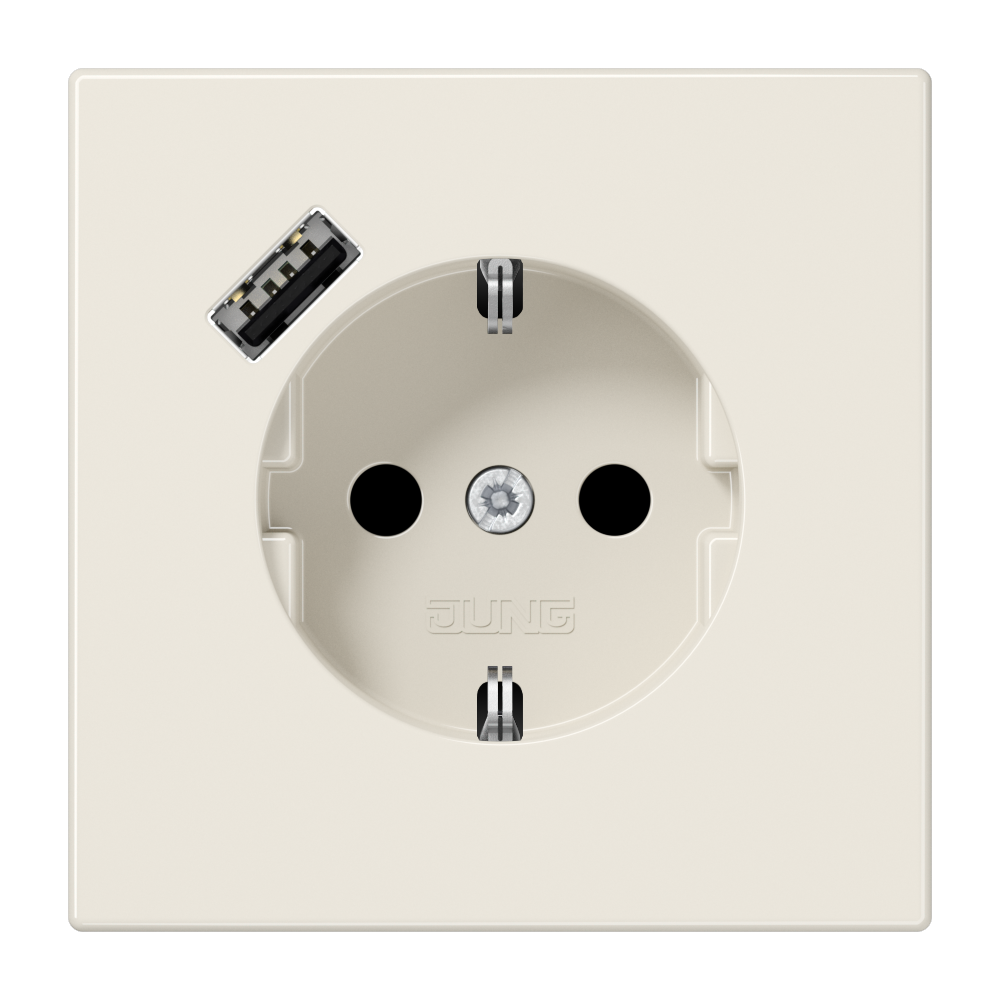

SCHUKO® socket, 16 A 250 V ~, with USB charger (JUNG Quick Charge®), 1 x type A, Safety Plus, LS range, ivory

LS 1520-18 A

SCHUKO® socket with USB charger (JUNG Quick Charge®), Safety Plus, thermoplastic, ivory

LS 1520-18 A

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A
with quick charge function (JUNG Quick Charge^®)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Thermoplastic (breakproof) high-gloss

Accessories:
Frame 28 mm structure height ref.-no.: LS 98.. HBF ..

Read less... Read more...

discontinued

Auslaufdatum 01.06.2026

Individual colour printing possible

Article number:	LS 1520-18 A
EAN/GTIN:	4011377184398
Colour:	ivory
Material:	thermoplastic
Type:	1 x type A
Width:	70 mm
Height:	70 mm
Auslaufdatum:	01.06.2026

Read less... Read more...

Technical data

Rated voltage:	AC 220 ... 250 V ~
Mains frequency:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 9 V / DC 5 V
Output current USB:	2 A / 3 A
Stand-by power:	≤ 60 mW
Ambient temperature:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
single wire:	1.5 ... 2.5 mm²
stranded without ferrule:	1.5 ... 2.5 mm²

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Operating instructions	Select language Select language DE EN ES FR NL NO
Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.151 KG
Length	85 MM
Height	73 MM
Width	85 MM
Carton
Packaging unit	1 pc.
Weight	0.151 KG
Length	85 MM
Height	73 MM
Width	85 MM
Palette
Packaging unit	1440 pc.
Weight	292.24 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
