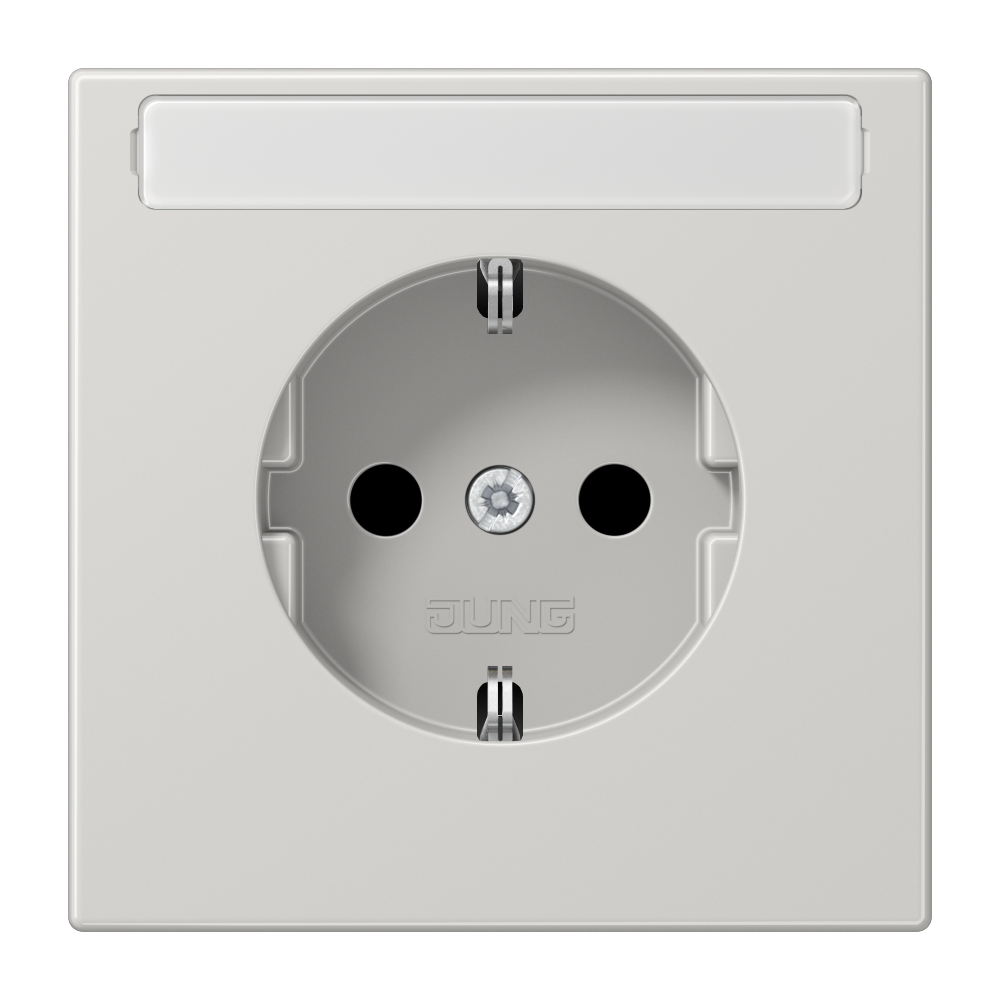

SCHUKO® socket, 16 A 250 V ~, with inscription field, duroplastic, LS range, light grey

LS 1520 NA LG

SCHUKO® socket, with inscription field, duroplastic, light grey

LS 1520 NA LG

with inscription field 9 x 58 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare part:
Transparent cover with paper inlay ref.-no.: CD 90 NA

Duroplastic (scratch-proof) glossy

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	LS 1520 NA LG
EAN/GTIN:	4011377063389
Colour:	light grey
Material:	duroplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...
