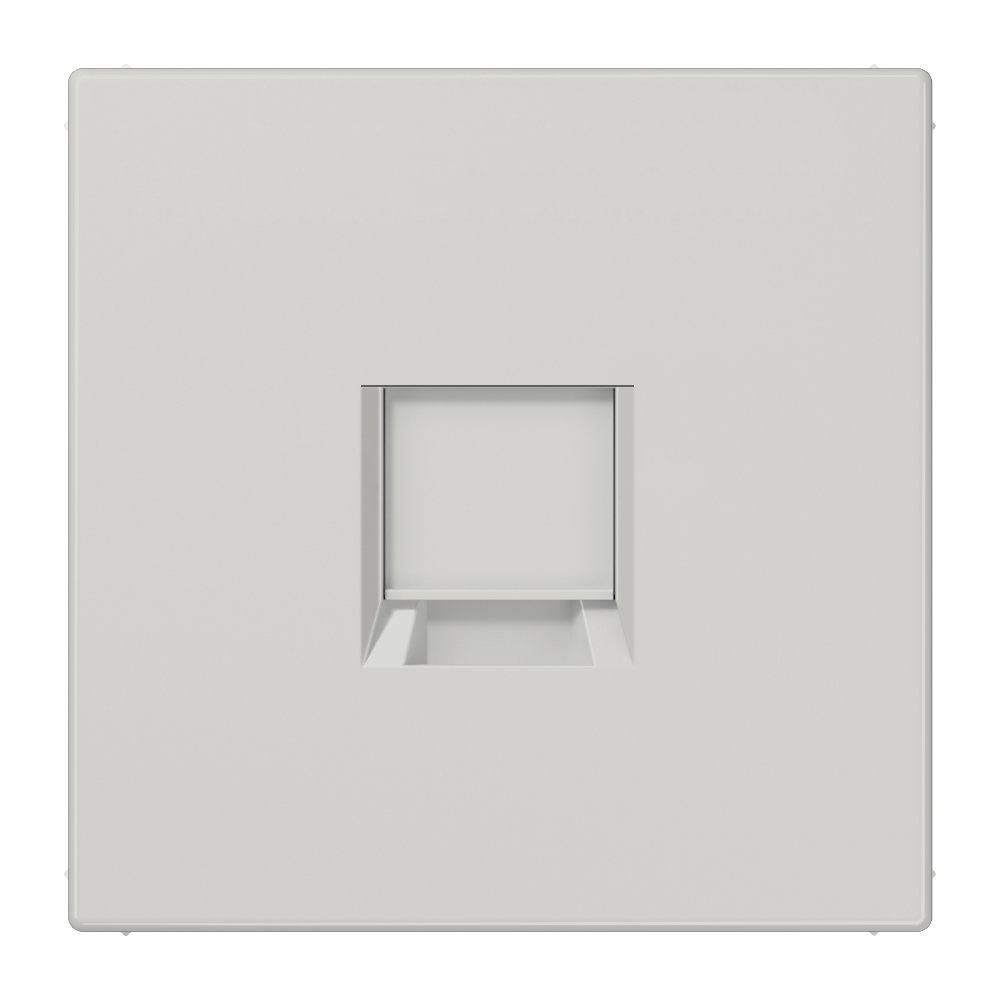

Centre plate (snap-on fixing) for modular jack sockets, 1-gang, EMT, AMP, MTRJ, thermoplastic, LS range, light grey

LS 1969-15 WE LG

Centre plate (snap-on fixing) for modular jack sockets, 1-gang, EMT, AMP, MTRJ, light grey

LS 1969-15 WE LG

(with supporting frame, screw fixing only)
shutter with spring
inner dimensions of keystone mount 14,8 x 20,7 mm
for modular jack sockets
TE Connectivity (Tyco Electronics / AMP NETCONNECT)
for cable Ø max. 10 mm:
EMT-jack, Cat. 5e, 180° ref.-no. 0-0188650-5
EMT-jack, Cat. 5e, 90° ref.-no. 0-0188650-6
for cable Ø max. 6.5 mm:
EMT-jack, Cat. 5e, 180° ref.-no. 0-0338038-1
EMT-jack, Cat. 5e, 90° ref.-no. 0-0338038-2
Toolless Jack, Cat. 3 unshielded: ref.-no. 0-1116603-x
Toolless Jack, Cat. 5e unshielded: ref.-no. 0-1116604-x,
Toolless Jack, Cat. 5e shielded: ref.-no. 0-1339015-1
Toolless Jack, Cat. 6 unshielded: ref.-no. 0-1116605-x,
Toolless Jack, Cat. 6 shielded: ref.-no. 0-1339016-1
MTRJ-LWL jack: ref.-no. 1278414-1
for 1 socket

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	LS 1969-15 WE LG
EAN/GTIN:	4011377178182
Colour:	light grey
Material:	thermoplastic
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	AE Select language Select language DE EN GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
