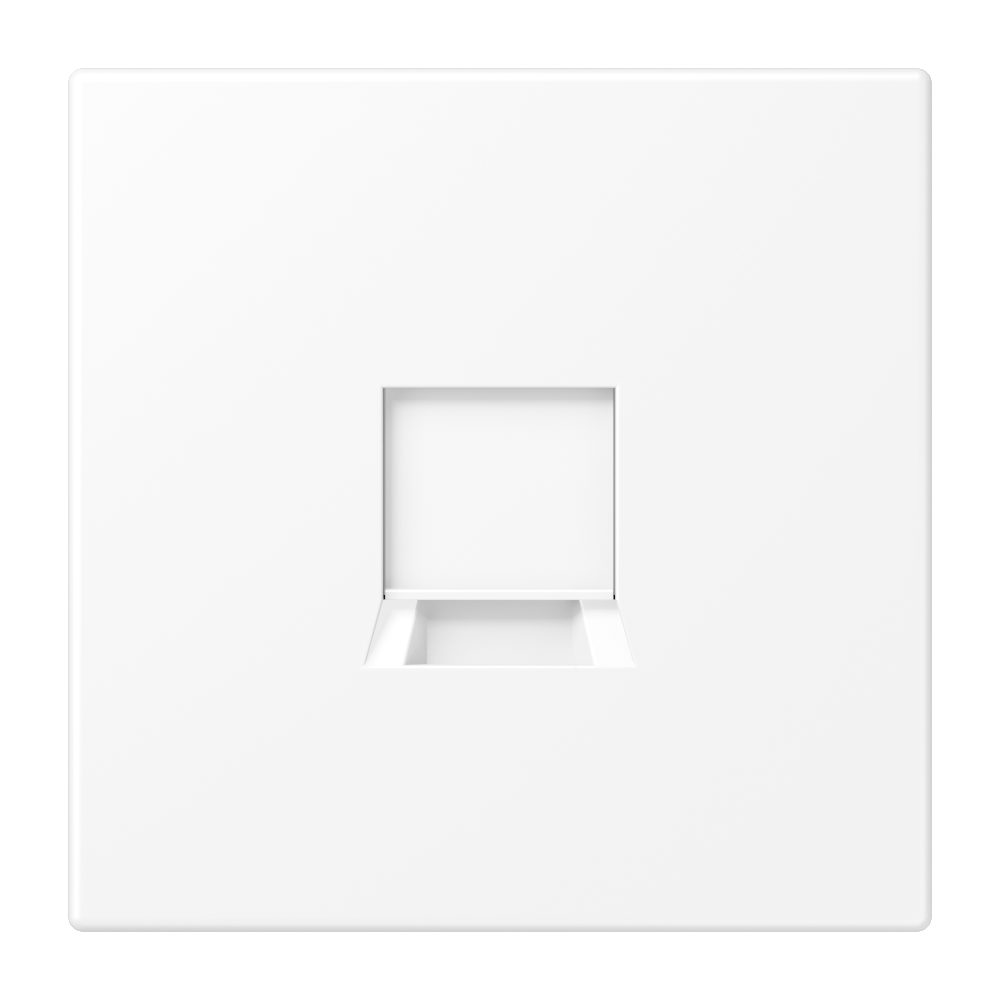

Centre plate (snap-on fixing) for modular jack sockets, 1-gang, EMT, AMP, MTRJ, thermoplastic lacquered, LS range, matt snow white

LS 1969-15 WE WWM

Centre plate (snap-on fixing) for modular jack sockets, 1-gang, EMT, AMP, MTRJ, matt snow white

LS 1969-15 WE WWM

(with supporting frame, screw fixing only)
shutter with spring
inner dimensions of keystone mount 14,8 x 20,7 mm
for modular jack sockets
TE Connectivity (Tyco Electronics / AMP NETCONNECT)
for cable Ø max. 10 mm:
EMT-jack, Cat. 5e, 180° ref.-no. 0-0188650-5
EMT-jack, Cat. 5e, 90° ref.-no. 0-0188650-6
for cable Ø max. 6.5 mm:
EMT-jack, Cat. 5e, 180° ref.-no. 0-0338038-1
EMT-jack, Cat. 5e, 90° ref.-no. 0-0338038-2
Toolless Jack, Cat. 3 unshielded: ref.-no. 0-1116603-x
Toolless Jack, Cat. 5e unshielded: ref.-no. 0-1116604-x,
Toolless Jack, Cat. 5e shielded: ref.-no. 0-1339015-1
Toolless Jack, Cat. 6 unshielded: ref.-no. 0-1116605-x,
Toolless Jack, Cat. 6 shielded: ref.-no. 0-1339016-1
MTRJ-LWL jack: ref.-no. 1278414-1
for 1 socket

matt lacquered

Read less... Read more...

Individual colour printing possible

Article number:	LS 1969-15 WE WWM
EAN/GTIN:	4011377192133
Colour:	matt snow white
Material:	thermoplastic lacquered
Width:	70 mm
Height:	70 mm
