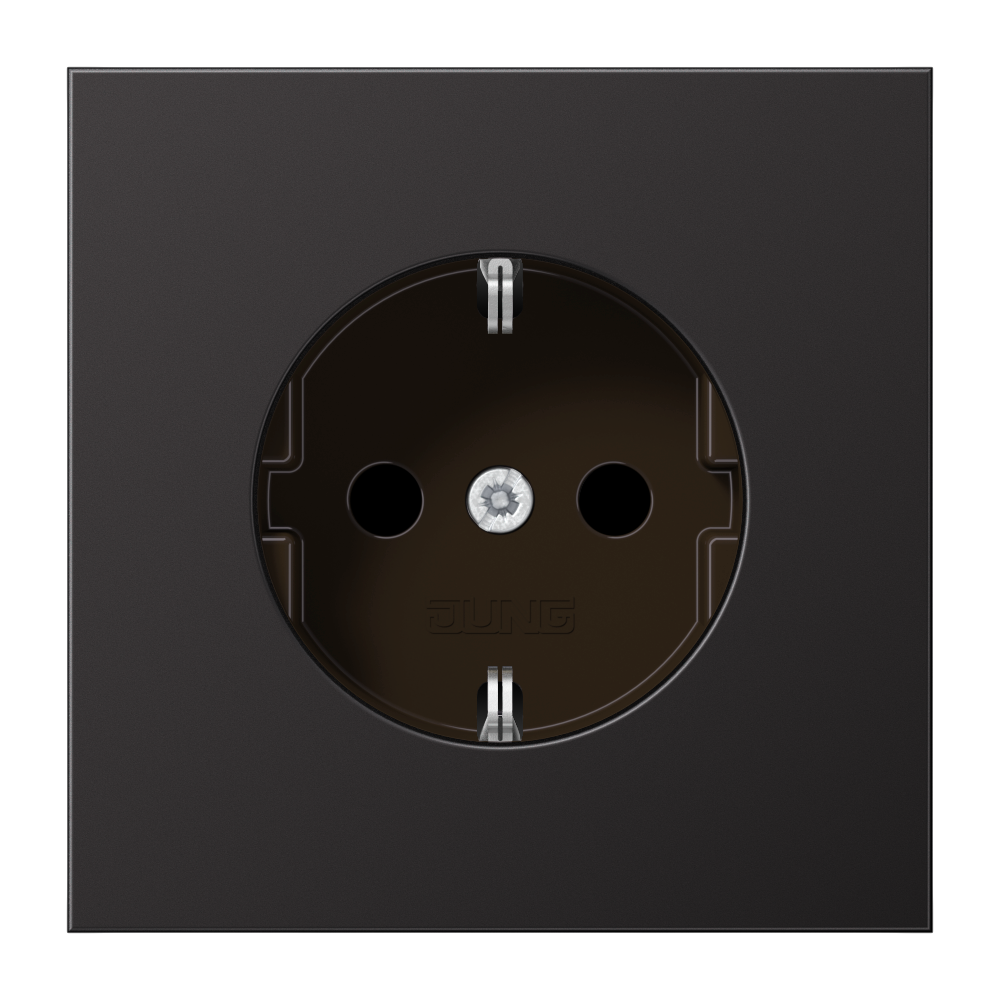

SCHUKO® socket, 16 A 250 V ~, screw terminals, Safety Plus, aluminium laquered, LS range, dark

AL 1521 KI D

SCHUKO® socket, screw terminals, Safety Plus, aluminium laquered, dark (aluminium lacquered)

AL 1521 KI D

with enhanced contact protection / shutter (Safety Plus)
with screw terminals for rigid and flexible wires up to 2.5 mm²

Supporting frame, claws and claw screws are integrated into the earth protection.

Metal versions

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual colour printing possible

Article number:	AL 1521 KI D
EAN/GTIN:	4011377140592
Colour:	dark (aluminium lacquered)
Material:	aluminium laquered
Connection:	Schraubklemmen VDE, 2,5 mm2
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	AE Select language Select language DE AT EN GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
Zertifikat	Select language Select language ES

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.103 KG
Length	70 MM
Height	47 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	1.129 KG
Length	290 MM
Height	80 MM
Width	180 MM
Outer carton
Packaging unit	100 pc.
Weight	11.716 KG
Length	575 MM
Height	190 MM
Width	395 MM
Palette
Packaging unit	3200 pc.
Weight	394.72 KG
Length	1200 MM
Height	1620 MM
Width	800 MM
