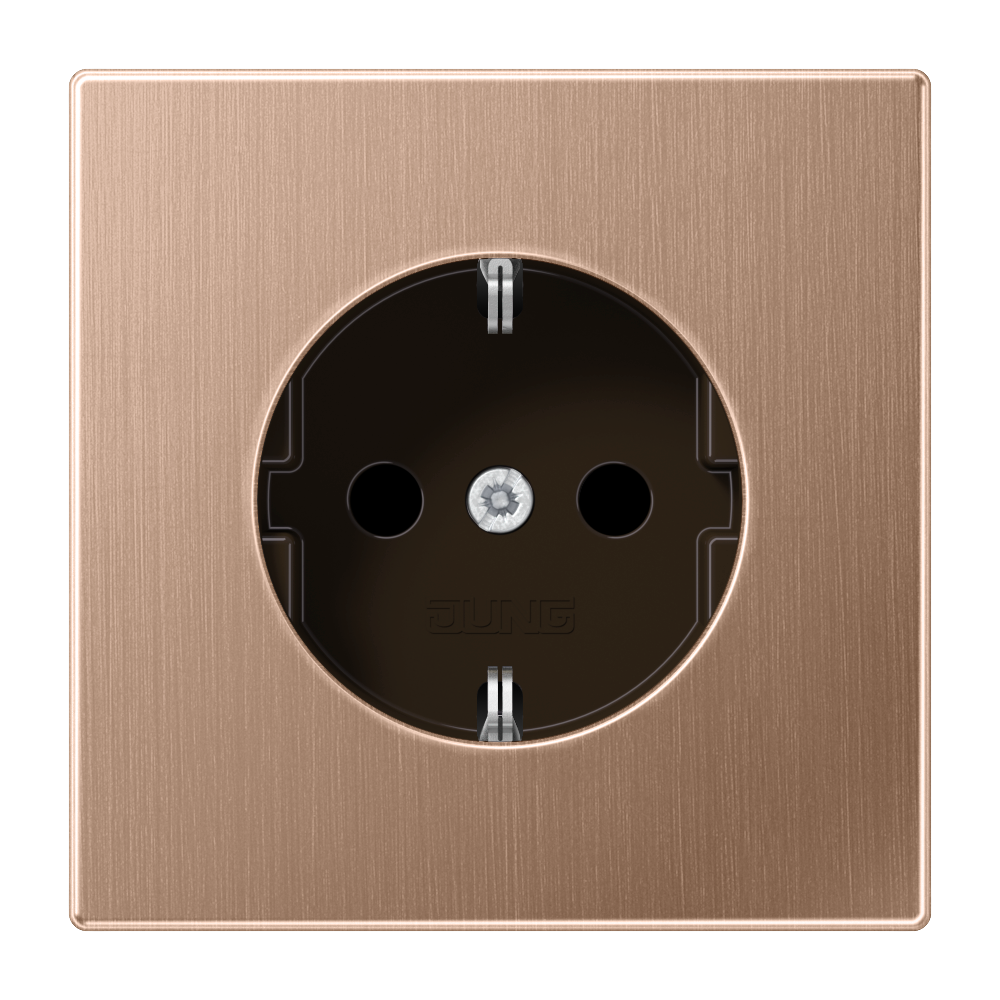

SCHUKO® socket, 16 A 250 V ~, screw terminals, Safety Plus, LS range, brushed bronze

BRG 1521 KI

SCHUKO® socket, screw terminals, Safety Plus, brushed bronze

BRG 1521 KI

with enhanced contact protection / shutter (Safety Plus)
with screw terminals for rigid and flexible wires up to 2.5 mm²

Supporting frame, claws and claw screws are integrated into the earth protection.

Metal versions

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW

Delivery time: approx. 8 weeks

Read less... Read more...

new

Individual colour printing possible

Article number:	BRG 1521 KI
EAN/GTIN:	4011377373365
Colour:	brushed bronze
Material:	stainless steel 1.4303 X4 CrNi 18-12, PVD-coated
Connection:	Schraubklemmen VDE, 2,5 mm2
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	AE Select language Select language EN DE AT GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Product data sheet	AE Select language Select language DE AT EN GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
Zertifikat	Select language Select language ES

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.1 KG
Length	72 MM
Height	44 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	1.094 KG
Length	286 MM
Height	78 MM
Width	176 MM
Outer carton
Packaging unit	100 pc.
Weight	12.326 KG
Length	575 MM
Height	190 MM
Width	395 MM
Palette
Packaging unit	3200 pc.
Weight	414.24 KG
Length	1200 MM
Height	1620 MM
Width	800 MM
