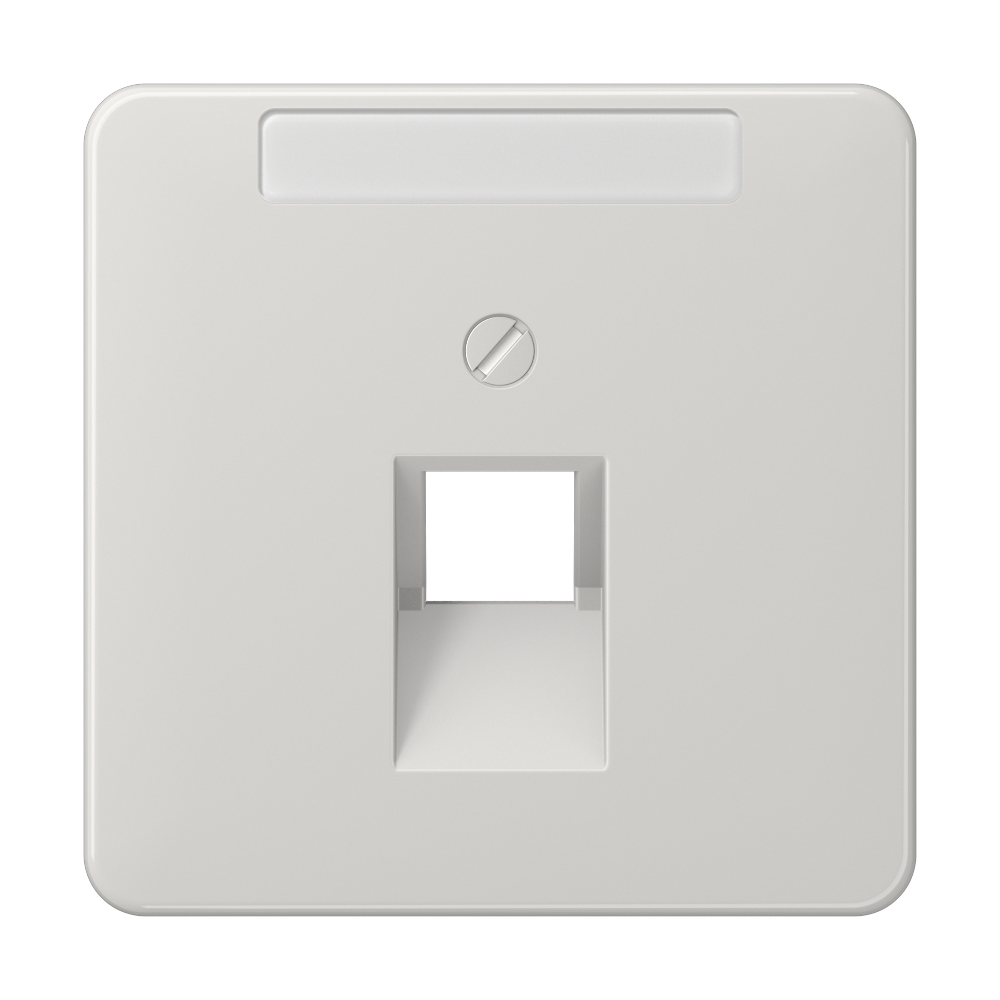

Centre plate for IAE/UAE sockets, 1 x 8-pole, with inscription field, thermoplastic, CD range, light grey

CD 569-1 NAUA LG

Centre plate for IAE/UAE sockets, 1 x 8-pole, light grey

CD 569-1 NAUA LG

for 1-gang modular jack sockets
IAE/UAE sockets ref.-no.: UAE 8 UPO
for sockets Cat. 6 ref.-no.: UAE 8 UPOK6

Suitable inserts:
Rutenbeck: UAE 8(4) UPO, UAE 8(8) UPO, UAE-Cat.5e-8 UPO OK, UAE-real.Cat.6-8 UPO OK
Telegärtner: AMJ 45, UMJ 45 and ISDN 1 x RJ 45 (TYP 8)
Spare part:
Transparent cover with paper inlay ref.-no.: CD 20 NA

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Individual laser engraving possible

Article number:	CD 569-1 NAUA LG
EAN/GTIN:	4011377685505
Colour:	light grey
Material:	thermoplastic
Width:	67 mm
Height:	67 mm

Read less... Read more...
