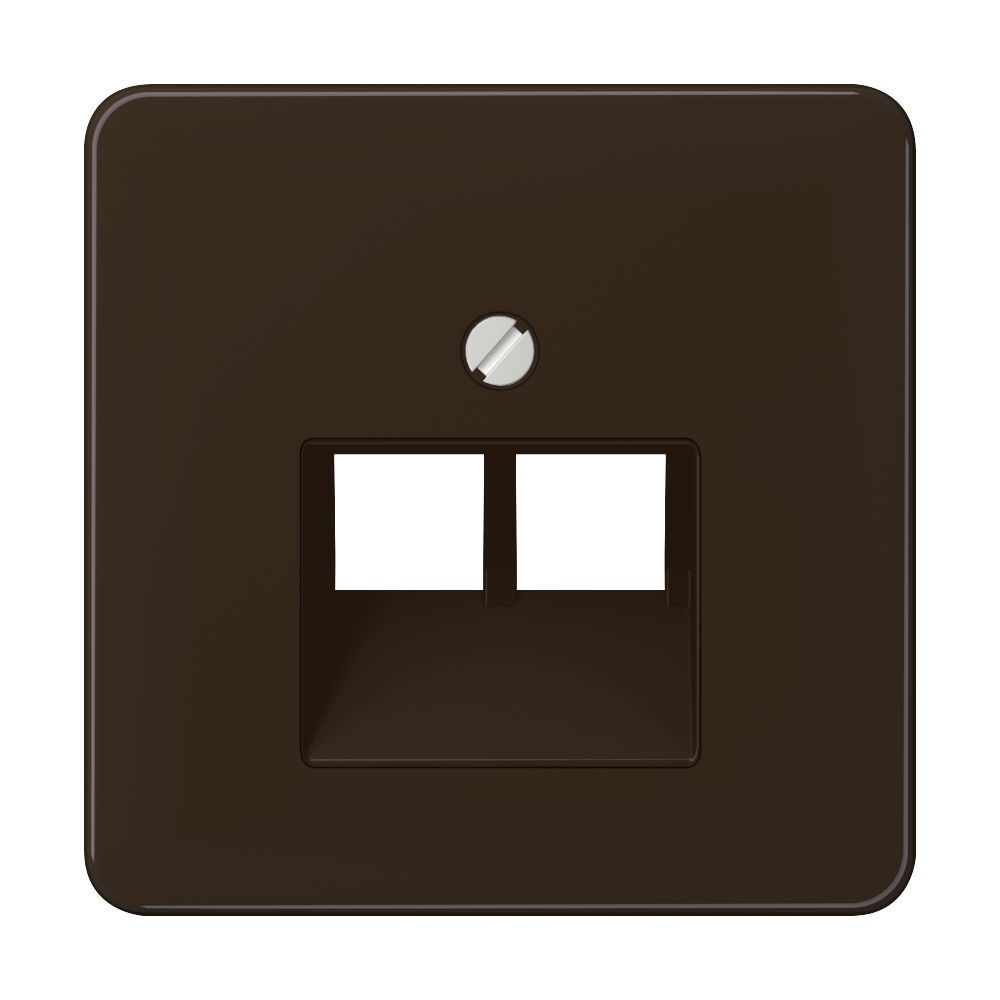

Centre plate for IAE/UAE sockets, 2 x 8-pole, thermoplastic, CD range, brown

CD 569-2 UA BR

Centre plate for IAE/UAE sockets, 2 x 8-pole, brown

CD 569-2 UA BR

for 2-gang modular jack sockets
IAE/UAE sockets ref.-no.: UAE 2 x 8 UPO, UAE 8-8 UPO
for sockets Cat. 6 ref.-no.:UAE 8-8 UPOK6

Suitable inserts:
METZ CONNECT (BTR): 1307441001-i or 1307441200-i; E-Dat design 8/8(8), Class E
Rutenbeck: UAE 8/8 (8/8) UPO, UAE 2x8 (8) UPO, UAE-Cat.5e-8/8 UPO OK, UAE-real.Cat.6-8/8 UPO OK
Telegärtner: AMJ 45, UMJ 45 and ISDN 2 x RJ 45 (TYP 8/8)

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Individual colour printing possible

Article number:	CD 569-2 UA BR
EAN/GTIN:	4011377682801
Colour:	brown
Material:	thermoplastic
Width:	67 mm
Height:	67 mm

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.018 KG
Length	68 MM
Height	15 MM
Width	68 MM
Carton
Packaging unit	10 pc.
Weight	0.182 KG
Length	159 MM
Height	92 MM
Width	92 MM

Read less... Read more...
