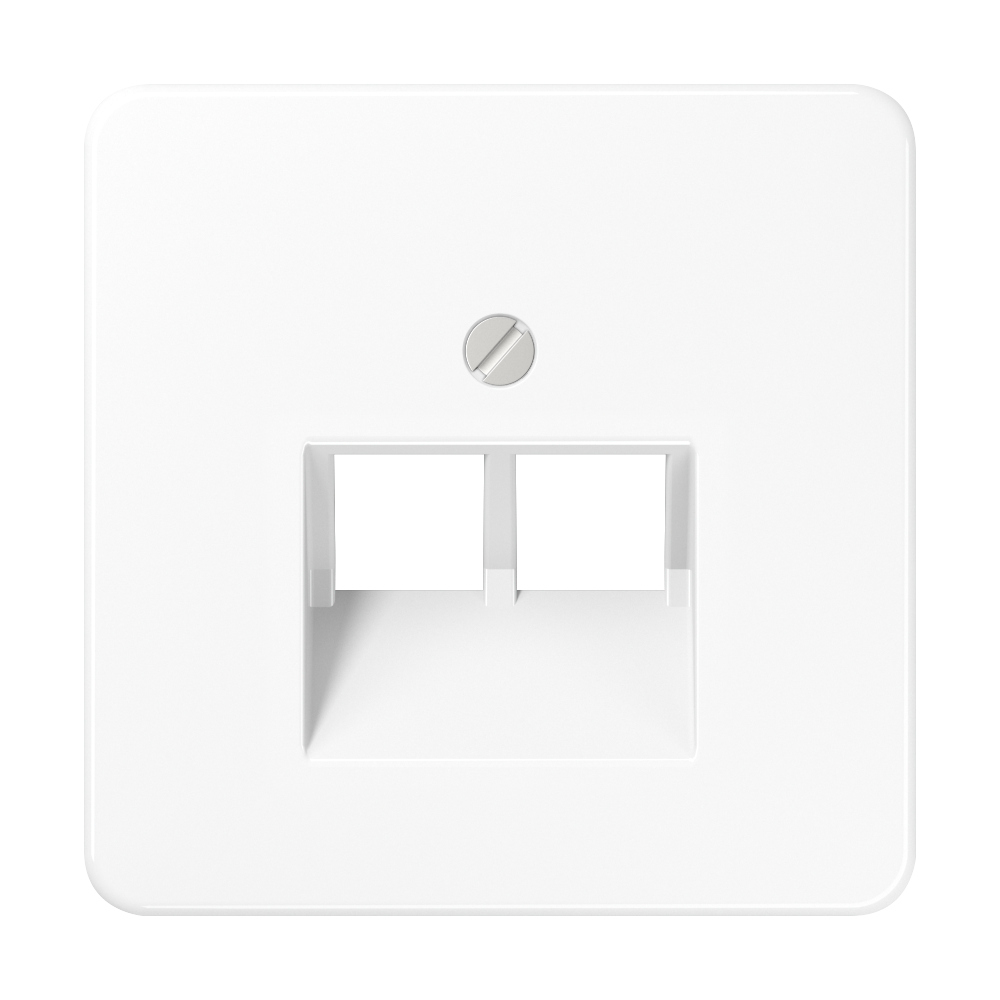

Centre plate for IAE/UAE sockets, 2 x 8-pole, thermoplastic, CD range, white

CD 569-2 UA WW

Centre plate for IAE/UAE sockets, 2 x 8-pole, white

CD 569-2 UA WW

for 2-gang modular jack sockets
IAE/UAE sockets ref.-no.: UAE 2 x 8 UPO, UAE 8-8 UPO
for sockets Cat. 6 ref.-no.:UAE 8-8 UPOK6

Suitable inserts:
METZ CONNECT (BTR): 1307441001-i or 1307441200-i; E-Dat design 8/8(8), Class E
Rutenbeck: UAE 8/8 (8/8) UPO, UAE 2x8 (8) UPO, UAE-Cat.5e-8/8 UPO OK, UAE-real.Cat.6-8/8 UPO OK
Telegärtner: AMJ 45, UMJ 45 and ISDN 2 x RJ 45 (TYP 8/8)

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	CD 569-2 UA WW
EAN/GTIN:	4011377682504
Colour:	white
Material:	thermoplastic
Width:	67 mm
Height:	67 mm

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.018 KG
Length	68 MM
Height	19 MM
Width	68 MM
Carton
Packaging unit	10 pc.
Weight	0.182 KG
Length	159 MM
Height	92 MM
Width	92 MM
Outer carton
Packaging unit	100 pc.
Weight	2.004 KG
Length	460 MM
Height	175 MM
Width	185 MM
Palette
Packaging unit	6400 pc.
Weight	148.256 KG
Length	1200 MM
Height	1500 MM
Width	800 MM
