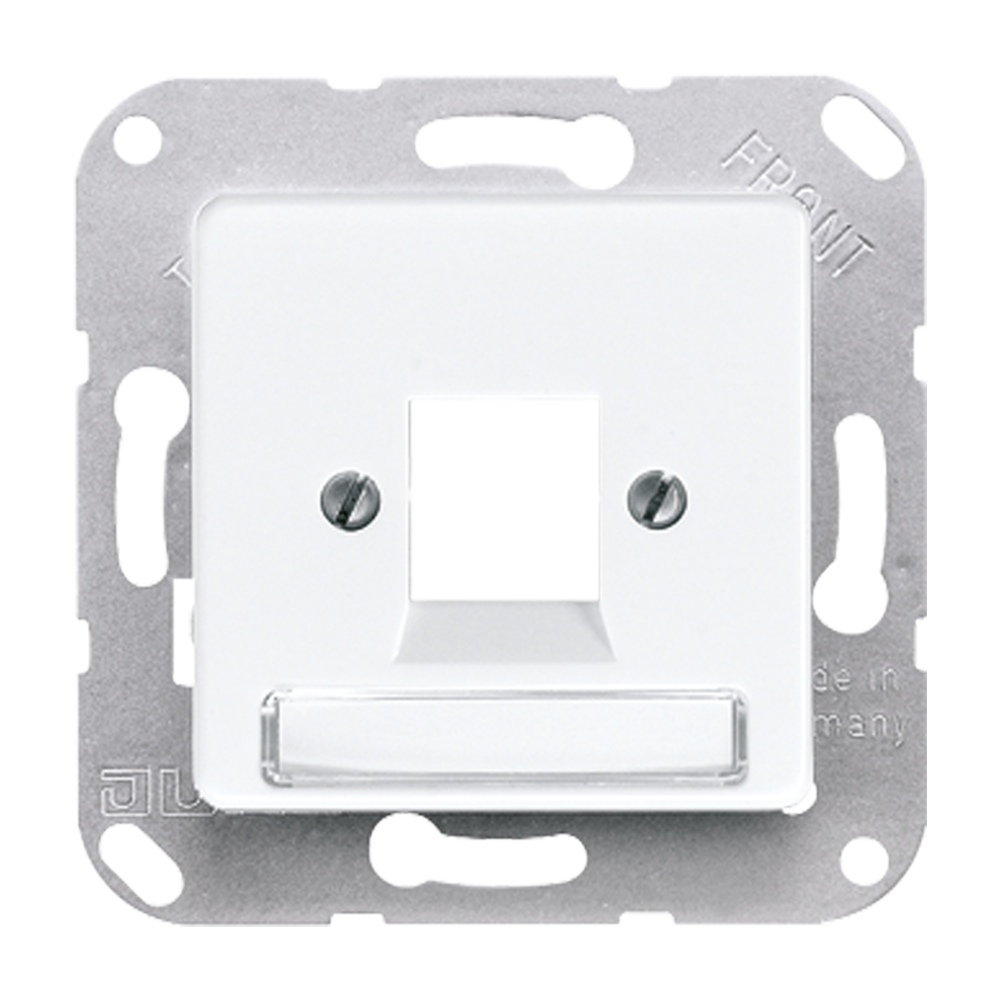

Centre plate (screw fixing) for modular jack sockets, 1-gang, EMT, AMP, MTRJ, with inscription field, thermoplastic, 50 x 50 mm, white

169-15 NWE WW

Centre plate (screw fixing) for modular jack sockets, 1-gang, EMT, AMP, MTRJ, white

169-15 NWE WW

(with supporting frame, screw fixing only)
for modular jack sockets
TE Connectivity (Tyco Electronics / AMP NETCONNECT)
for cable Ø max. 10 mm:
EMT-jack, Cat. 5e, 180° ref.-no. 0-0188650-5
EMT-jack, Cat. 5e, 90° ref.-no. 0-0188650-6
for cable Ø max. 6.5 mm:
EMT-jack, Cat. 5e, 180° ref.-no. 0-0338038-1
EMT-jack, Cat. 5e, 90° ref.-no. 0-0338038-2
Toolless Jack, Cat. 3 unshielded: ref.-no. 0-1116603-x
Toolless Jack, Cat. 5e unshielded: ref.-no. 0-1116604-x,
Toolless Jack, Cat. 5e shielded: ref.-no. 0-1339015-1
Toolless Jack, Cat. 6 unshielded: ref.-no. 0-1116605-x,
Toolless Jack, Cat. 6 shielded: ref.-no. 0-1339016-1
MTRJ-LWL jack: ref.-no. 1278414-1
for 1 socket

Spare part:
Transparent cover with paper inlay ref.-no.: CD 20 NA

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

discontinued

Individual inscription of paper inlays for incription fields possible

Article number:	169-15 NWE WW
EAN/GTIN:	4011377989344
Colour:	white
Material:	thermoplastic
Width:	50 mm
Height:	50 mm

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.038 KG
Length	71 MM
Height	11 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	0.381 KG
Length	159 MM
Height	92 MM
Width	92 MM
