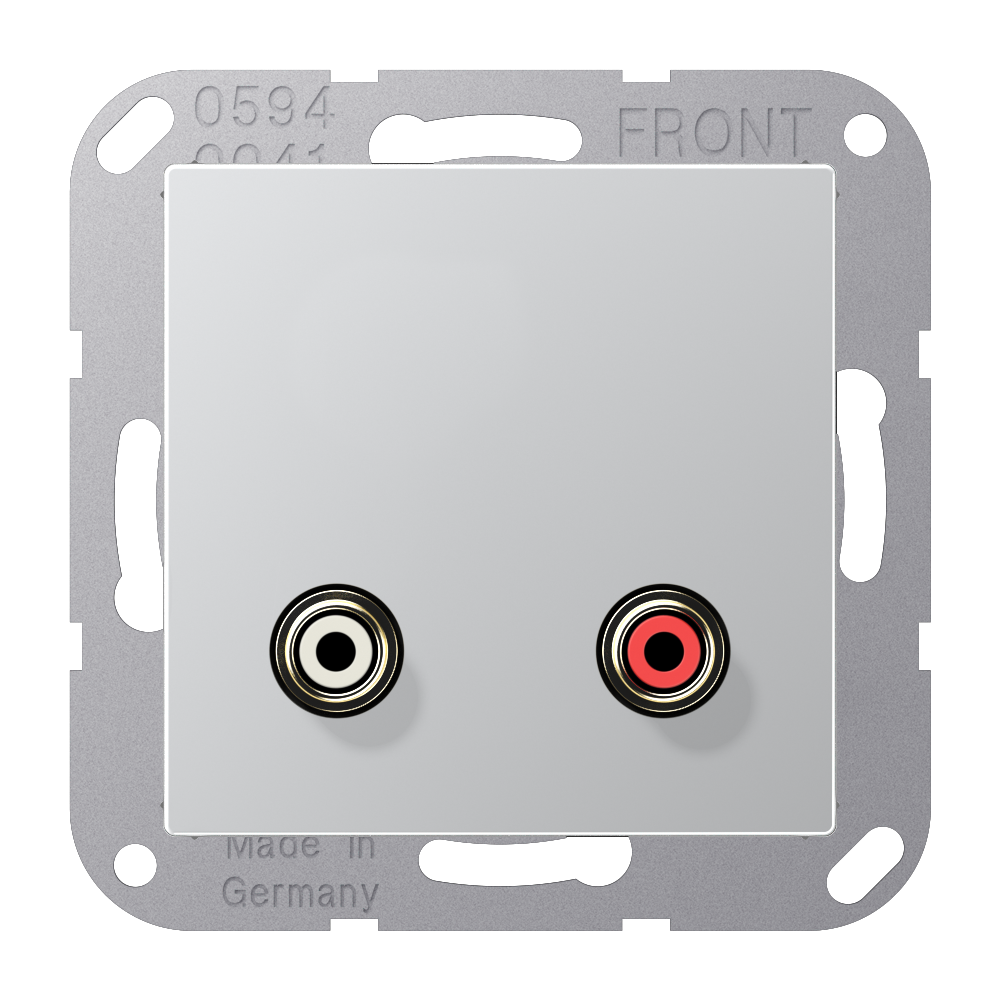

Cinch Audio (RCA), thermoplastic lacquered, A range, aluminium

MA A 1021 AL

MA A 1021 AL

(with supporting frame, screw fixing only)

Thermoplastic (breakproof) lacquered

Spare part:
adapter 4 ref.-no.: MA 1000 AD 4

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Read less... Read more...

Nominālais spriegums:	DC 50 V
Frequency range:	20 Hz ... 20 kHz
Contact resistance:	≤ 20 mΩ
Insulation resistance:	≥ 100 MΩ
Electric strength:	AC 500 V ~ (50/60 Hz) at 1 min 2 mA
Insertion and removal forces:	3 ... 25 N
Insertion/removal cycles:	≥ 1000
Terminal:	white (left) 180° red (right) 180°
Contact material:	gold-plated
Montāžas dziļums:	14 mm
Apkārtējās vides temperatūra:	−5 ... +45 °C
Installation note:	Installation into deep wall box

Read less... Read more...
