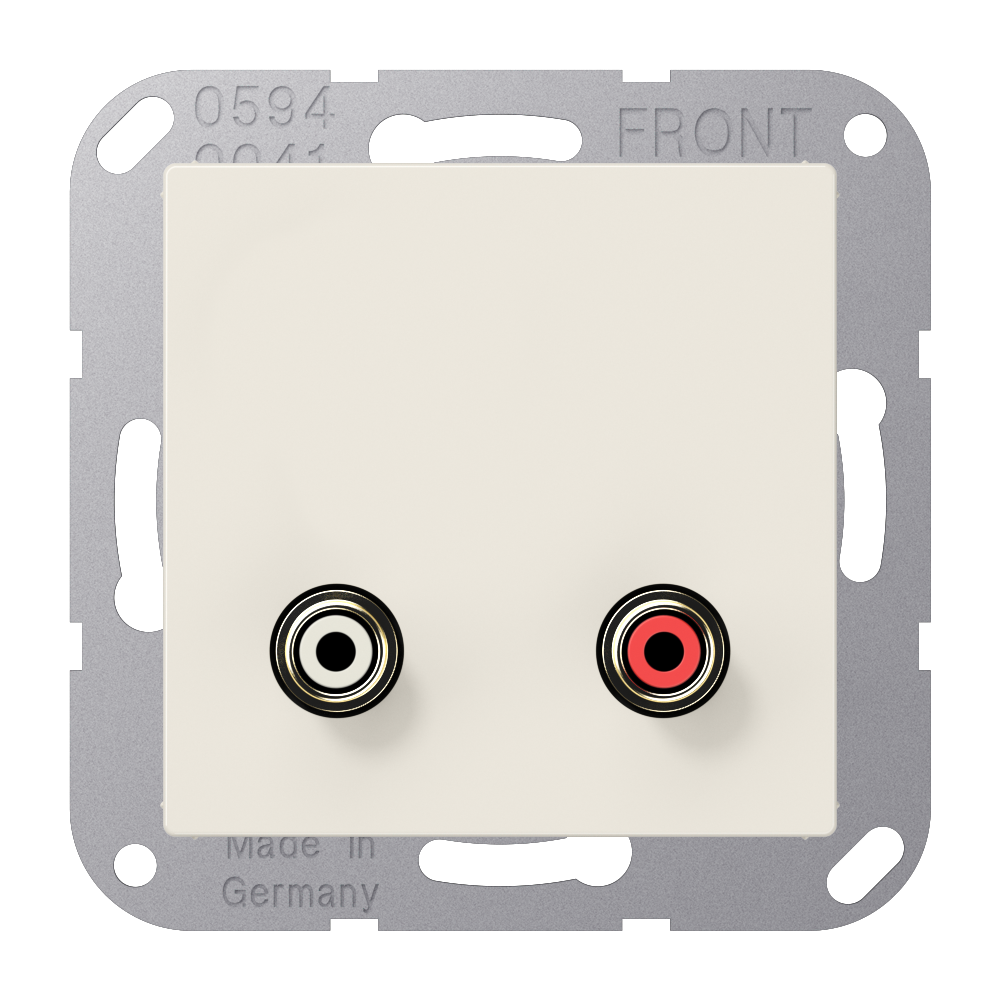

Cinch Audio (RCA), thermoplastic, AS range, ivory

MA A 1021

MA A 1021

(with supporting frame, screw fixing only)

Thermoplastic (breakproof) high-gloss

Spare part:
adapter 4 ref.-no.: MA 1000 AD 4

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Read less... Read more...

Nominālais spriegums:	DC 50 V
Frequency range:	20 Hz ... 20 kHz
Contact resistance:	≤ 20 mΩ
Insulation resistance:	≥ 100 MΩ
Electric strength:	AC 500 V ~ (50/60 Hz) at 1 min 2 mA
Insertion and removal forces:	3 ... 25 N
Insertion/removal cycles:	≥ 1000
Terminal:	white (left) 180° red (right) 180°
Contact material:	gold-plated
Montāžas dziļums:	14 mm
Apkārtējās vides temperatūra:	−5 ... +45 °C
Installation note:	Installation into deep wall box

Read less... Read more...

Lejupielādes

Operating instructions	Select language Select language DE EN
Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH
