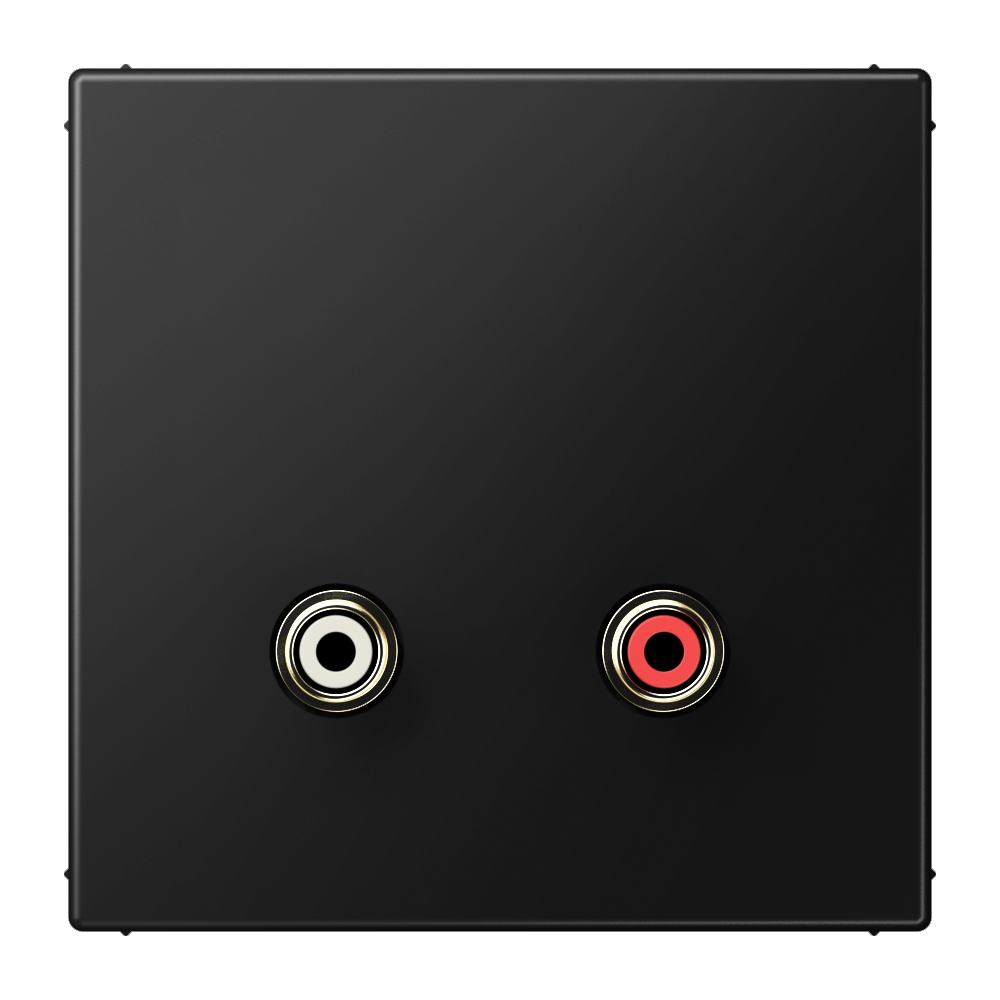

Cinch Audio (RCA), thermoplastic lacquered, LS range, matt graphite black

MA LS 1021 SWM

Cinch Audio (RCA), matt graphite black
arrow-slider
arrow-slider
  • Cinch Audio (RCA), matt graphite black
arrow-left-slim
arrow-right-slim
  • Cinch Audio (RCA), matt graphite black
MA LS 1021 SWM
BPIK_Elektrogeraete_Ruecknahme
arrow-left-slim
arrow-right-slim
  • Cinch Audio (RCA), matt graphite black
(with supporting frame, screw fixing only)

matt lacquered

Spare part:
adapter 4 ref.-no.: MA 1000 AD 4
Read less... Read more...
Individual colour printing possible
BPIK_Elektrogeraete_Ruecknahme
More articles

Information

Article number: MA LS 1021 SWM
EAN/GTIN: 4011377204843
Colour: matt graphite black
Material: thermoplastic lacquered
Read less... Read more...

Technical data

Nominālais spriegums:DC 50 V
Frequency range:20 Hz ... 20 kHz
Contact resistance:≤ 20 mΩ
Insulation resistance:≥ 100 MΩ
Electric strength:AC 500 V ~ (50/60 Hz) at 1 min 2 mA
Insertion and removal forces:3 ... 25 N
Insertion/removal cycles:≥ 1000
Terminal:white (left) 180° red (right) 180°
Contact material:gold-plated
Montāžas dziļums:14 mm
Apkārtējās vides temperatūra:−5 ... +45 °C
Installation note:Installation into deep wall box
Read less... Read more...
Lejupielādes
Rādīt visas lejupielādes
Operating instructions
Select language
Select language
DE
EN
Tehniskā specifikācija
LV
Select language
Select language
EN
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
NL
PL
PT
RU
UA
ZH
ES Atbilstības deklarācija
LV
Select language
Select language
EN
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
NL
PL
PT
RU
UA
ZH
Artikeldatenblatt
LV
Select language
Select language
DE
EN
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.079 KG
Length 85 MM
Height 73 MM
Width 85 MM
Carton
Packaging unit 1 pc.
Weight 0.079 KG
Length 85 MM
Height 73 MM
Width 85 MM
Read less... Read more...

Frames

LS 981 SWM

Frame 1-gang, matt graphite black
Frame 1-gang, matt graphite black
LSP 981 GL SW

Glass frame 1-gang, black (1-gang, 115 x 115 x 11 mm)
Glass frame 1-gang, black (1-gang, 115 x 115 x 11 mm)
LSP 981 GLAS

Glass frame 1-gang, soft white (1-gang, 115 x 115 x 11 mm)
Glass frame 1-gang, soft white (1-gang, 115 x 115 x 11 mm)
LSZ 981 BF SWM

Frame 1-gang, matt graphite black
Frame 1-gang, matt graphite black

Spare parts

MA 1000 AD 4

Adapter 4, for multimedia terminals
Adapter 4, for multimedia terminals
