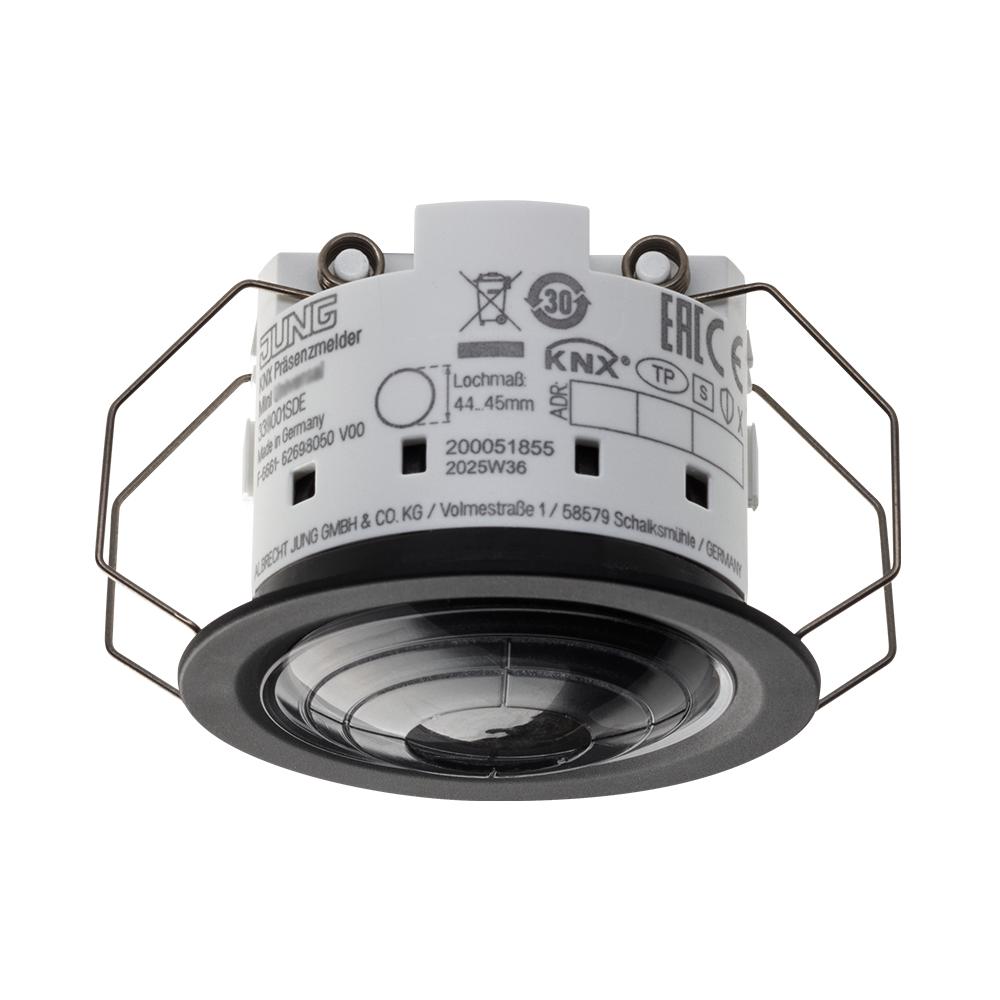

ETS product family: Physical sensors
Product type: Movement
Paredzētais pielietojums- Operation in KNX system
- Control of lighting, room thermostats and other electrical loads
- Measurement of room temperature
- Ceiling installation in interiors and exteriors
- Clamp mounting in suspended ceilings
- Ceiling installation on fixed ceilings in flush box with dimensions according to DIN 49073 with flush mounting set (ref.-no.: PMM-UP-SET-..)
- Surface-mounted ceiling installation with surface mounting set (ref.-no.: PMM-AP-SET-..)
Produkta īpašības- Integrated bus coupling unit
- 1 PIR sensor
- Detection field 360°
- Integrated brightness sensor
- Brightness sensor function with limiting value
- Internal temperature sensor
- Deployed as presence detector, motion detector, or monitoring device
- Output functions: Switching, staircase lighting function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
- Detection area extendible by parallel switching of several devices as main unit or extension unit
- Status LED: Flashes during motion detection; depending on programming in normal operation or only during the walking test mode
- 3 function blocks for motion detection each with 2 outputs
- Function blocks switchable, e.g. for day/night operation
Motion detector – lighting- Motion detection for passageways in buildings
- Switch on: Motion detection and brightness threshold not reached
- Switch off: No motion in the detection field and run-on time elapsed
After reacting and switching on, the motion detection works independently of the brightness.
Presence detector – lighting- Detection of the smallest motions e.g. at a workplace for detecting the presence of persons
- Switch off: No motion in the detection field and run-on time elapsed or brightness threshold exceeded
Presence detector – monitoring (monitoring / alarm / signalling mode)- Brightness-independent detection of motions in the detection field
- Switch on: After detection of an adjustable number of motions within the set monitoring period
Spare part:Push-on cover ref.-no.: 3361-1M-DB
