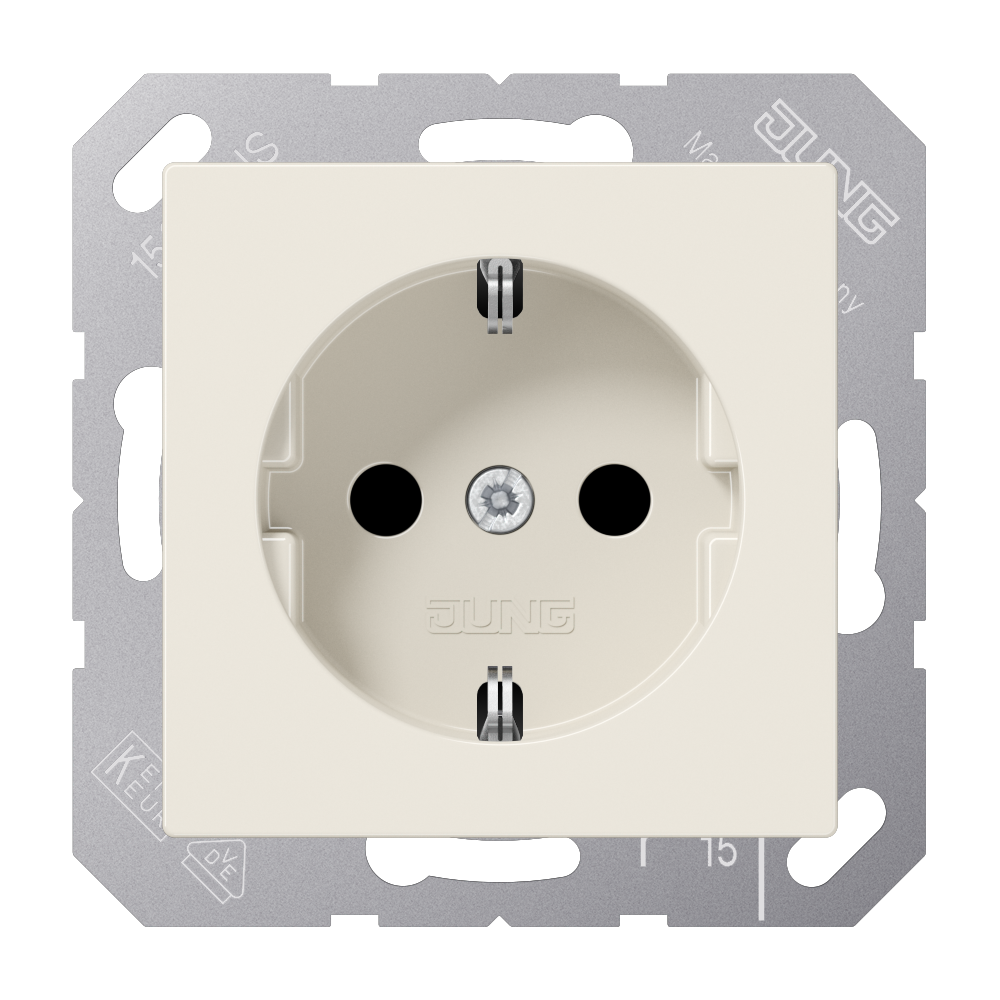

SCHUKO® socket, 16 A 250 V ~, Safety Plus, thermoplastic, AS range, ivory

A 1520 BFKI

SCHUKO® socket, Safety Plus, thermoplastic, ivory

A 1520 BFKI

with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	A 1520 BFKI
EAN/GTIN:	4011377057630
Colour:	ivory
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	55 mm
Height:	55 mm

Read less... Read more...
