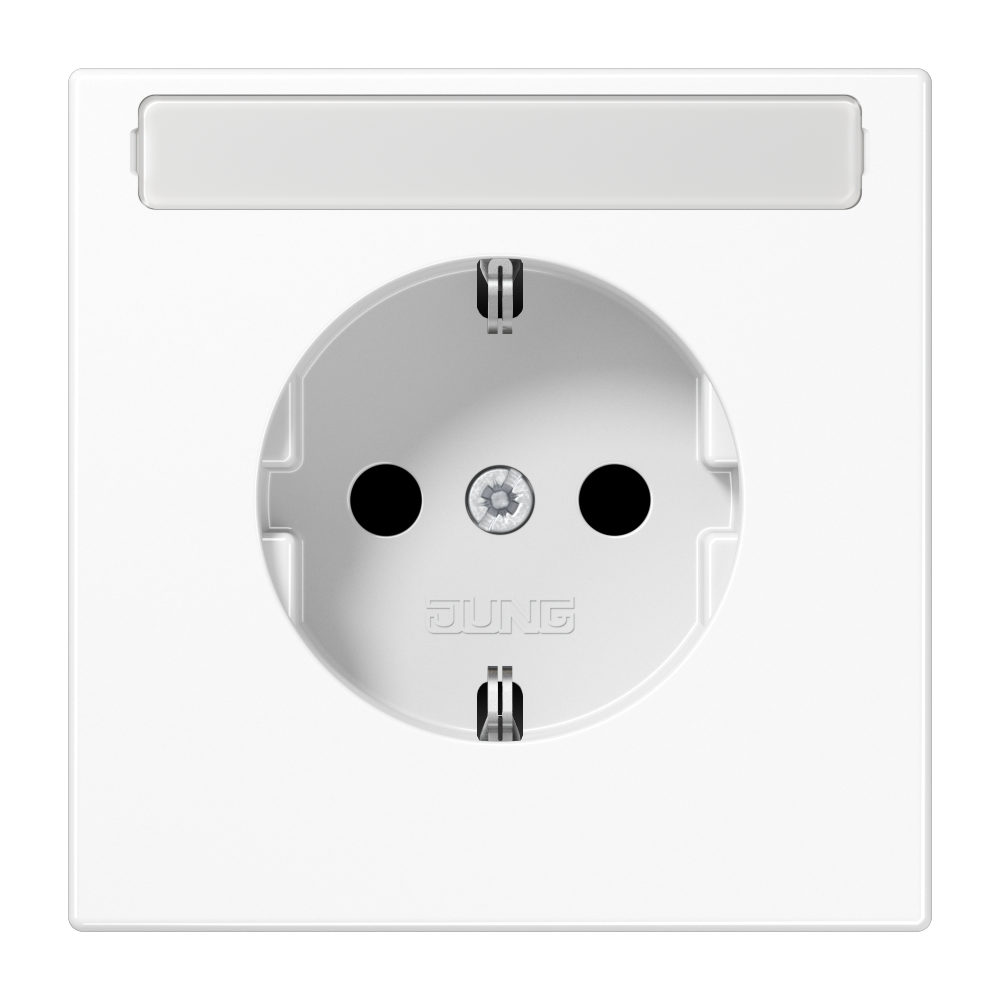

SCHUKO® socket, 16 A 250 V ~, with inscription field, Safety Plus, thermoplastic, LS range, white

LS 1520 BFKINA WW

SCHUKO® socket, Safety Plus, with inscription field, thermoplastic, white

LS 1520 BFKINA WW

with enhanced contact protection / shutter (Safety Plus)
with inscription field 9 x 58 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare part:
Transparent cover with paper inlay ref.-no.: CD 90 NA

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	LS 1520 BFKINA WW
EAN/GTIN:	4011377158566
Colour:	white
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...
