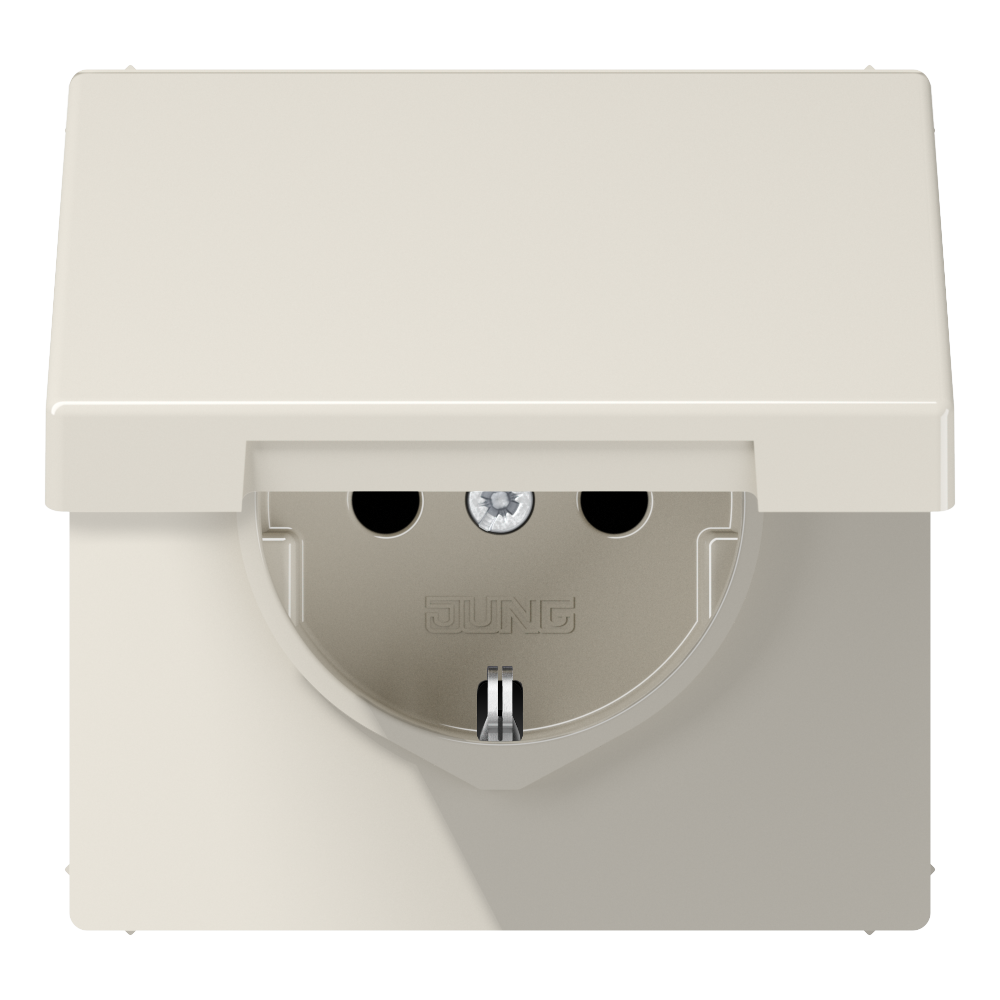

SCHUKO® socket, 16 A 250 V ~, hinged lid, thermoplastic, LS range, ivory

LS 1520 BFKL

LS 1520 BFKL

with hinged lid (with spring)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual colour printing possible

Individual laser engraving possible

Article number:	LS 1520 BFKL
EAN/GTIN:	4011377131316
Colour:	ivory
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...
