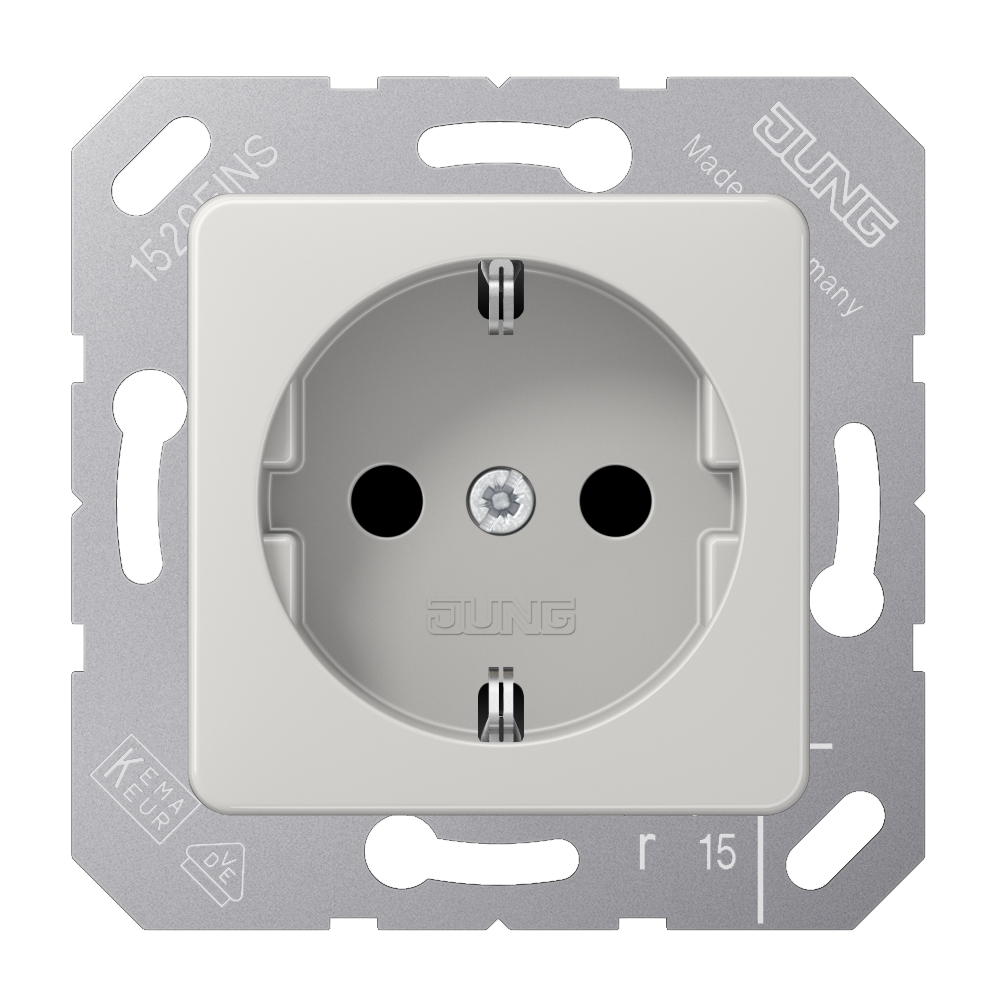

SCHUKO® socket, 16 A 250 V ~, thermoplastic, 50 x 50 mm, light grey

CD 5120 BF LG

SCHUKO® socket, thermoplastic, light grey

CD 5120 BF LG

for hinged lid
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Supporting frame, claws and claw screws are integrated into the earth protection.

Thermoplastic (breakproof) high-gloss

50 x 50 system (screw fixing) For design ranges: AS 500 / A 500 / A creation / A plus: with intermediate frame no.: A 590 Z.. CD 500 / CD plus: with intermediate frame no.: ..590 Z.. or hinged lid no.: CD 590 KL.. CD universal: with hinged lid .: CD 590 BFKL.. LS 990 / LS plus: with intermediate frame no.: LS 961 Z.. or hinged lid no.: LS 990 KL.. Aluminium: with hinged lid no.: AL 2990 KL Stainless Steel: with hinged lid no.: ES 2990 KL Anthracite: with hinged lid no.: AL 2990 KL AN Chrome: with hinged lid no.: GCR 2990 KL Gold: with hinged lid no.: GO 2990 KL Gold 24 carat: with hinged lid no.: LS 990 KL GGO

Read less... Read more...

Article number:	CD 5120 BF LG
EAN/GTIN:	4011377098992
Colour:	light grey
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	50 mm
Height:	50 mm

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.084 KG
Length	71 MM
Height	36 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	0.838 KG
Length	285 MM
Height	78 MM
Width	175 MM
