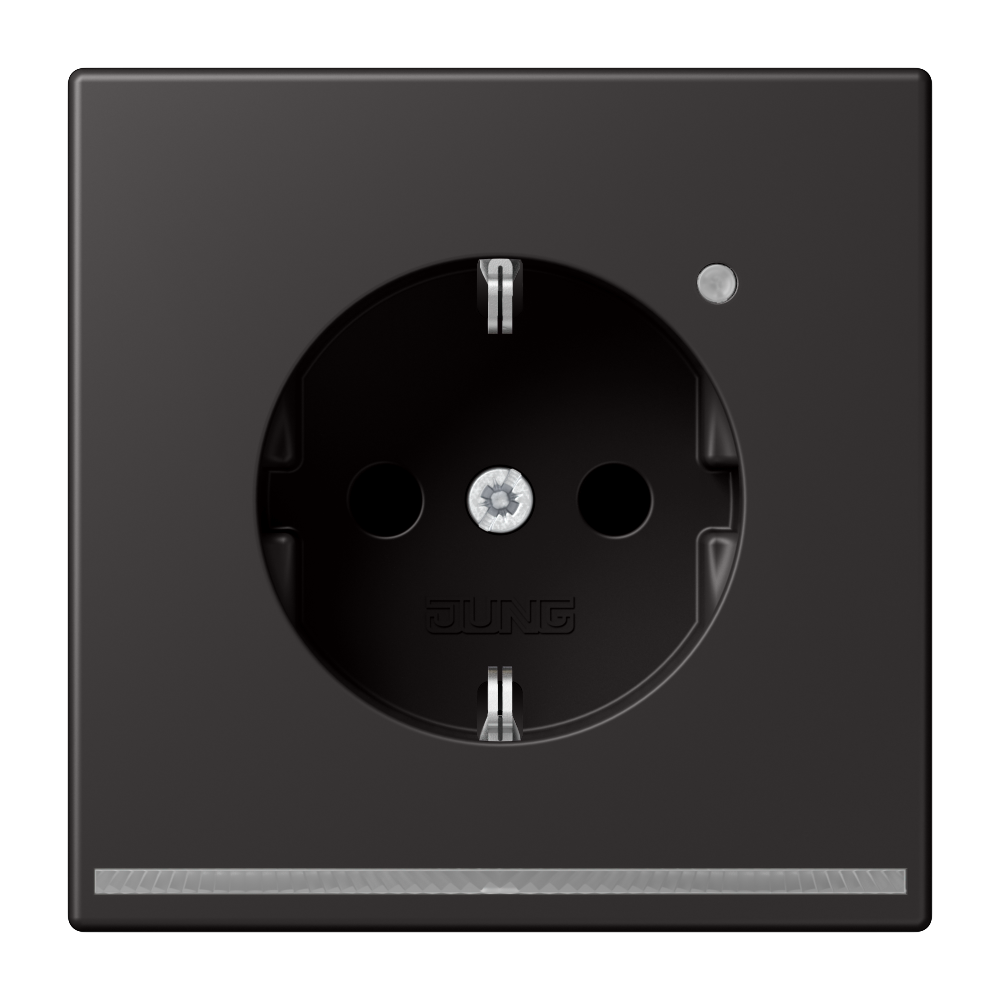

SCHUKO® socket, 16 A 250 V ~, with LED floor pilot light, Safety Plus, thermoplastic lacquered, LS range, dark

AL 1520-O D LNW

SCHUKO® socket with LED floor pilot light, Safety Plus, thermoplastic lacquered, dark

AL 1520-O D LNW

with LED floor pilot light
with integrated brightness sensor
with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid wires up to 2.5 mm²

installation into deep flush box
with white LEDs (colour temperature 3500 K)
power consumption stand-by / ON: 0.3 / 0.5 W
Supporting frame, claws and claw screws are integrated into the earth protection.

metal colours (thermoplastic lacquered)

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	AL 1520-O D LNW
EAN/GTIN:	4011377154858
Colour:	dark
Material:	thermoplastic lacquered

Read less... Read more...
