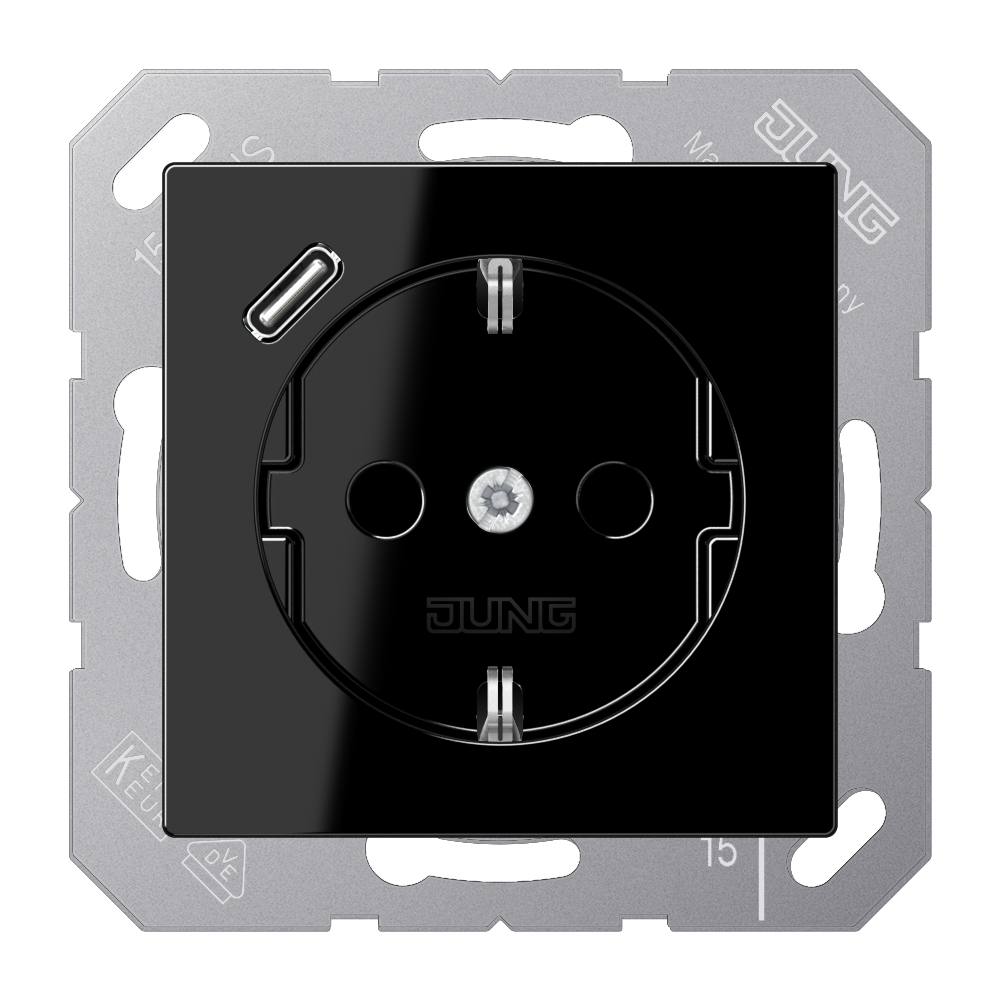

SCHUKO® socket, 16 A, with USB charger (JUNG Quick Charge®), 1 x type C, Safety Plus, A range, black

A 1520-18 C SW

SCHUKO® socket with USB charger (JUNG Quick Charge®), Safety Plus, thermoplastic, black

A 1520-18 C SW

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type C
with quick charge function (JUNG Quick Charge^®)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Spare part:
Centre plate ref.-no.: A 1520-18 C PL ..

Thermoplastic (breakproof) high-gloss

Accessories:
Frame 28 mm structure height ref.-no.: A 558.. HBF ..
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	A 1520-18 C SW
EAN/GTIN:	4011377184268
Colour:	black
Material:	thermoplastic
Type:	1 x type C
Width:	55 mm
Height:	55 mm

Read less... Read more...

Technical data

Nominālais spriegums:	AC 220 ... 250 V ~
Tīkla frekvence:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 9 V / DC 5 V
Output current USB:	2 A / 3 A
Enerģijas patēriņš gaidstāves režīmā:	≤ 25 mW
Apkārtējās vides temperatūra:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
vienā vadā:	1.5 ... 2.5 mm²
Daudzdzīslu vadītājs bez gala uzmavas:	1.5 ... 2.5 mm²

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Operating instructions	Select language Select language DE EN ES FR NL NO
Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.12 KG
Length	70 MM
Height	60 MM
Width	70 MM
Carton
Packaging unit	1 pc.
Weight	0.144 KG
Length	84 MM
Height	74 MM
Width	84 MM
Palette
Packaging unit	1440 pc.
Weight	285.05 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
