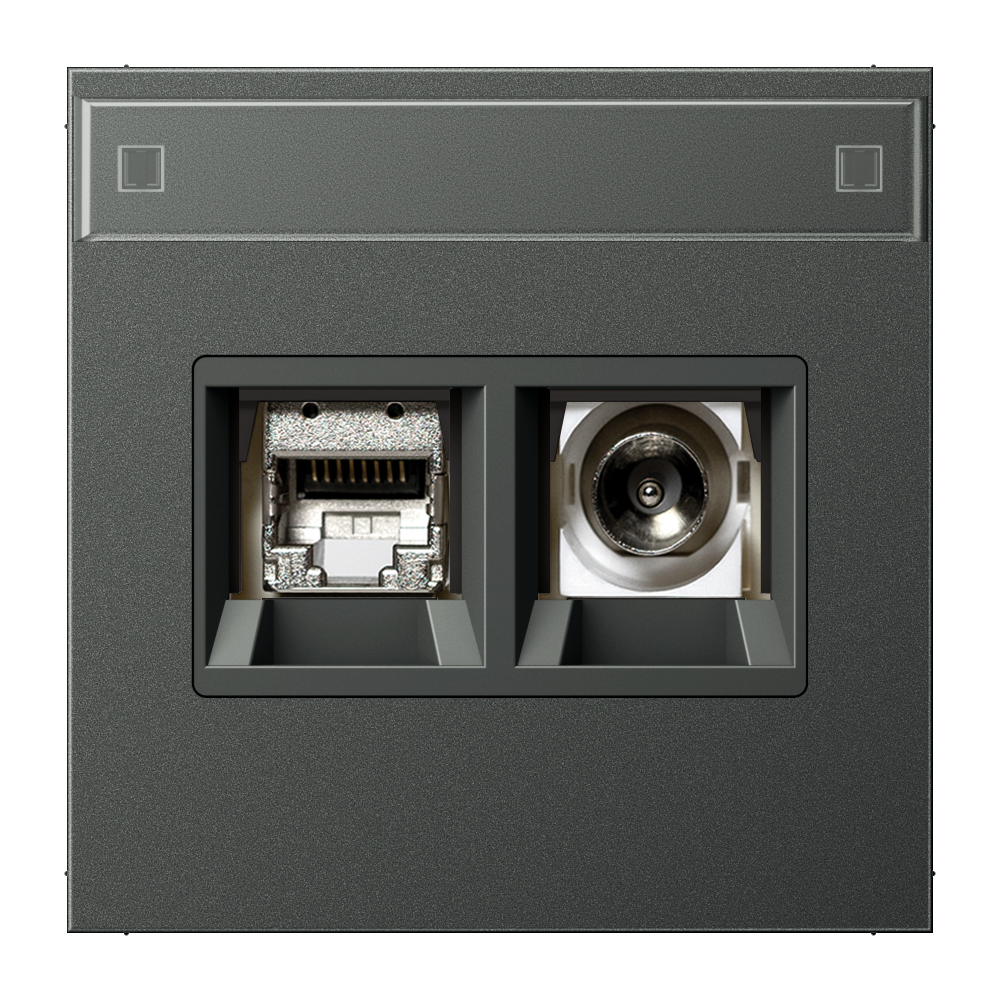

Smart TV socket, with inscription field, aluminium laquered, LS range, anthracite

MMD AL 4521 AN

MMD AL 4521 AN

(with supporting frame, screw fixing only)
cover with snap-on fixing
with inscription field 12 x 55 mm
shutter with spring
including universal modular jack socket ref.-no.: UMA-CAT6A-25 and IEC plug module for antenna cables

Consider bending radius and various plug types. Ensure sufficient installation space.
Spare part:
Transparent cover ref.-no.: M 20 NA

Metal versions

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Individual laser engraving possible

Article number:	MMD AL 4521 AN
EAN/GTIN:	4011377332669
Colour:	anthracite (aluminium lacquered)

Read less... Read more...

Technical data

External connection:	IEC male, IEC 60169-2
Internal connection:	F female, IEC 60169-24
Impedance:	75 Ohm
Frequency range:	5 ... 2 400 MHz
Attenuation:	0,0 dB
Montāžas dziļums:	universal modular jack socket: 28 mm (not considering cables) IEC plug module: 30 mm (not considering cables)
Note:	Use right angle plug. Consider bending radius. Ensure sufficient installation space.

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Operating instructions	Select language Select language DE EN
Montageanleitung	Select language Select language DE EN
Technische Zeichnung	Select language Select language DE
Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.084 KG
Length	74 MM
Height	26 MM
Width	72 MM
Carton
Packaging unit	1 pc.
Weight	0.118 KG
Length	86 MM
Height	72 MM
Width	84 MM
Outer carton
Packaging unit	10 pc.
Weight	1.306 KG
Length	360 MM
Height	90 MM
Width	175 MM
