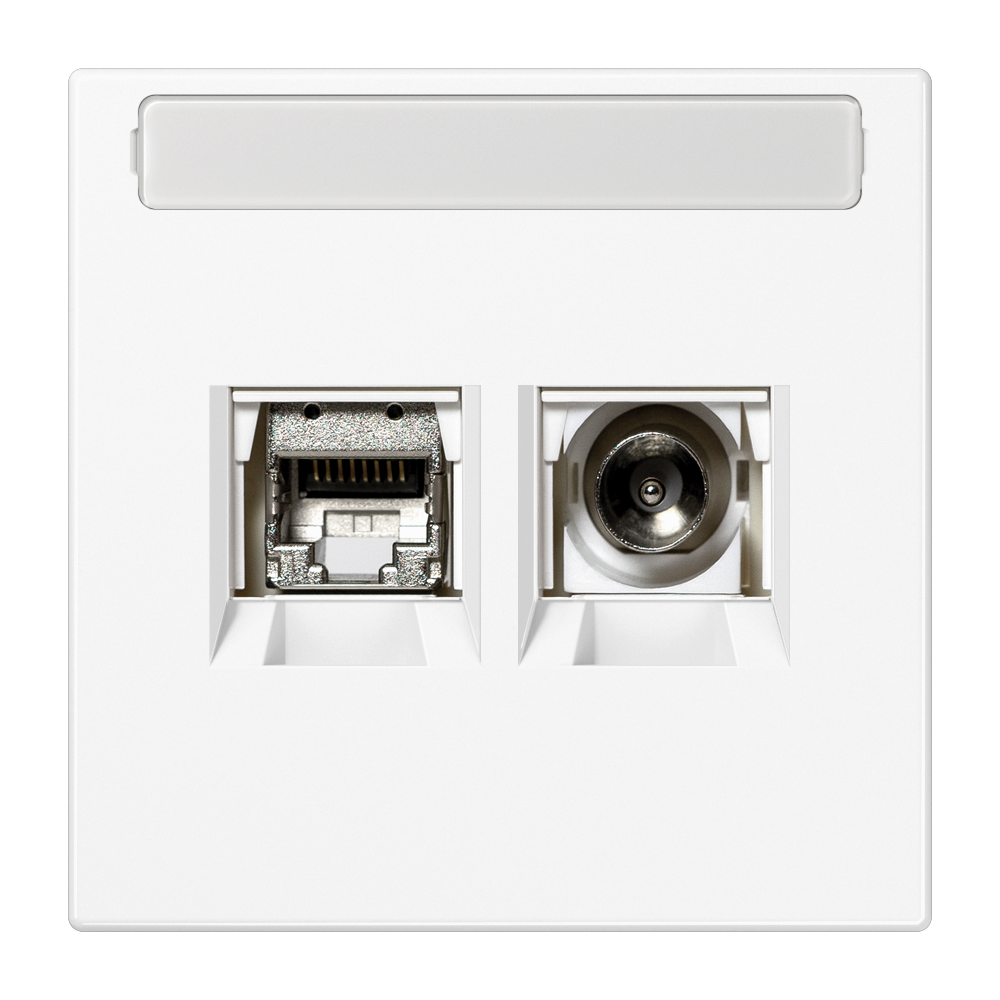

Smart TV socket, with inscription field, thermoplastic lacquered, LS range, matt snow white

MMD LS 4521 WWM

MMD LS 4521 WWM

(with supporting frame, screw fixing only)
cover with snap-on fixing
with inscription field 9 x 58 mm
shutter with spring
including universal modular jack socket ref.-no.: UMA-CAT6A-25 and IEC plug module for antenna cables

Consider bending radius and various plug types. Ensure sufficient installation space.
Spare part:
Transparent cover with paper inlay ref.-no.: CD 90 NA

matt lacquered

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	MMD LS 4521 WWM
EAN/GTIN:	4011377332522
Colour:	matt snow white

Read less... Read more...

Technical data

External connection:	IEC male, IEC 60169-2
Internal connection:	F female, IEC 60169-24
Impedance:	75 Ohm
Frequency range:	5 ... 2 400 MHz
Attenuation:	0,0 dB
Montāžas dziļums:	universal modular jack socket: 28 mm (not considering cables) IEC plug module: 30 mm (not considering cables)
Note:	Use right angle plug. Consider bending radius. Ensure sufficient installation space.

Read less... Read more...
