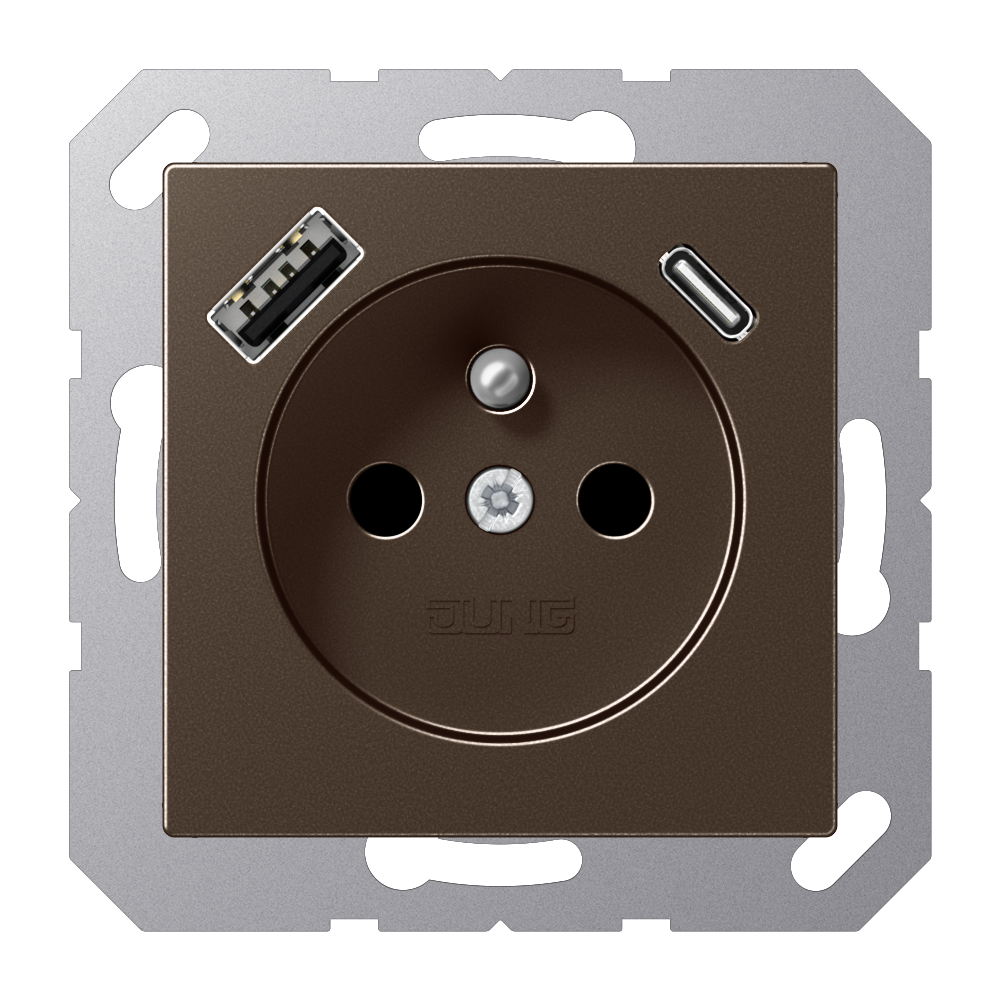

Socket, French/Belgian system, 16 A, with USB charger, 1 x type A + 1 x type C, Safety Plus, A range, mocha

A 1520 F-15 CA MO

Socket, French/Belgian system with USB charger, Safety Plus, thermoplastic lacquered, mocha

A 1520 F-15 CA MO

2-pole + male earth pin, 16 A / 250 V ~
CEE 7/5
with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A and 1 USB port type C
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Thermoplastic (breakproof) lacquered

Accessories:
Frame 28 mm structure height ref.-no.: A 558.. HBF ..
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual colour printing possible

Article number:	A 1520 F-15 CA MO
EAN/GTIN:	4011377184985
Colour:	mocha
Material:	thermoplastic lacquered
Type:	1 x type A + 1 x type C
Width:	55 mm
Height:	55 mm

Read less... Read more...

Technical data

Nominālais spriegums:	AC 220 ... 250 V ~
Tīkla frekvence:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 5 V
Output current USB (total):	3 A
Enerģijas patēriņš gaidstāves režīmā:	≤ 25 mW
Apkārtējās vides temperatūra:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
vienā vadā:	1.5 ... 2.5 mm²
Daudzdzīslu vadītājs bez gala uzmavas:	1.5 ... 2.5 mm²

Read less... Read more...
