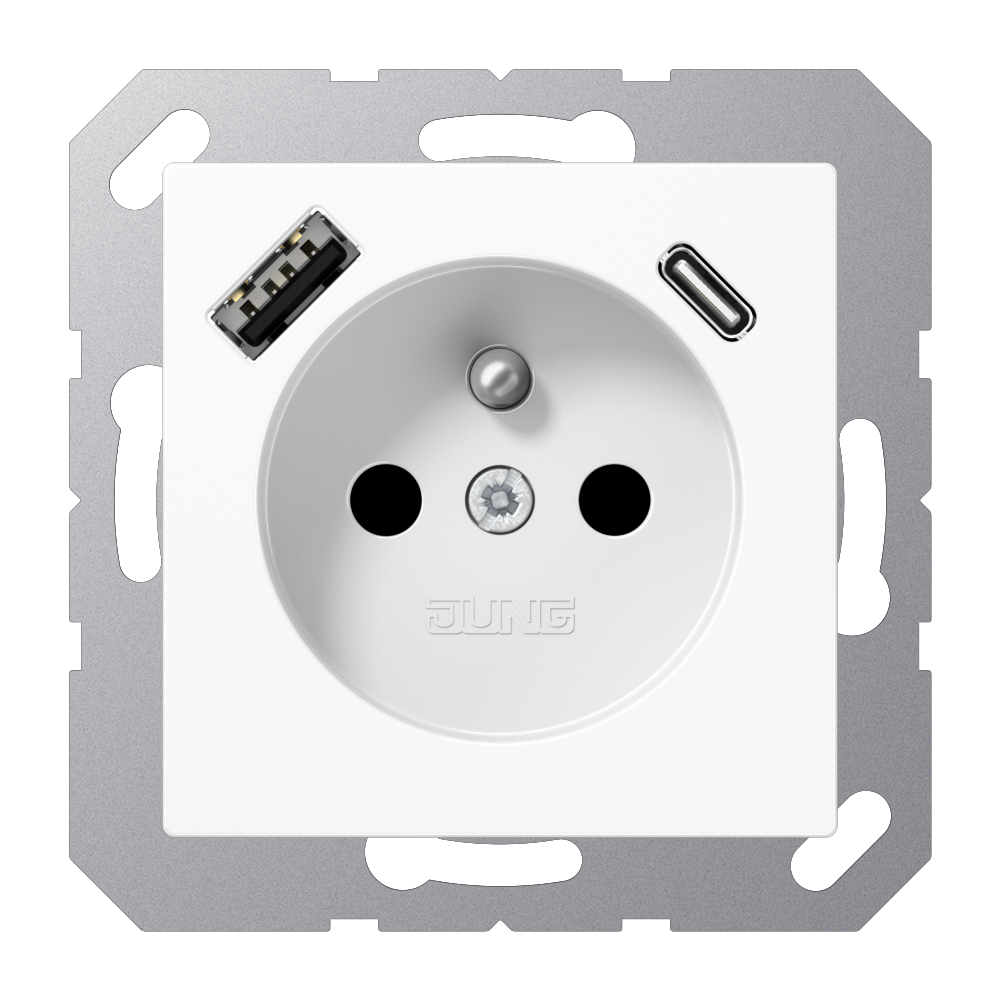

Socket, French/Belgian system, 16 A, with USB charger, 1 x type A + 1 x type C, Safety Plus, AS/A range, white

A 1520 F-15 CA WW

Socket, French/Belgian system with USB charger, Safety Plus, thermoplastic, white

A 1520 F-15 CA WW

2-pole + male earth pin, 16 A / 250 V ~
CEE 7/5
with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type A and 1 USB port type C
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Thermoplastic (breakproof) high-gloss

Accessories:
Frame 28 mm structure height ref.-no.: A 558.. HBF ..

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	A 1520 F-15 CA WW
EAN/GTIN:	4011377184930
Colour:	white
Material:	thermoplastic
Type:	1 x type A + 1 x type C
Width:	55 mm
Height:	55 mm

Read less... Read more...

Technical data

Nominālais spriegums:	AC 220 ... 250 V ~
Tīkla frekvence:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 5 V
Output current USB (total):	3 A
Enerģijas patēriņš gaidstāves režīmā:	≤ 25 mW
Apkārtējās vides temperatūra:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
vienā vadā:	1.5 ... 2.5 mm²
Daudzdzīslu vadītājs bez gala uzmavas:	1.5 ... 2.5 mm²

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Operating instructions	Select language Select language DE EN ES FR NL NO
Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH
