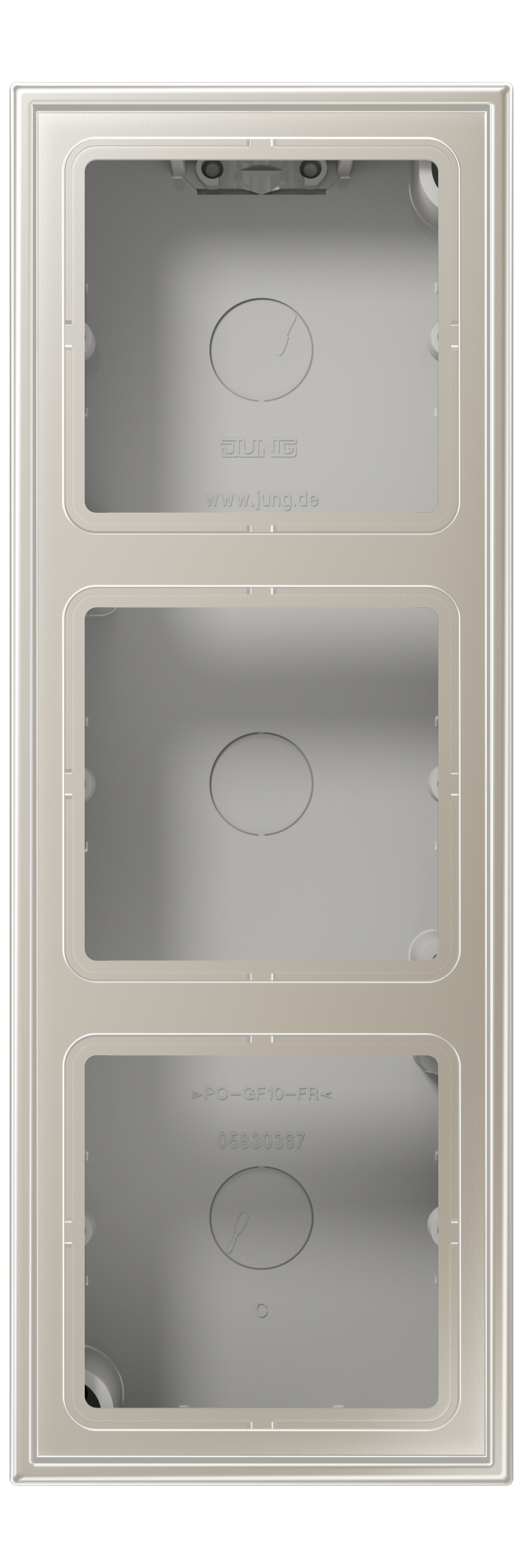

Surface cap 3-gang, LS CUBE, duroplastic lacquered, stainless steel, vertical and horizontal installation

ES 2583 A-L

ES 2583 A-L

with integrated frame and non-flammable ground plate
for inserts with covers of the LS range (except LS 1912 toggle switches, key switches ref.-no. ..15, 3-level-switch and socket for Switzerland type 13)
223 x 81 x 47 mm
Installation depth max. 34 mm

metal colours (duroplastic lacquered)

Spare part:
mounting box ref.-no.: 583 A

Read less... Read more...

Article number:	ES 2583 A-L
EAN/GTIN:	4011377048812
Colour:	stainless steel
Material:	duroplastic lacquered
Version:	3-gang

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE AT EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.319 KG
Length	225 MM
Height	84 MM
Width	84 MM
Carton
Packaging unit	1 pc.
Weight	0.319 KG
Length	230 MM
Height	92 MM
Width	95 MM
Outer carton
Packaging unit	10 pc.
Weight	3.475 KG
Length	460 MM
Height	180 MM
Width	235 MM
Palette
Packaging unit	320 pc.
Weight	174.88 KG
Length	1200 MM
Height	1476 MM
Width	800 MM

Read less... Read more...

Spare parts

583 A

Mounting box for surface caps 3-gang, light grey

Surface cap 3-gang, LS CUBE, duroplastic lacquered, stainless steel, vertical and horizontal installation

ES 2583 A-L
