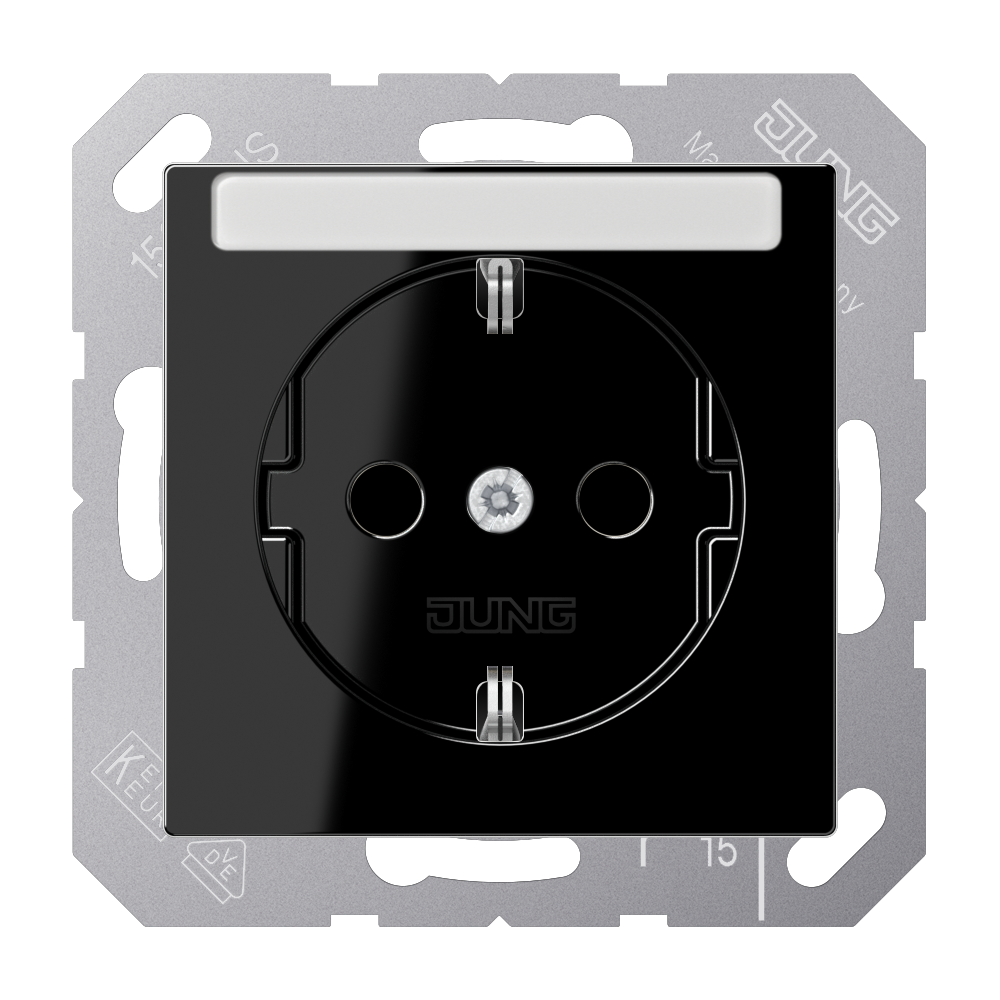

SCHUKO® socket, 16 A 250 V ~, with inscription field, Safety Plus, thermoplastic, A range, black

A 1520 BFKINA SW

SCHUKO® socket, Safety Plus, with inscription field, thermoplastic, black

A 1520 BFKINA SW

with enhanced contact protection / shutter (Safety Plus)
with inscription field 6 x 46 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare part:
Transparent cover with paper inlay ref.-no.: A 20 NA

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	A 1520 BFKINA SW
EAN/GTIN:	4011377184022
Colour:	black
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	55 mm
Height:	55 mm

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.087 KG
Length	71 MM
Height	46 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	0.974 KG
Length	290 MM
Height	80 MM
Width	180 MM
Outer carton
Packaging unit	200 pc.
Weight	20.195 KG
Length	570 MM
Height	300 MM
Width	385 MM
Palette
Packaging unit	3200 pc.
Weight	345.12 KG
Length	1200 MM
Height	1600 MM
Width	800 MM
