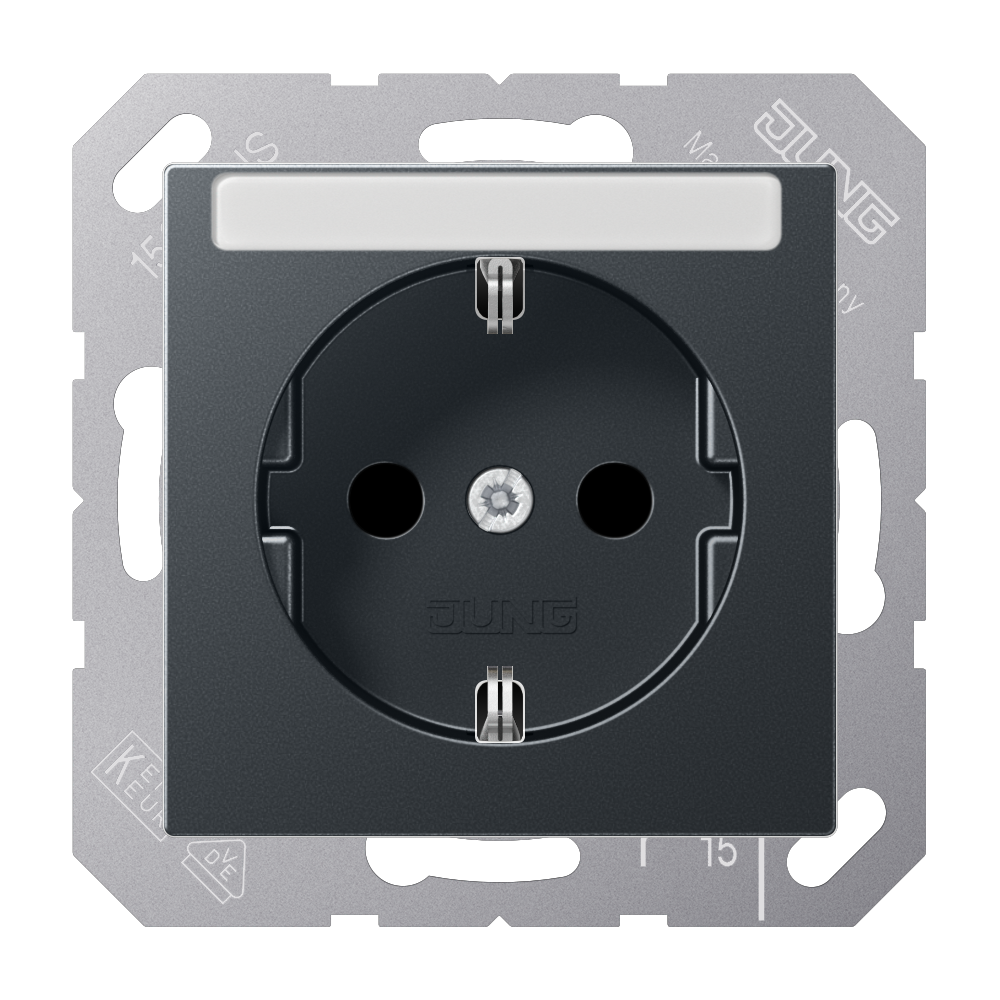

SCHUKO® socket, 16 A 250 V ~, with inscription field, Safety Plus, thermoplastic lacquered, A range, matt anthracite

A 1520 BFKINA ANM

SCHUKO® socket, Safety Plus, with inscription field, thermoplastic lacquered, matt anthracite

A 1520 BFKINA ANM

with enhanced contact protection / shutter (Safety Plus)
with inscription field 6 x 46 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare part:
Transparent cover with paper inlay ref.-no.: A 20 NA

matt lacquered

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Plastic design cover made from 95% recycled material in accordance with DIN EN ISO 14021 - sustainable, conserves resources

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	A 1520 BFKINA ANM
EAN/GTIN:	4011377184015
Colour:	matt anthracite
Material:	thermoplastic lacquered
Connection:	screwless terminals for rigid and flexible wires
Width:	55 mm
Height:	55 mm

Read less... Read more...

Lejupielādes

Rādīt visas lejupielādes

Tehniskā specifikācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
ES Atbilstības deklarācija	LV Select language Select language EN DE AT AE GB SG ES EE FR IT LT NL PL PT RU UA ZH
Artikeldatenblatt	LV Select language Select language DE EN AE GB SG US ES EE FR IT KR LT NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.087 KG
Length	70 MM
Height	40 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	0.974 KG
Length	290 MM
Height	80 MM
Width	180 MM
Outer carton
Packaging unit	200 pc.
Weight	20.195 KG
Length	570 MM
Height	300 MM
Width	385 MM
Palette
Packaging unit	3200 pc.
Weight	345.12 KG
Length	1200 MM
Height	1600 MM
Width	800 MM
