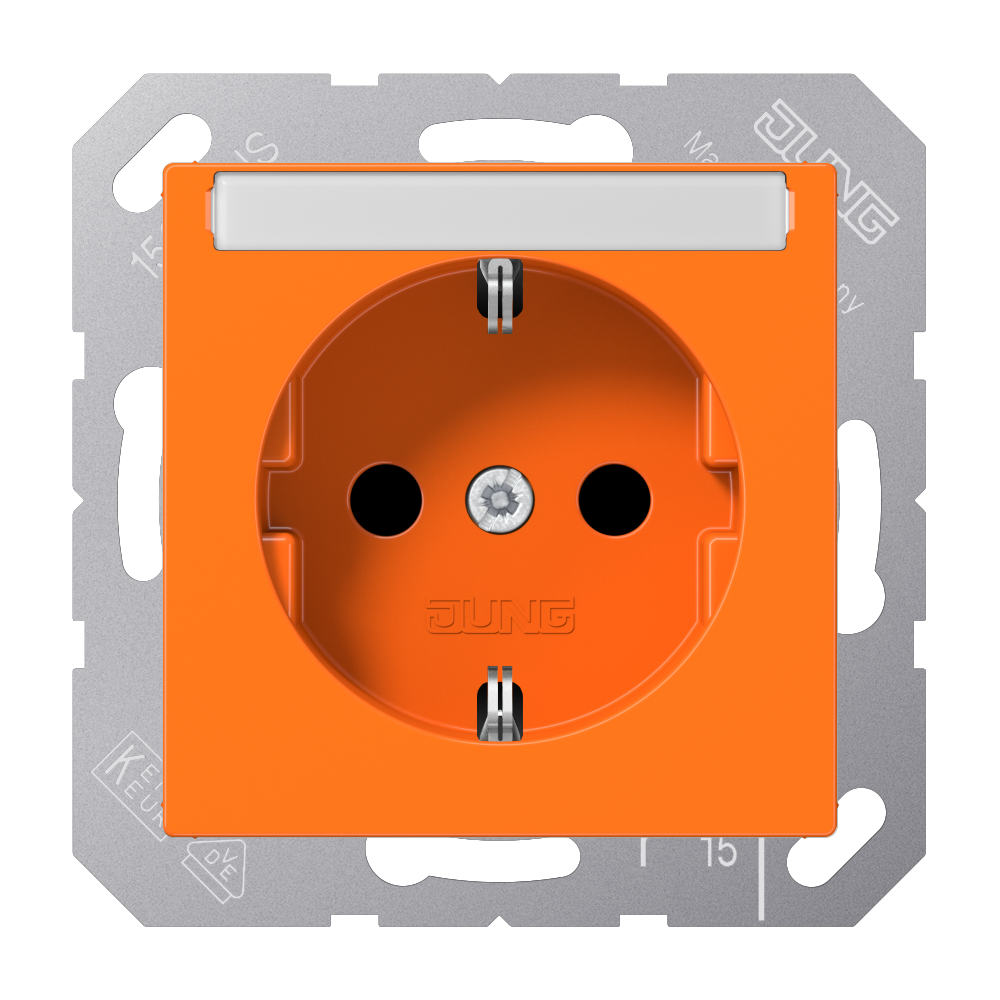

SCHUKO® socket, 16 A 250 V ~, with inscription field, Safety Plus, thermoplastic, A range, orange

A 1520 BFKINA O

SCHUKO® socket, Safety Plus, with inscription field, thermoplastic, orange

A 1520 BFKINA O

with enhanced contact protection / shutter (Safety Plus)
with inscription field 6 x 46 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare part:
Transparent cover with paper inlay ref.-no.: A 20 NA

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	A 1520 BFKINA O
EAN/GTIN:	4011377158405
Colour:	orange
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	55 mm
Height:	55 mm

Read less... Read more...
