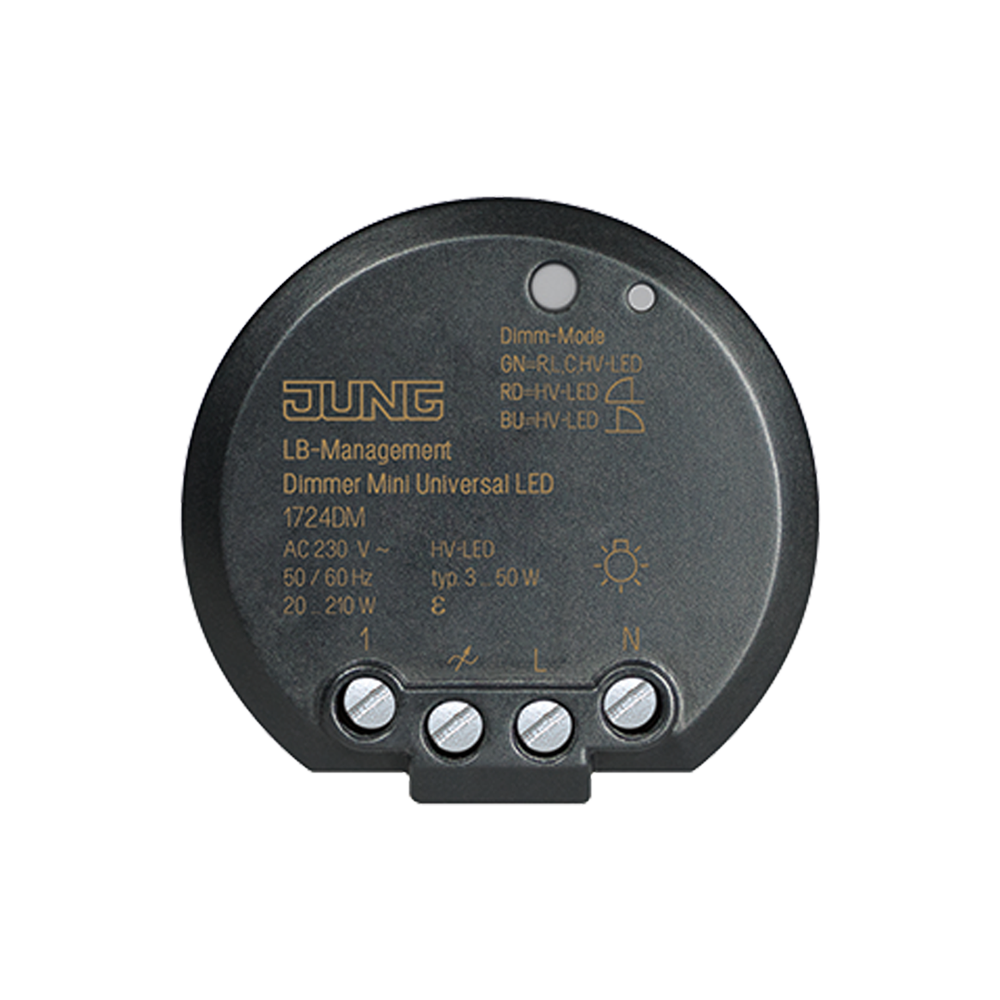

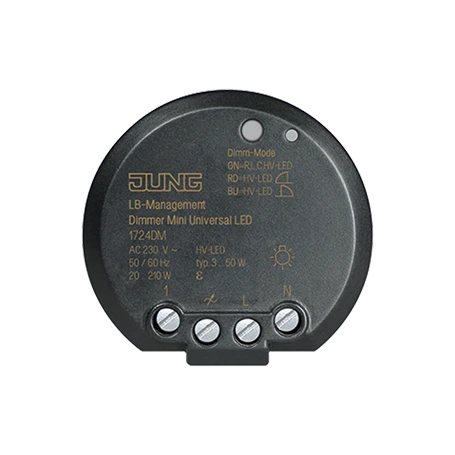

Dimmer mini universal LED, with satellite input
1724 DM
1724 DM
Or search directly in a category
| Article number: | 1724 DM |
|---|---|
| EAN/GTIN: | 4011377158733 |
| Approvals: | VDE |
| Rated voltage: | AC 230 V ~ |
| Mains frequency: | 50/60 Hz |
| Stand-by power: | approx. 0.3 W |
| Power loss: | approx. 2 W |
| Ambient temperature: | −5 ... +45 °C |
| Connected load at 25 °C | |
| Incandescent lamps: | 20 ... 210 W |
| HV halogen lamps: | 20 ... 210 W |
| Electronic transformers: | 20 ... 210 W |
| Electronic transformers with LV LED: | typical 20 ... 50 W |
| Inductive transformers: | 20 ... 210 VA |
| Inductive transformers with LV LED: | typical 20 ... 50 VA |
| Dimmable HV LED lamps: | typical 3 ... 50 W |
| Dimmable compact fluorescent lamps: | typical 3 ... 50 W |
| With setting "LED trailing edge phase control" the max. connection power for HV LED lamps and electronic transformers with LV LED doubles. | |
| Ohmic-capacitive: | 20 ... 210 W |
| Capacitive-inductive: | not permitted |
| Ohmic-inductive: | 20 ... 210 VA |
| Ohmic and HV LED: | typical 3 ... 50 W |
| Ohmic and CFL: | typical 3 ... 50 W |
| Amplifiers: | see instructions for amplifier |
| Connection | screw terminals |
| single wire: | 1 x 0.75 ... 2.5 mm² 2 x 0.75 ... 1.5 mm² |
| stranded without ferrule: | 1 x 1.0 ... 4.0 mm² 2 x 1.0 ... 2.5 mm² |
| stranded with ferrule: | 1 x 1.0 ... 2.5 mm² 2 x 1.0 ... 1.0 mm² |
| Number of satellite units | |
| Satellite insert 2-wire 1720 NE: | unlimited |
| Satellite insert 3-wire 1723 NE: | 10 |
| Rotary satellite insert 3-wire 1733 DNE: | 10 |
| Unlit installation buttons: | unlimited |
| Total length of satellite cable: | max. 100 m |
| Total length power cable: | max. 100 m |
| Dimensions (Ø x H): | 48 x 19.5 mm |
| Operating instructions | |
|---|---|
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 54 G |
| Length | 81 MM |
| Height | 40 MM |
| Width | 81 MM |
| Carton | |
| Packaging unit | 10 pc. |
| Weight | 0.655 KG |
| Length | 220 MM |
| Height | 87 MM |
| Width | 170 MM |
| Outer carton | |
| Packaging unit | 100 pc. |
| Weight | 6.967 KG |
| Length | 465 MM |
| Height | 207 MM |
| Width | 355 MM |
| Palette | |
| Packaging unit | 1200 pc. |
| Weight | 106.379 KG |
| Length | 1200 MM |
| Height | 1550 MM |
| Width | 800 MM |
