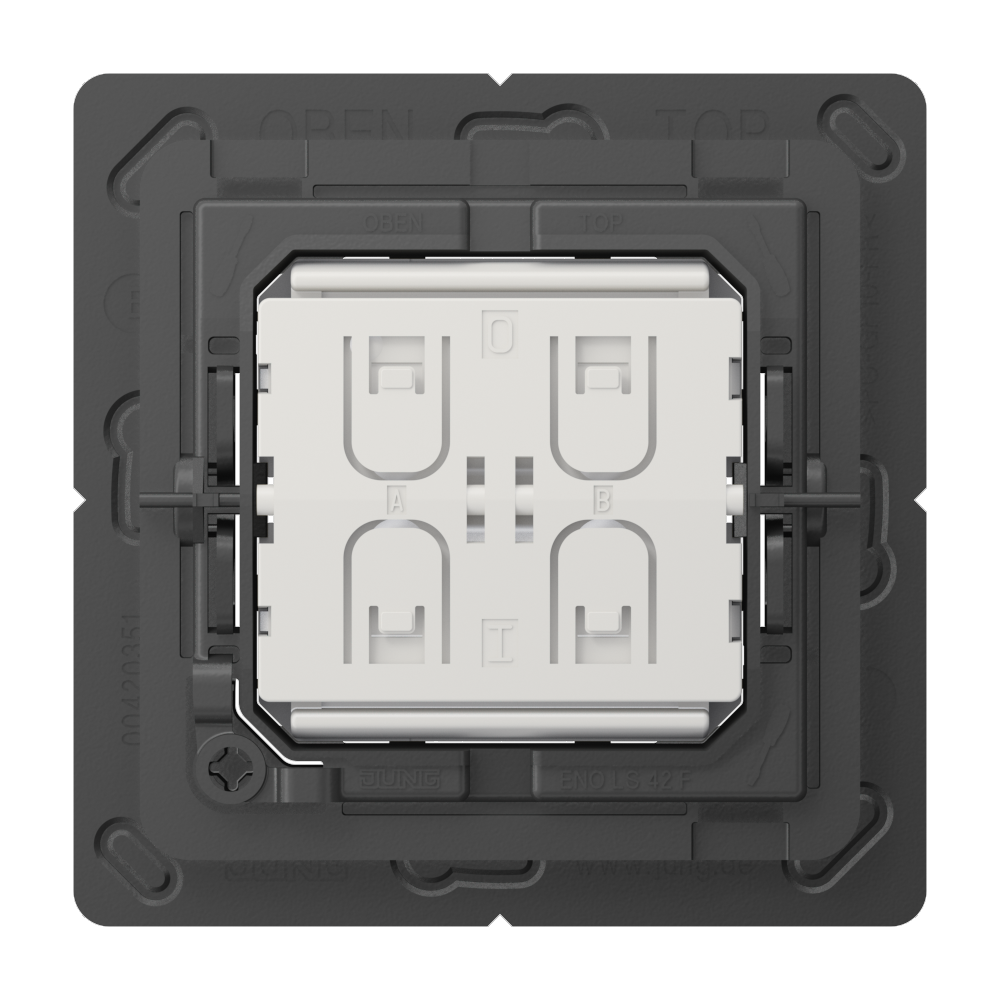

EnOcean module, for 2- and 4-channel applications, LS range
ENO LS 42 F
for LS range
(spare part)
Intended use
Product characteristics
(spare part)
Intended use
- Radio transmitter for the transmission of switching, dimming or shutter commands to radio receivers of the EnOcean radio system
- Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
Product characteristics
- Battery-free device without external power supply
- Transmitting energy is generated from mechanical energy of actuation (energy harvesting)
- Configuration interface: NFC Forum Type 2 Tag (ISO/IEC 14443 Part 2 + 3)
- Optional: Encrypted transmission with AES-128 and sequence counter
Read less...
Read more...
Information
| Article number: | ENO LS 42 F |
|---|---|
| EAN/GTIN: | 4011377052178 |
| Version: | for 2- and 4-channel applications |
Read less...
Read more...
Technical data
| Carrier frequency: | 868 MHz (ASK) |
| Transmission range | |
| in free field: | up to 300 m |
| Transmission range in buildings: | approx. 30 m |
| Transmitting power: | −1.9 dBm / 0.7 mW |
| Ambient temperature: | −5 ... +45 °C |
| Storage/transport temperature: | −25 ... +65 °C |
| Atmospheric humidity: | 0 ... 95 % (no condensation) |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.034 KG |
| Length | 70 MM |
| Height | 22 MM |
| Width | 70 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.064 KG |
| Length | 84 MM |
| Height | 42 MM |
| Width | 82 MM |
