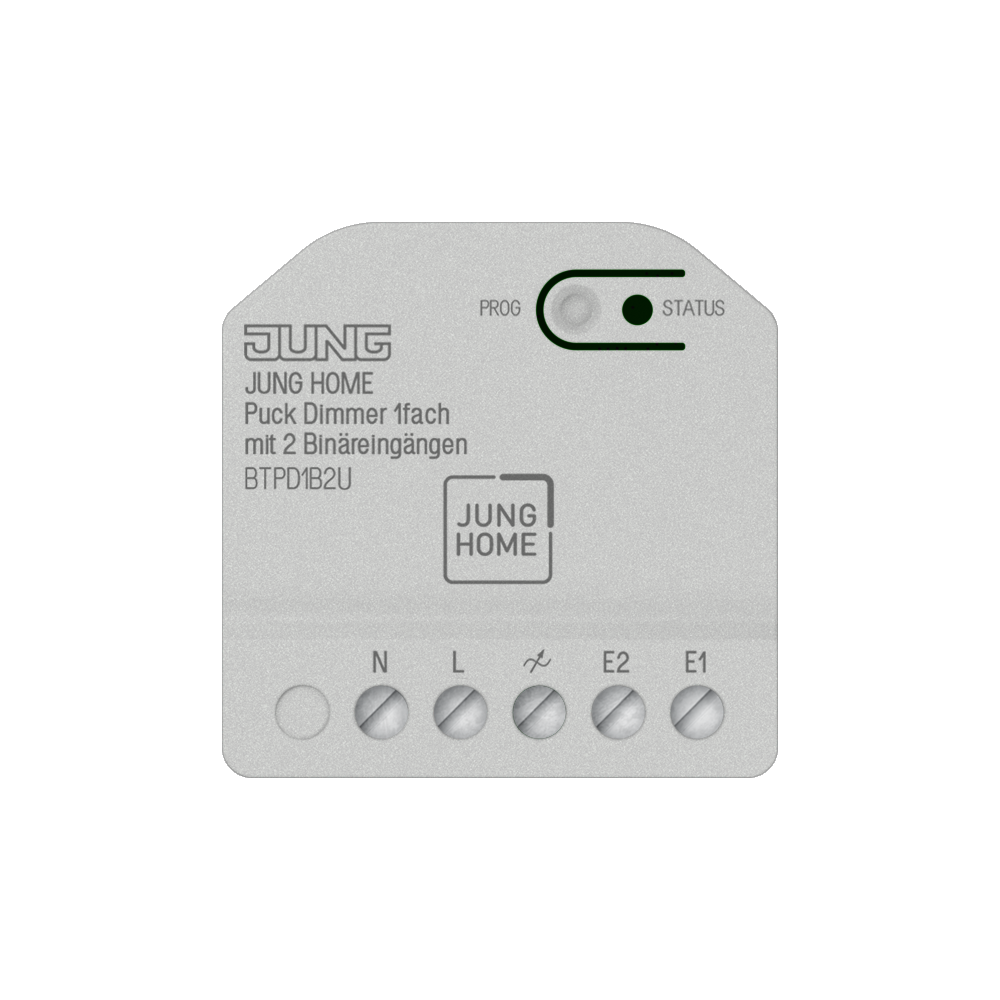

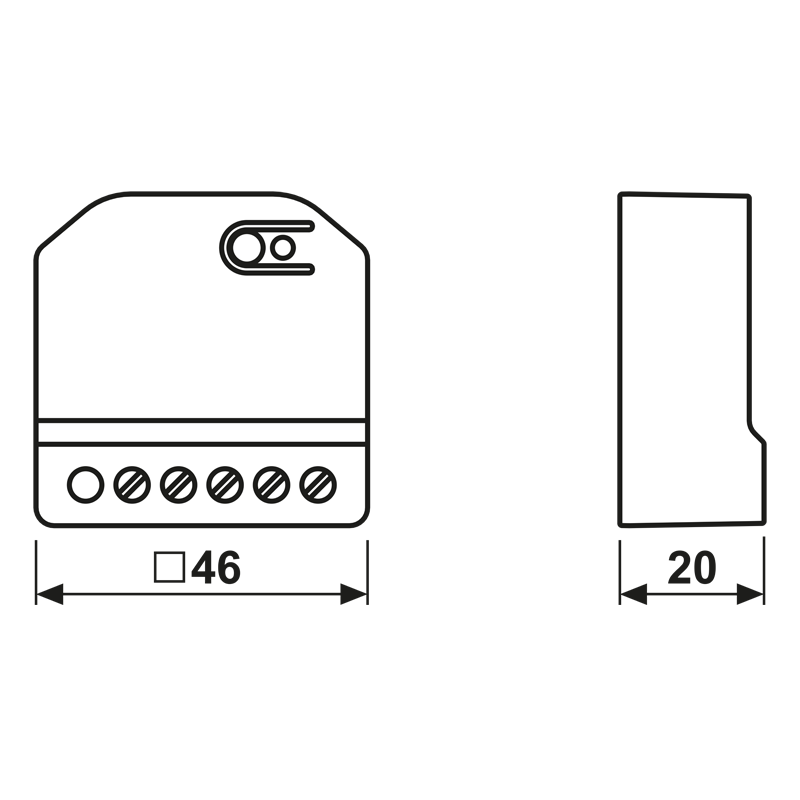

JUNG HOME Puck dimmer 1-gang with 2 binary inputs

BT P D1 B2 U

JUNG HOME Puck dimmer 1-gang with 2 binary inputs
arrow-slider
arrow-slider
  • JUNG HOME Puck dimmer 1-gang with 2 binary inputs
arrow-left-slim
arrow-right-slim
  • JUNG HOME Puck dimmer 1-gang with 2 binary inputs
BT P D1 B2 U
arrow-left-slim
arrow-right-slim
  • JUNG HOME Puck dimmer 1-gang with 2 binary inputs
Intended use
  • Manual switching and dimming of lighting
  • Operation via binary inputs of the JUNG HOME actuator, JUNG HOME push-button, JUNG HOME sensors and JUNG HOME app
  • Connection of devices (e.g. push-buttons, switches or weather sensors) to the binary inputs for triggering scenes, operating electrical loads, polling of statuses, etc.
  • Automatic switching and dimming of lighting. Requirement: at least one of the following devices is in the project (Bluetooth® Mesh network): JUNG HOME mini actuator, JUNG HOME socket, system insert with JUNG HOME push-button or JUNG HOME motion or presence detector, JUNG HOME room thermostat
  • Wireless linking with JUNG HOME system devices
  • Installation in flush box with dimensions according to DIN 49073
  • Ceiling installation in the mini housing built-in adapter, ref.-no.: FM-EBG

Product characteristics
  • Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
  • Free linking of the 2 binary inputs with JUNG HOME actuators (local or wireless)
  • Independent use of actuator functions and binary inputs
  • Multi-coloured status indicator and Prog button for commissioning
  • Disabling the Prog button
  • Including the load in areas (groups), central functions and scenes
  • Staircase lighting function (automatic switch-off) with switch-off warning
  • Run-on time, switch-on delay, switch-off delay
  • Disabling function and forced guidance: Continuous ON/OFF or ON/OFF for fixed time
  • Wind alarm via connection of weather sensors to binary inputs
  • Trigger the disabling function using binary inputs, e.g. lock-out protection with shutters and blinds, forced guidance, etc.
  • Maximum and minimum brightness adjustable
  • Switch-on with last brightness or fixed switch-on brightness
  • Device works according to the leading edge phase control or trailing edge phase control principle
  • Setting of the dimming principle suitable for the load via the JUNG HOME App
  • Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
  • Electronic over-temperature protection
  • Bluetooth® Mesh for fully encrypted wireless communication and repeater function
  • Can be updated using JUNG HOME app
Function if JUNG HOME mini actuator, JUNG HOME socket, system insert with JUNG HOME push-button, JUNG HOME motion or presence detector, or JUNG HOME room thermostat is included in the Bluetooth® Mesh network (project).
  • Up to 16 time programs
  • Time programs with sunrise or sunset (astro timer)
  • Activate/deactivate automatic functions using the JUNG HOME app
  • Automatic date and time update when connecting with mobile device
Read less... Read more...
new

Information

Article number: BT P D1 B2 U
EAN/GTIN: 4011377360044
Installation depth: 18 mm (20 mm in the terminal area)
Read less... Read more...

Technical data

Rated voltage:AC 230 V ~
Mains frequency:50/60 Hz
Input voltage:AC 230 V ~
Stand-by power:max. 0.35 W
Power loss:max. 2.3 W
Ambient temperature:−5 ... +45 °C
Storage temperature:−5 ... +45 °C
Transport temperature:−20 ... +70 °C
Relative humidity:20 ... 70 % (no condensation)
Connected load at 35 °C
Trailing edge phase control
Incandescent lamps:0 ... 300 W
HV halogen lamps:0 ... 300 W
Electronic transformers with LV halogen lamps:0 ... 300 W
Dimmable HV LED lamps:typical 0 ... 200 W
Electronic LED ballast with LED lamps:0 ... 200 W
Leading edge phase control
Incandescent lamps:0 ... 225 W
HV halogen lamps:0 ... 225 W
Dimmable HV LED lamps:typical 0 ... 80 W
Electronic LED ballast with LED lamps:0 ... 80 W
Reduction of load
for every 5 °C exceededing 35 °C:−10 %
for installation into wooden or hollow walls:−15 %
for installation into multiple combinations:−20 %
Cable length
Output cable:max. 100 m
Binary input:max. 50 m
Dimensions (W x H x D):46 x 46 x 20 mm
Installation depth:18 mm (20 mm in the terminal area)
Radio frequency:2402.0 ... 2480.0 MHz
Transmitting power:max. 10 mW (class 1.5)
Transmission range
in buildings:approx. 30 m
Read less... Read more...
Downloads
Show all downloads
Operating instructions
EN
Select language
Select language
DE
ES
FI
FR
IT
NL
NO
PT
RU
SE
ZH
Workbook
EN
Select language
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.059 KG
Length 82 MM
Height 45 MM
Width 82 MM
Carton
Packaging unit 10 pc.
Weight 0.688 KG
Length 235 MM
Height 92 MM
Width 175 MM
Outer carton
Packaging unit 100 pc.
Weight 7.12 KG
Length 460 MM
Height 245 MM
Width 360 MM
Palette
Packaging unit 2000 pc.
Weight 164.4 KG
Length 1200 MM
Height 1550 MM
Width 800 MM
Read less... Read more...

Additional items

FM-EBG

Mounting adapter for mini housing
Mounting adapter for mini housing
