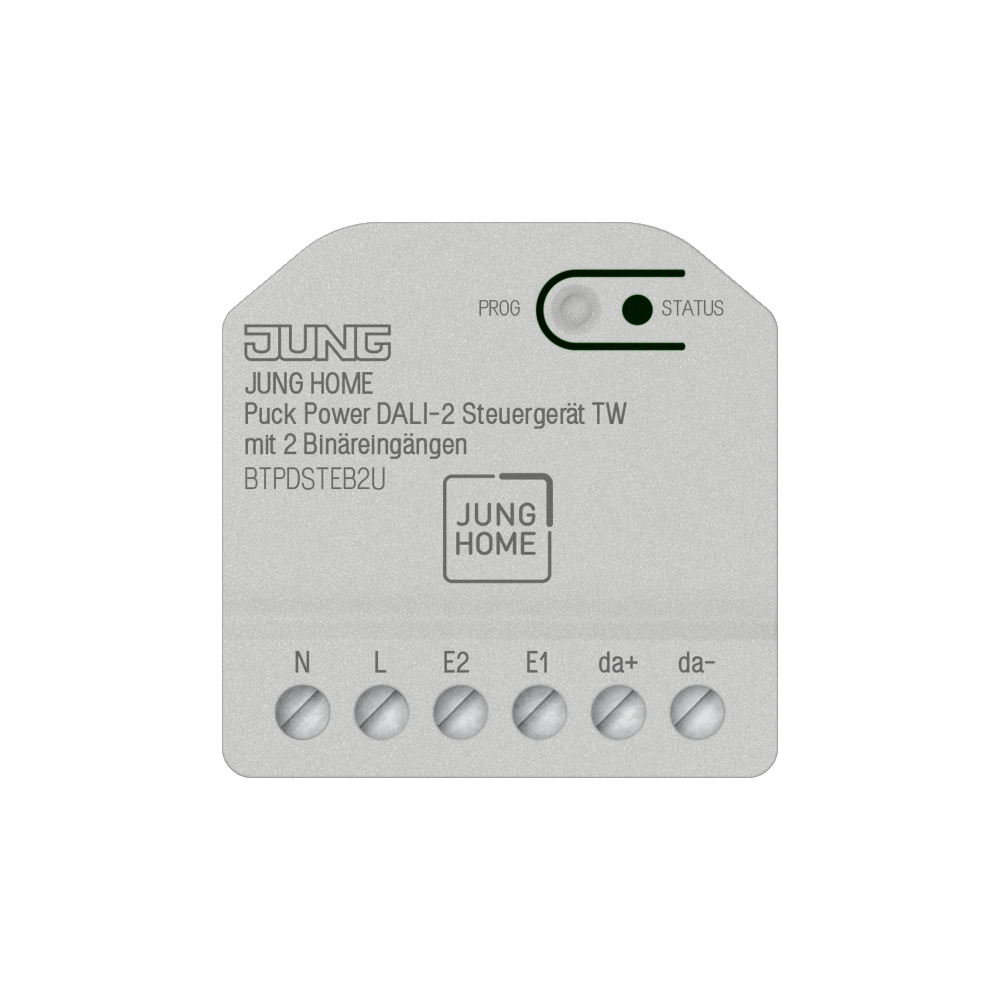

JUNG HOME Puck power DALI-2 controller TW with 2 binary inputs

BT P DSTE B2 U

JUNG HOME Puck power DALI-2 controller TW with 2 binary inputs
arrow-slider
arrow-slider
  • JUNG HOME Puck power DALI-2 controller TW with 2 binary inputs
arrow-left-slim
arrow-right-slim
  • JUNG HOME Puck power DALI-2 controller TW with 2 binary inputs
BT P DSTE B2 U
arrow-left-slim
arrow-right-slim
  • JUNG HOME Puck power DALI-2 controller TW with 2 binary inputs
Intended use
  • Switching and brightness setting for luminaires with DALI interface
  • Setting of colour temperature for luminaires with DALI Device Type 8 for tunable white acc. to IEC 62386-209
  • The device functions as a DALI-2 single-master and should not be combined with other DALI controllers
  • Operation via binary inputs of the JUNG HOME actuator, JUNG HOME push-button, JUNG HOME sensors and JUNG HOME app
  • Connection of devices (e.g. push-buttons, switches or weather sensors) to the binary inputs for triggering scenes, operating electrical loads, polling of statuses, etc.
  • Automatic switching and brightness setting. Requirement: at least one of the following devices is in the project (Bluetooth® Mesh network): JUNG HOME mini actuator, JUNG HOME socket, system insert with JUNG HOME push-button or JUNG HOME motion or presence detector, JUNG HOME room thermostat
  • Wireless linking with JUNG HOME system devices
  • Installation in flush box with dimensions according to DIN 49073
  • Ceiling installation in the mini housing built-in adapter, ref.-no.: FM-EBG

Product characteristics
  • Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
  • Free linking of the 2 binary inputs with JUNG HOME actuators (local or wireless)
  • Independent use of actuator functions and binary inputs
  • Multi-coloured status indicator and Prog button for commissioning
  • Disabling the Prog button
  • Including the load in areas (groups), central functions and scenes
  • Staircase lighting function (automatic switch-off) with switch-off warning
  • Run-on time, switch-on delay, switch-off delay
  • Disabling function and forced guidance: Continuous ON/OFF or ON/OFF for fixed time
  • Wind alarm via connection of weather sensors to binary inputs
  • Trigger the disabling function using binary inputs, e.g. lock-out protection with shutters and blinds, forced guidance, etc.
  • Maximum and minimum brightness adjustable
  • Switch-on with last brightness or fixed switch-on brightness
  • Device functions as single-master with broadcast commands
  • DALI power supply for DALI devices e.g. luminaires
  • Electronic overload protection of the DALI power supply by means of power reduction
  • Bluetooth® Mesh for fully encrypted wireless communication and repeater function
  • Can be updated using JUNG HOME app
Function if JUNG HOME mini actuator, JUNG HOME socket, system insert with JUNG HOME push-button, JUNG HOME motion or presence detector, or JUNG HOME room thermostat is included in the Bluetooth® Mesh network (project).
  • Up to 16 time programs
  • Time programs with sunrise or sunset (astro timer)
  • Activate/deactivate automatic functions using the JUNG HOME app
  • Automatic date and time update when connecting with mobile device
Read less... Read more...
new

Information

Article number: BT P DSTE B2 U
EAN/GTIN: 4011377360037
Installation depth: 18 mm (20 mm in the terminal area)
Read less... Read more...

Technical data

Rated voltage:AC 230 V ~
Mains frequency:50/60 Hz
Input voltage:AC 230 V ~
Power consumption:max. 4 W
Ambient temperature:−5 ... +45 °C
Storage temperature:−5 ... +45 °C
Transport temperature:−20 ... +70 °C
Relative humidity:20 ... 70 % (no condensation)
Cable length
Binary input:max. 10 m
DALI bus:300 m (1.5 mm²)
Dimensions (W x H x D):46 x 46 x 20 mm
Installation depth:18 mm (20 mm in the terminal area)
DALI
Rated voltage DALI:typical DC 17 V (128 mA)
Bus current:128 mA
Short-circuit current:max. 230 mA
Number of DALI devices:max. 64
Starting time:max. 20 s
Colour temperature setting:2,000 ... 10,000 K
Radio frequency:2402.0 ... 2480.0 MHz
Transmitting power:max. 10 mW (class 1.5)
Transmission range
in buildings:approx. 30 m
Read less... Read more...
Downloads
Show all downloads
Operating instructions
EN
Select language
Select language
DE
ES
FI
FR
IT
NL
NO
PT
RU
SE
ZH
Workbook
EN
Select language
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.065 KG
Length 82 MM
Height 45 MM
Width 82 MM
Carton
Packaging unit 10 pc.
Weight 0.748 KG
Length 235 MM
Height 92 MM
Width 175 MM
Outer carton
Packaging unit 100 pc.
Weight 7.72 KG
Length 460 MM
Height 245 MM
Width 360 MM
Palette
Packaging unit 2000 pc.
Weight 176.4 KG
Length 1200 MM
Height 1550 MM
Width 800 MM
