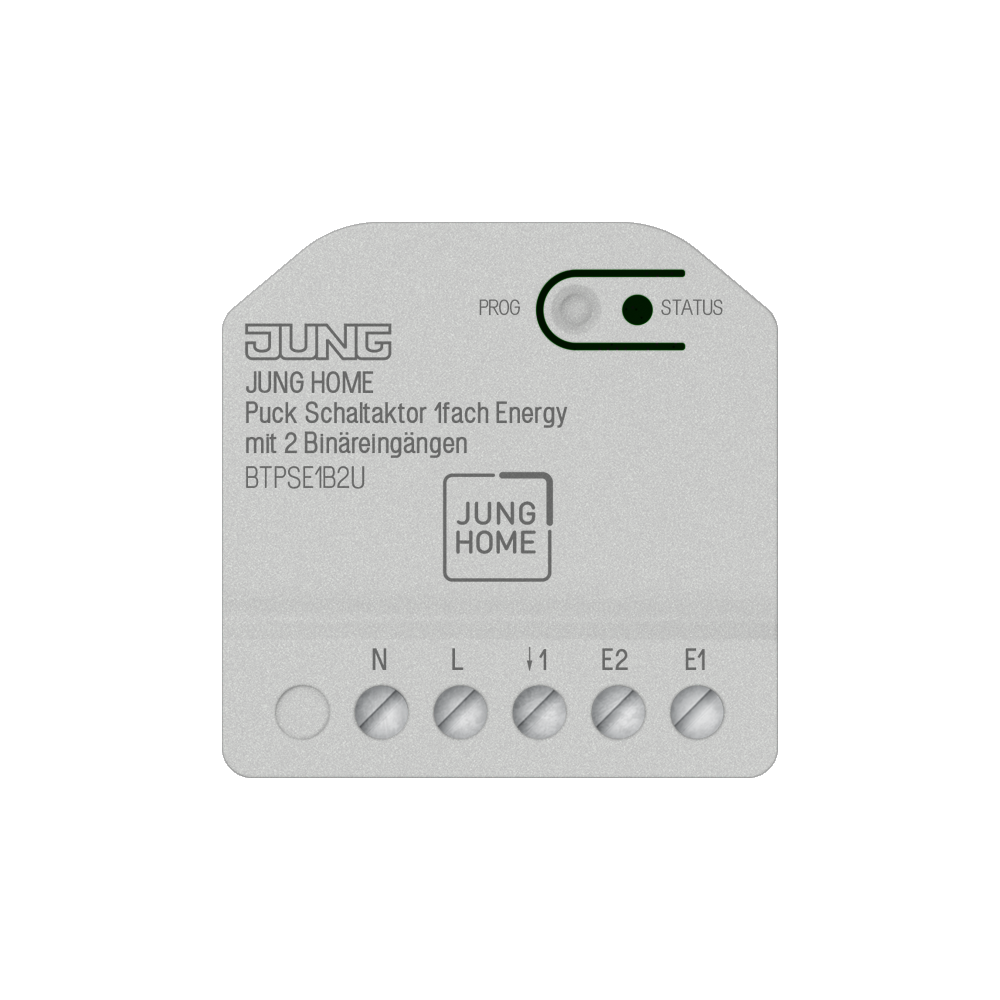

JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs

BT P SE1 B2 U

JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs
arrow-slider
arrow-slider
  • JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs
arrow-left-slim
arrow-right-slim
  • JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs
BT P SE1 B2 U
BPIK_Elektrogeraete_Ruecknahme
arrow-left-slim
arrow-right-slim
  • JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs
Intended use
  • Manual switching of lighting and common household devices
  • Power (W) and energy measurement (kWh) of the connected devices
  • Operation via binary inputs of the JUNG HOME actuator, JUNG HOME push-button, JUNG HOME sensors and JUNG HOME app
  • Connection of devices (e.g. push-buttons, switches or weather sensors) to the binary inputs for triggering scenes, operating electrical loads, polling of statuses, etc.
  • Automatic switching of lighting and common household devices. Requirement: at least one of the following devices is in the project (Bluetooth® Mesh network): JUNG HOME mini actuator, JUNG HOME socket, system insert with JUNG HOME push-button or JUNG HOME motion or presence detector, JUNG HOME room thermostat
  • Wireless linking with JUNG HOME system devices
  • Installation in flush box with dimensions according to DIN 49073
  • Ceiling installation in the mini housing built-in adapter, ref.-no.: FM-EBG

Product characteristics
  • Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
  • Free linking of the 2 binary inputs with JUNG HOME actuators (local or wireless)
  • Independent use of actuator functions and binary inputs
  • Multi-coloured status indicator and Prog button for commissioning
  • Disabling the Prog button
  • Including the load in areas (groups), central functions and scenes
  • Staircase lighting function (automatic switch-off) with switch-off warning
  • Run-on time, switch-on delay, switch-off delay
  • Disabling function and forced guidance: Continuous ON/OFF or ON/OFF for fixed time
  • Wind alarm via connection of weather sensors to binary inputs
  • Trigger the disabling function using binary inputs, e.g. lock-out protection with shutters and blinds, forced guidance, etc.
  • Power measurement from 0.1 to 3680 Watt and energy measurement (kWh)
  • Recording of the energy flow over previous 24 hours and previous 31 days (charting)
  • Operating hours counter, energy measurement period
  • Power Save function (switches off standby electrical loads)
  • Master/slave function (switches a wirelessly linked electrical load depending on the electrical load connected)
  • Overcurrent protection shutdown
  • Bluetooth® Mesh for fully encrypted wireless communication and repeater function
  • Can be updated using JUNG HOME app
Function if JUNG HOME mini actuator, JUNG HOME socket, system insert with JUNG HOME push-button, JUNG HOME motion or presence detector, or JUNG HOME room thermostat is included in the Bluetooth® Mesh network (project).
  • Up to 16 time programs
  • Time programs with sunrise or sunset (astro timer)
  • Activate/deactivate automatic functions using the JUNG HOME app
  • Automatic date and time update when connecting with mobile device
Read less... Read more...
new
BPIK_Elektrogeraete_Ruecknahme

Information

Article number: BT P SE1 B2 U
EAN/GTIN: 4011377360075
Installation depth: 18 mm (20 mm in the terminal area)
Read less... Read more...

Technical data

Rated voltage:AC 230 V ~
Mains frequency:50/60 Hz
Input voltage:AC 230 V ~
Stand-by power:max. 0.3 W
Power loss:max. 4 W
Ambient temperature:−5 ... +45 °C
Storage temperature:−5 ... +45 °C
Transport temperature:−25 ... +70 °C
Relative humidity:20 ... 70 % (no condensation)
Switching current at 35 °C
Ohmic:16 A (AC1)
Motors:6 A
Active power:-3680 ... 3680 W
Accuracy (power):1% ±0.1 W
Active energy:-999,999 ... 999,999 kWh
Connected load at 35 °C
Incandescent lamps:2300 W
HV halogen lamps:2300 W
Electronic transformers:1500 W
Inductive transformers:1000 VA
HV LED lamps:typical 400 W
Reduction of load
for every 5 °C exceededing 35 °C:−5 %
for installation into wooden or hollow walls:−15 %
for installation into multiple combinations:−20 %
Cable length
Output cable:max. 100 m
Binary input:max. 50 m
Dimensions (W x H x D):46 x 46 x 20 mm
Installation depth:18 mm (20 mm in the terminal area)
Radio frequency:2402.0 ... 2480.0 MHz
Transmitting power:max. 10 mW (class 1.5)
Transmission range
Transmission range in buildings:approx. 30 m
Read less... Read more...
